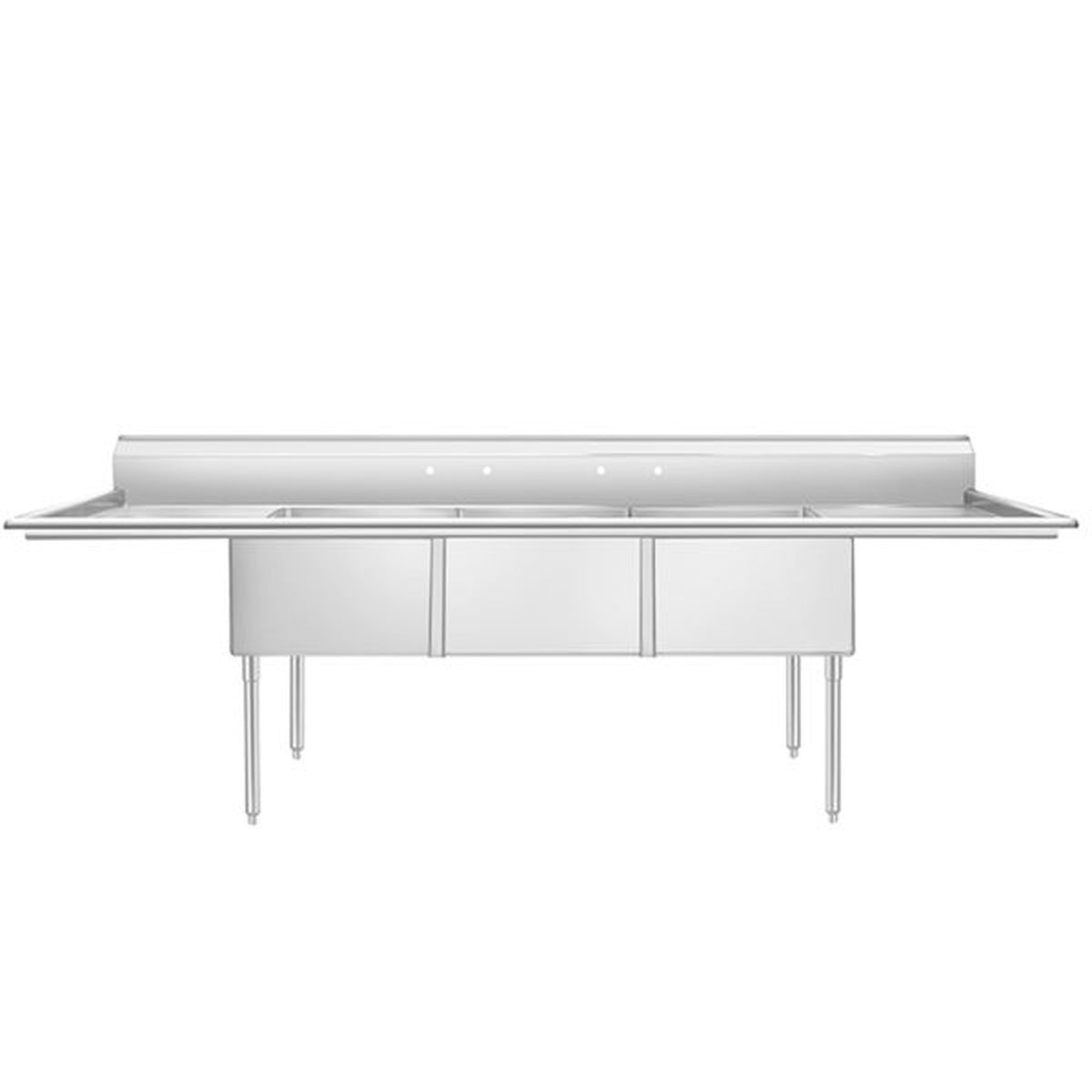

Atosa MixRite NSF Stainless Steel 3-Compartment Sink 90" with - SS1824F31D18

The Atosa SS1824F31D18 is a MixRite three compartment sink with left and right drainboards. It is built for restaurant dish rooms, prep areas and other foodservice operations that wash, rinse and sanitize by hand. The unit is 90" wide, 29-1/2" deep and 43-3/4" high overall. It has three 18" wide x 24" front-to-back x 14" deep bowls and an 18" drainboard on each side. The sink is formed from 18 gauge type 304 stainless steel and stands on stainless steel legs with adjustable bullet feet. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Three 18" x 24" x 14" deep bowls for a wash, rinse and sanitize setup
• 18" drainboards on both the left and right sides
• Drainboards are creased and angled to drain toward the bowls
• Formed from a single sheet of stainless steel, then fused and polished into one sanitary piece
• 18 gauge type 304 stainless steel sink
• Exposed welds are ground smooth and polished to a satin finish that blends with the surrounding surfaces
• Large-radius corners, both vertical and horizontal, so the bowls are easier to clean
• Stainless steel legs and sockets, with 1" adjustable bullet feet for leveling
• 3.5" drain baskets included
• NSF listed
• Faucets sold separately

Atosa SS1824F31D18 specifications

Brand	Atosa (MixRite line)
Model number	SS1824F31D18
Product type	Three compartment sink with left and right drainboards
Number of compartments	3
Bowl width (side to side)	18"
Bowl front-to-back	24"
Bowl depth	14"
Drainboards	Left and right, 18" each
Overall width	90"
Overall depth	29-1/2"
Overall height	43-3/4"
Leg height	22-1/2"
Material	Type 304 stainless steel
Gauge	18 gauge
Construction	One piece, formed from a single sheet, welds polished to a satin finish
Legs and feet	Stainless steel legs and sockets, 1" adjustable bullet feet
Drain	3.5" drain basket included
Faucets	Sold separately
Net weight	99.86 lb
Shipping weight	115.08 lb
Certifications	NSF
Warranty	90-day limited warranty on materials and workmanship

Frequently asked questions

How big are the bowls on the Atosa SS1824F31D18?

Each of the three bowls is 18" wide, 24" front to back and 14" deep. A half-size sheet pan (13" x 18") lies flat in a bowl. A full-size sheet pan (18" x 26") is longer than the 24" bowl and will not lie flat.

What utility connections does this sink need?

It needs only plumbing, with no electrical or gas connection. You will need a water supply for a faucet, which is sold separately, and a drain line to the bowl drains. The drains come with 3.5" drain baskets.

Will it fit through a standard doorway?

Yes, when carried lengthwise. The sink is 29-1/2" deep, which clears a 36" doorway. It is 43-3/4" high, well under an 80" door opening. The 90" width means it has to go through the door end first.

What certification does it have?

The SS1824F31D18 is NSF listed. That means it meets NSF sanitation standards for commercial food equipment, which health inspectors expect to see on warewashing sinks in commercial kitchens.

What warranty comes with it?

Atosa covers this sink with a 90-day limited warranty against defects in materials and workmanship. The 90 days run from the date the unit ships from Atosa. Coverage is for the original owner only and cannot be transferred. You need proof of purchase, and claims go directly to Atosa with the model number, serial number, installation date and details of the defect. The warranty does not cover alteration, neglect, abuse, misuse, accidents, damage during transit or installation, fire, flood or acts of God.

How does it differ from other Atosa three compartment sinks?

The SS1818D31D18 is the same 90" width but has smaller 18" x 18" x 12" bowls and is 23-1/2" deep. The SS2424F31D24 has 24" x 24" x 14" bowls and 24" drainboards and is 120" wide. The SS2424F31N has 24" x 24" x 14" bowls, no drainboards and is 77" wide. All of these are 18 gauge 304 stainless steel with 22-1/2" legs.

What is it made of and how do you clean it?

It is 18 gauge type 304 stainless steel, formed into one piece with welds ground and polished smooth. The large-radius corners in the bowls leave fewer seams and tight corners where food soil can collect, so the bowls are easier to clean and sanitize.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
