Atosa Refrigerated Chef Base Stainless Steel 2-Drawer 48" - 7.7 Cu. - MGF8450GR

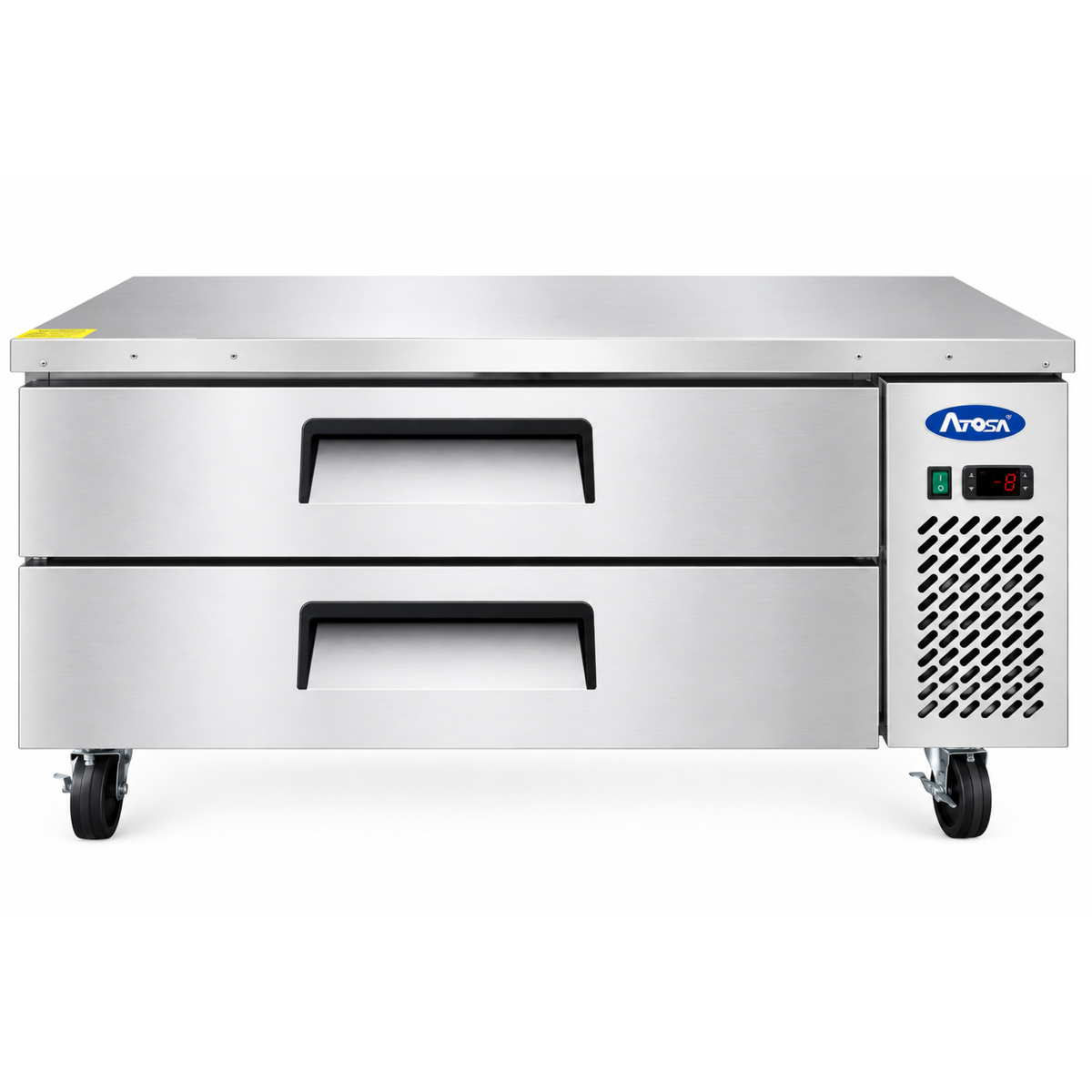

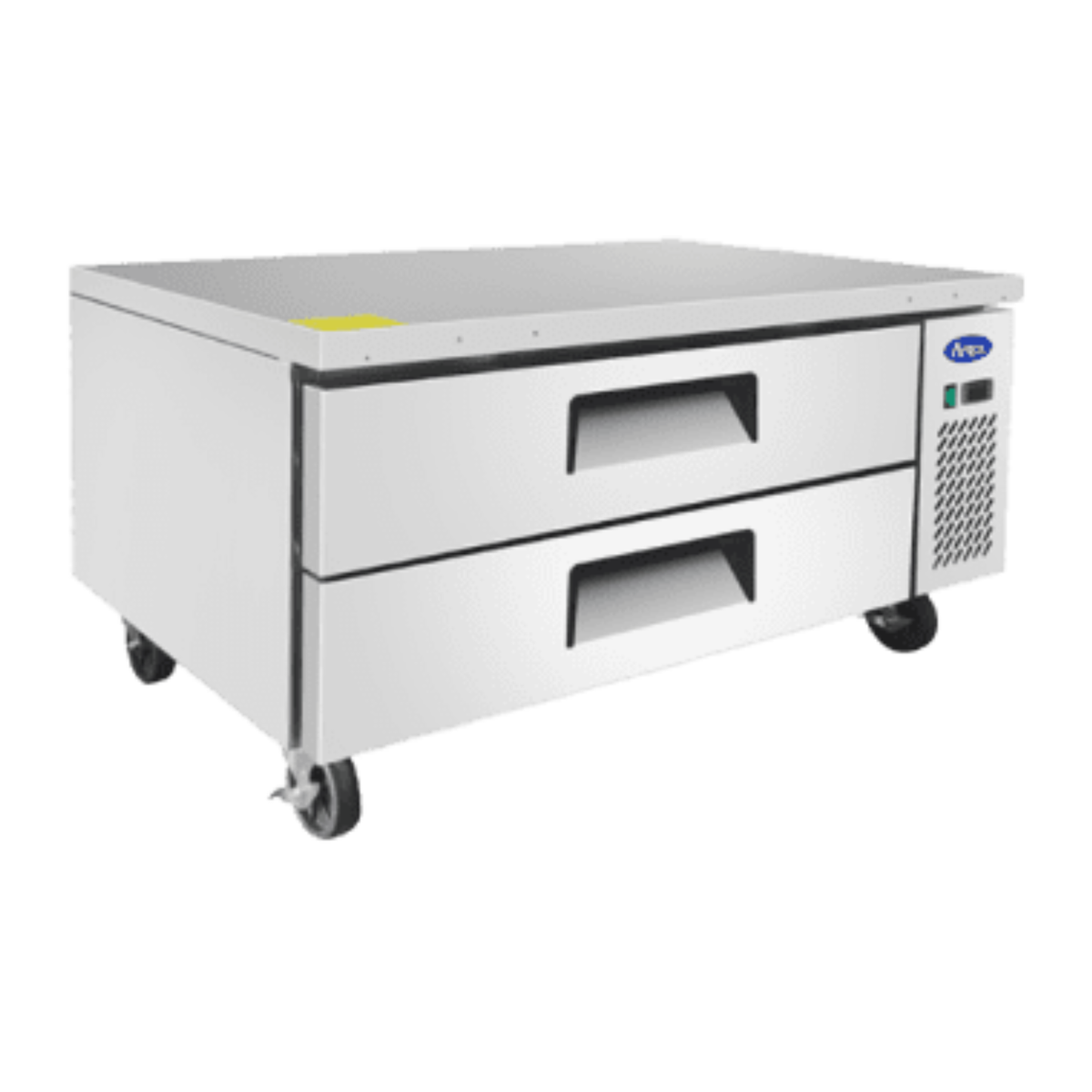

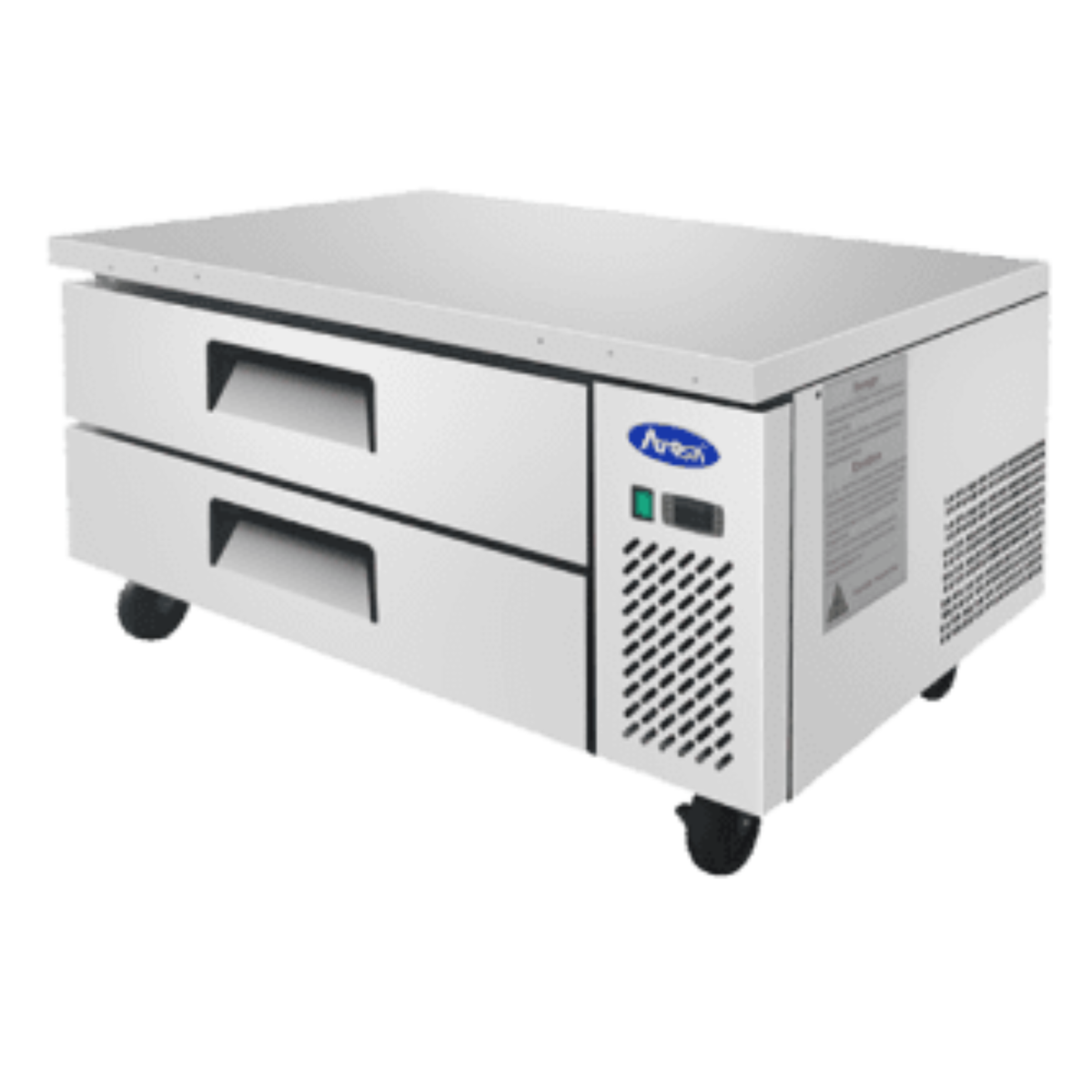

The Atosa MGF8450GR is a 48" two-drawer refrigerated chef base for commercial cooking lines that need cold storage directly under griddles, charbroilers, ranges or other countertop equipment. It measures 48-2/5" wide by 33" deep by 26-3/5" high and holds 7.7 cu. ft. at 35°F to 38°F. The side-mounted, self-contained system runs on R290 refrigerant with a 1/7 HP compressor and plugs into a standard 115V outlet using a NEMA 5-15P plug, drawing 2.3 A. The cabinet is stainless steel inside and out, with a one-piece reinforced stainless steel top built to carry countertop equipment. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Two self-closing drawers with recessed handles and magnetic drawer gaskets

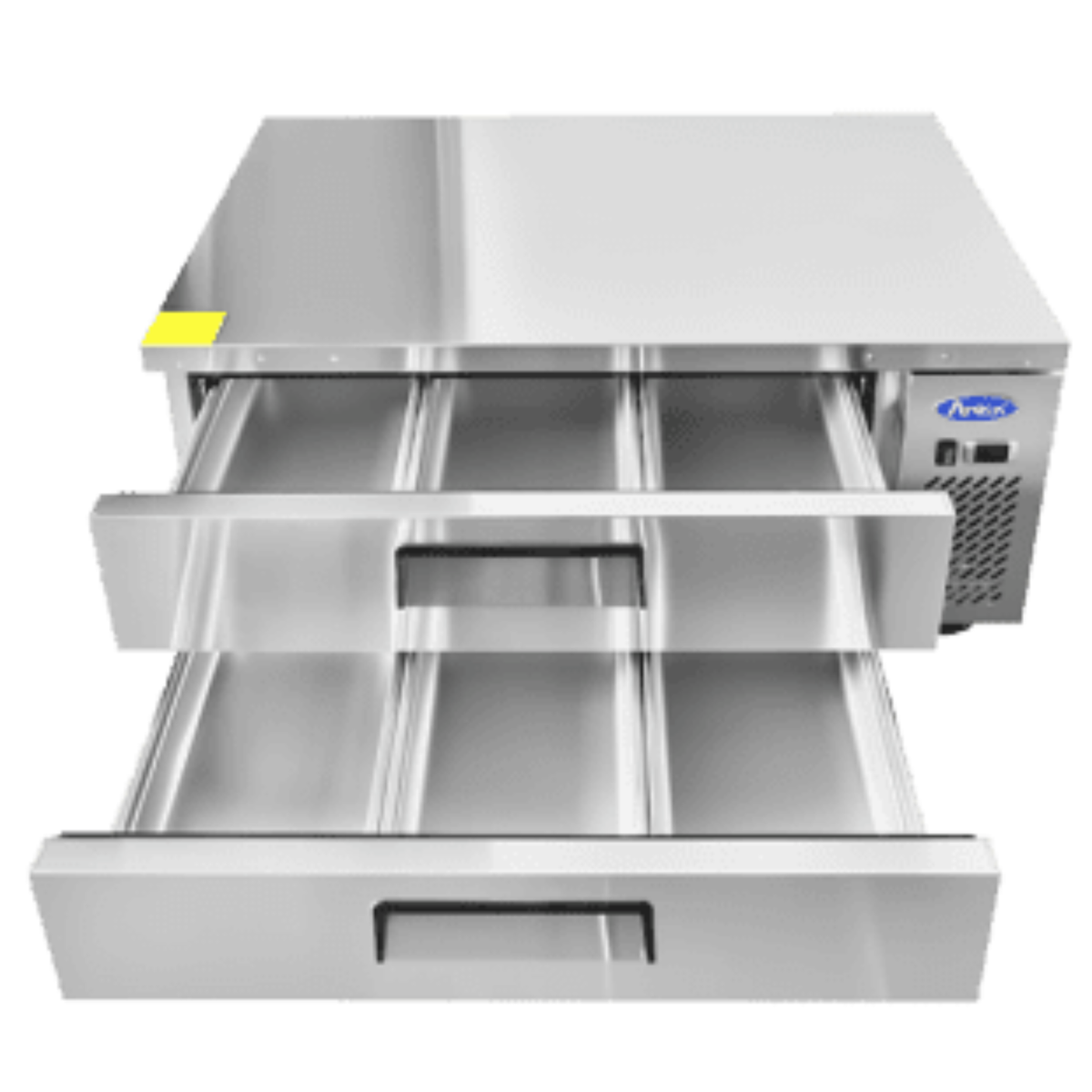

• Comes with four 12" x 20" and six 1/6-size stainless steel pans, all 6" deep
• Electronic temperature controller holds 35°F to 38°F
• Heavy-duty stainless steel drawer slides and rollers
• One-piece heavy-duty reinforced stainless steel top supports countertop cooking equipment
• Side-mounted, self-contained refrigeration with R290 hydrocarbon refrigerant
• ENERGY STAR certified, rated at 1.36 kWh per 24 hours
• Four pre-installed 5" swivel casters, each rated for over 250 lb, with brakes on two
• Corner guards and pull-out handles included

Atosa MGF8450GR specifications

Brand	Atosa
Model number	MGF8450GR
Product type	Refrigerated chef base
Sections / drawers	1 section, 2 drawers
Capacity	7.7 cu. ft.
Pans included	(4) 12" x 20" and (6) 1/6-size, 6" deep, stainless steel
Exterior width	48-2/5"
Exterior depth	33"
Exterior height	26-3/5"
Temperature range	35°F to 38°F
Controller	Electronic
Refrigeration	Self-contained, side-mounted
Refrigerant	R290
Compressor	1/7 HP
Electrical	115 V / 60 Hz / 1-phase, 2.3 A
Plug	NEMA 5-15P (15 A, 125 V)
Energy use	1.36 kWh per 24 hours
Exterior material	Stainless steel, one-piece reinforced stainless steel top
Interior material	Stainless steel
Casters	(4) 5" pre-installed swivel casters, 2 with brakes
Net weight	220 lb
Shipping weight	258 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation, ENERGY STAR
Warranty	3 years parts and labor, 5 years compressor

Frequently asked questions

What outlet does the Atosa MGF8450GR need?

It needs a standard grounded 115V, 15 A outlet (NEMA 5-15R), since it ships with a cord and NEMA 5-15P plug. The unit draws 2.3 A on 115 V / 60 Hz / single phase.

Is the MGF8450GR a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds 35°F to 38°F, so it is suited to proteins, produce, dairy and sauces, not frozen product.

How much does it hold?

It holds 7.7 cu. ft. and comes with four 12" x 20" pans and six 1/6-size pans, all 6" deep stainless steel, split across the two drawers.

Will it fit through a standard doorway?

Yes. At 33" deep it fits through a 36" doorway when moved sideways, and at 26-3/5" high there is no height concern. The 48-2/5" width does not fit through a 36" doorway head-on.

Can I put cooking equipment on top?

Yes. The one-piece reinforced stainless steel top is made to carry countertop equipment such as griddles, charbroilers and hot plates, and each of the four casters is rated for over 250 lb.

What certifications does it have?

It is cETLus listed to UL 471 and CSA C22.2 No. 120 for electrical safety in the US and Canada, ETL Sanitation listed for commercial food service, and ENERGY STAR certified at 1.36 kWh per 24 hours. Health inspectors and utility rebate programs commonly look for these listings.

What warranty comes with it?

Atosa covers parts and labor for 3 years and the sealed compressor for 2 more years, for 5 years total from original installation. The added compressor coverage applies only to sealed compressor parts. It does not cover the cabinet, finish, temperature control, refrigerant, fan assembly or other electrical parts. The warranty applies only to the original purchaser and does not cover damage from alteration, neglect, abuse, misuse, accidents, or damage during transit or installation.

How does it compare with the MGF8448GR and MGF8451GR?

The MGF8450GR sits in the middle of the line. The MGF8448GR is 35-9/16" wide with 4.7 cu. ft. and takes two 12" x 20" plus six 1/6-size pans. The MGF8451GR is 52" wide with 8.4 cu. ft. and takes six 12" x 20" pans. All three have two drawers and share the 33" depth, 26-3/5" height, 1/7 HP compressor and 2.3 A draw.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
