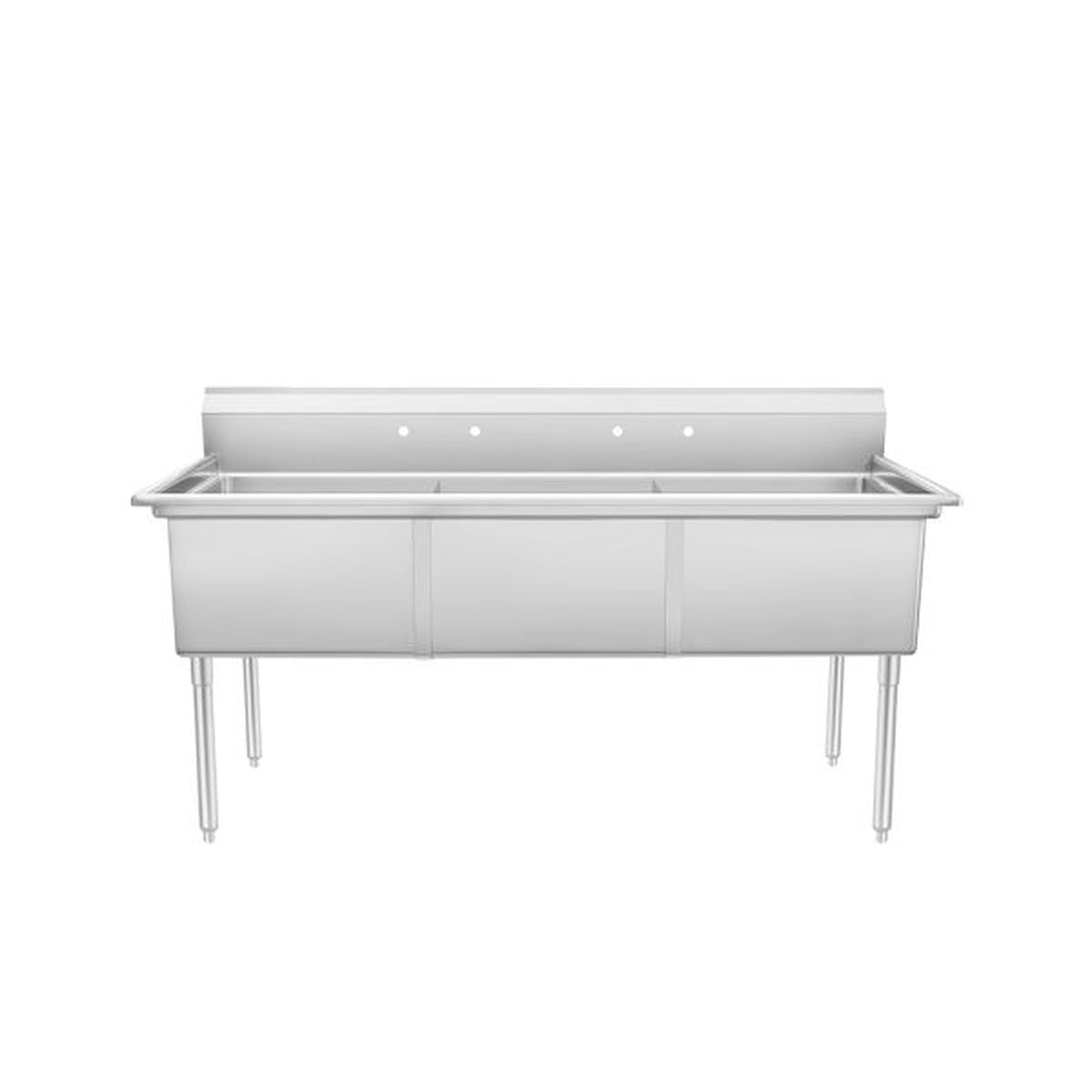

Atosa Three Compartment Sink 18 Ga 304 Stainless Steel NSF 77" - No SS2424F31N

The Atosa SS2424F31N is a commercial three compartment sink for wash, rinse and sanitize stations in restaurants, bars, commissaries and institutional kitchens. It has three 24" x 24" x 14" deep bowls and no drainboards, so the overall size is 77" wide, 29-1/2" deep and 43-3/4" high. The sink is 18 gauge type 304 stainless steel, formed from a single sheet into one seamless unit, and stands on stainless steel legs with 1" adjustable bullet feet. It is NSF approved and comes with a 3.5" drain basket. Faucets are sold separately. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Three 24" wide x 24" front-to-back x 14" deep compartments for manual warewashing
• No drainboards, which keeps the overall width to 77" for a sink with 24" bowls
• 18 gauge type 304 stainless steel sink
• Formed from a single sheet, then fused and polished into one sanitary unit
• Exposed welds are ground smooth and polished to a satin finish
• Large radius on all corners, both vertical and horizontal, for easier cleaning
• Stainless steel legs and sockets with 1" adjustable bullet feet for leveling
• 3.5" drain basket included
• NSF approved for commercial food service
• Optional leg cross bar pair, part number 7020201209210, made for sinks with 24" deep bowls

Atosa SS2424F31N specifications

Brand	Atosa
Model number	SS2424F31N
Product type	Three compartment sink, no drainboards
Number of compartments	3
Compartment size	24" width x 24" front-to-back depth x 14" deep
Drainboards	None
Overall width	77"
Overall depth	29-1/2"
Overall height	43-3/4"
Sink material	18 gauge type 304 stainless steel
Construction	Single-sheet one-piece sink, welds ground and polished to a satin finish
Legs	Stainless steel legs and sockets, 22-1/2" leg size
Feet	1" adjustable bullet feet
Drain	3.5" drain basket included
Faucet	Not included, sold separately
Optional accessory	Leg cross bar (pair), part number 7020201209210
Net weight	100 lb
Gross (shipping) weight	115 lb
Certifications	NSF
Warranty	90-day limited warranty on workmanship

Frequently asked questions

What are the overall dimensions of the Atosa SS2424F31N?

The SS2424F31N is 77" wide, 29-1/2" deep and 43-3/4" high overall. Each of the three compartments is 24" wide, 24" front to back and 14" deep.

Will it fit through a standard doorway?

Yes, if you carry it through on its side. At 29-1/2" deep it is narrower than a 36" doorway, and at 43-3/4" high it is well under an 80" door opening. You can't carry it through flat, because the 77" width has to be turned on edge.

Does the SS2424F31N come with a faucet?

No, the faucet is sold separately. The sink comes with a 3.5" drain basket. Check your faucet choice and plumbing rough-in against the installation site before you install.

Does this sink have drainboards?

No, the SS2424F31N has no drainboards. If you need space to air-dry dishes, plan for drainboards, drying racks or stainless steel work tables next to the sink. If you want drainboards built in, choose the SS2424F31D24 instead.

Is the Atosa SS2424F31N NSF certified?

Yes, Atosa lists the SS2424F31N as NSF approved. NSF is an independent third-party body that certifies equipment against public health and sanitation standards. Health inspectors look for NSF certification on commercial kitchen equipment.

What warranty comes with it?

Atosa gives the SS2424F31N a 90-day limited warranty against defects in materials and workmanship. The 90 days run from the date the sink ships from Atosa. The warranty covers the original owner only and can't be transferred. If a defect is confirmed after inspection, Atosa will replace the product at its discretion. The warranty does not cover:

• plastic and non-metallic synthetic parts
• damage from alteration, neglect, abuse, misuse or accident
• damage during transit or installation
• fire and acts of God

Make claims directly to Atosa with the model number, serial number, proof of purchase and installation date.

What accessories are available?

Atosa offers a leg cross bar pair, part number 7020201209210, for sinks with 24" deep bowls like this one.

How does the SS2424F31N compare with other Atosa three compartment sinks?

The SS2424F31N has the same 24" x 24" x 14" bowls as the SS2424F31D24 but leaves off the drainboards. That makes it 77" wide instead of 120". The SS2424F31D24 has a 24" drainboard on each side. The SS1824F31D18 has smaller 18" x 24" x 14" bowls and an 18" drainboard on each side, for a 90" overall width. The SS1818D31D18 has 18" x 18" x 12" bowls.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
