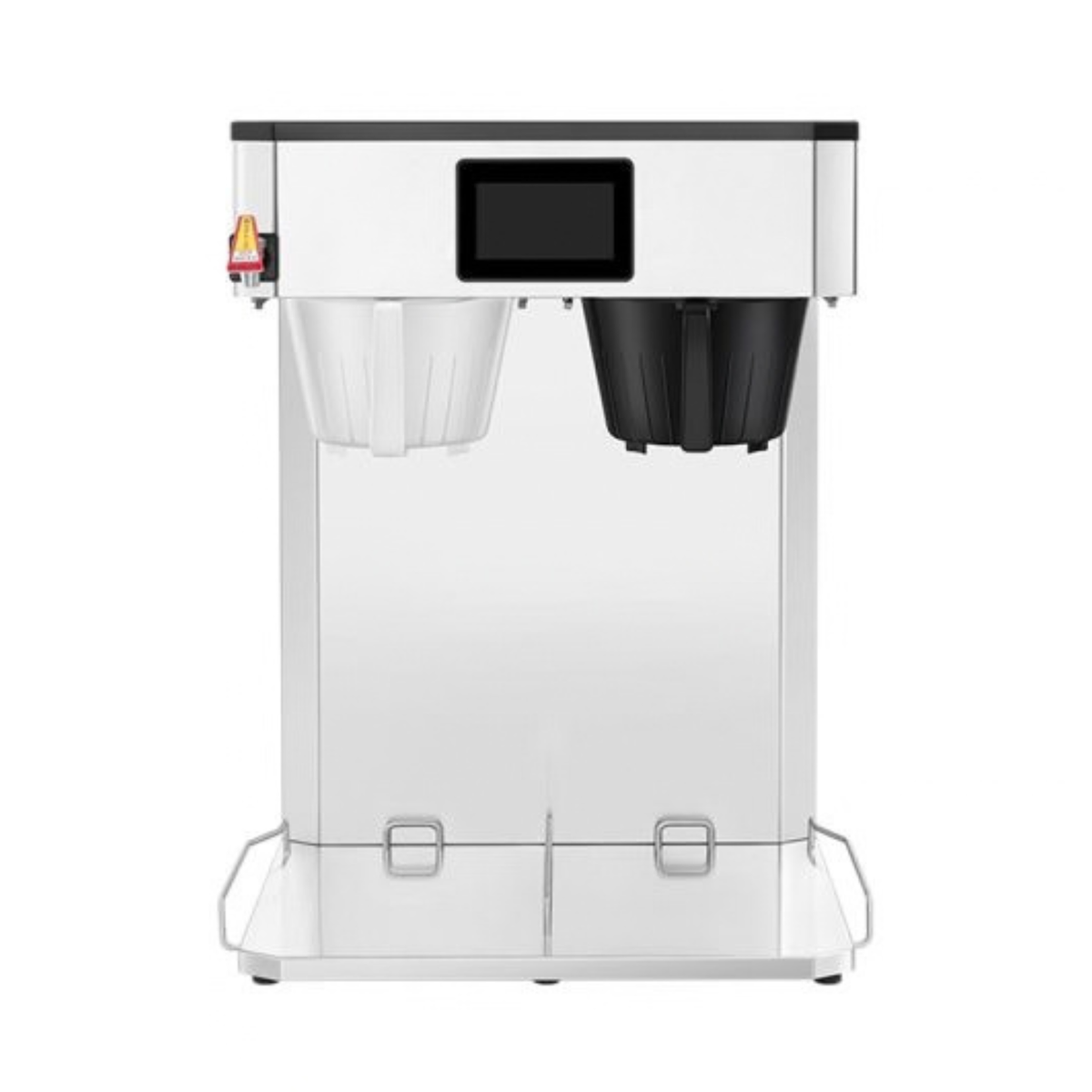

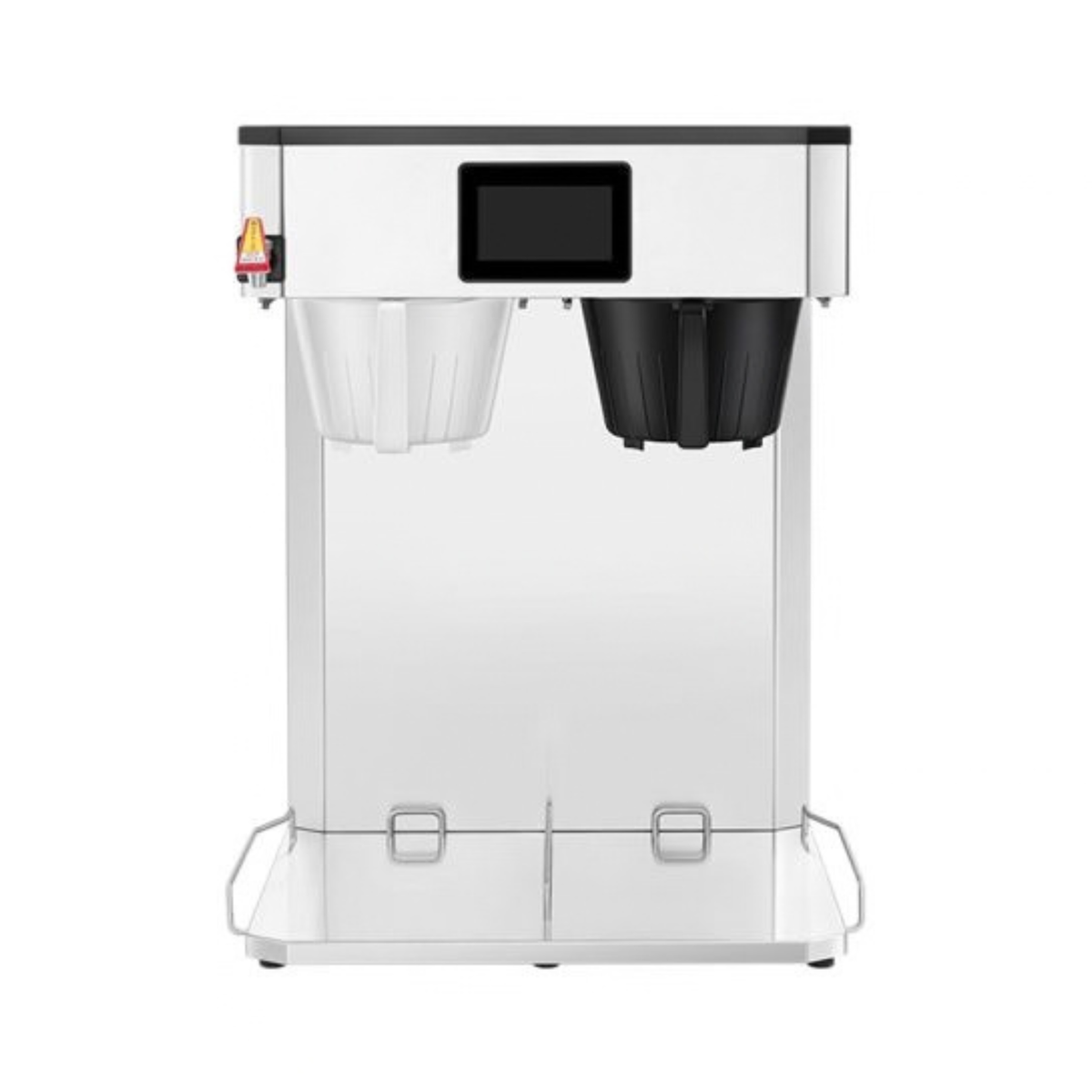

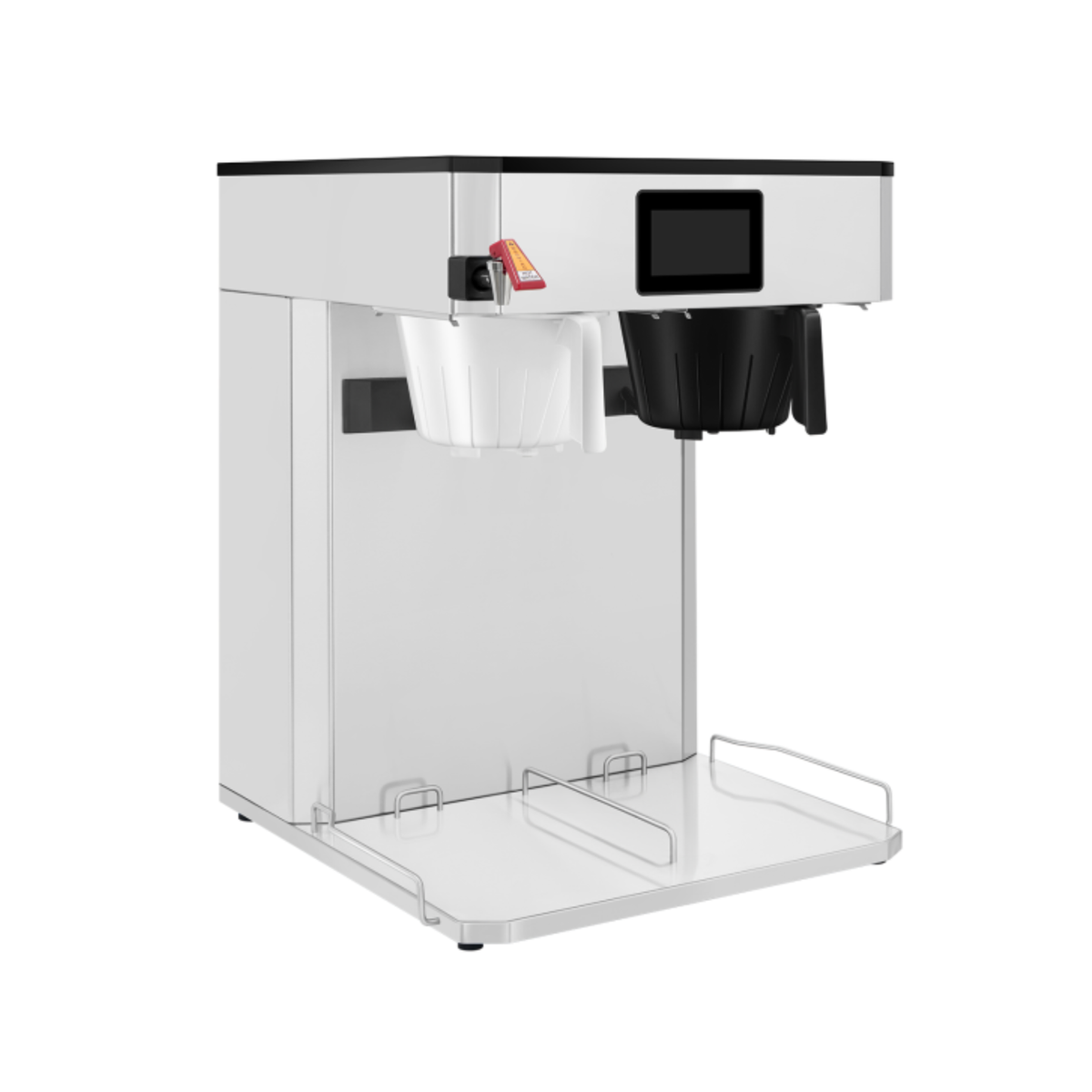

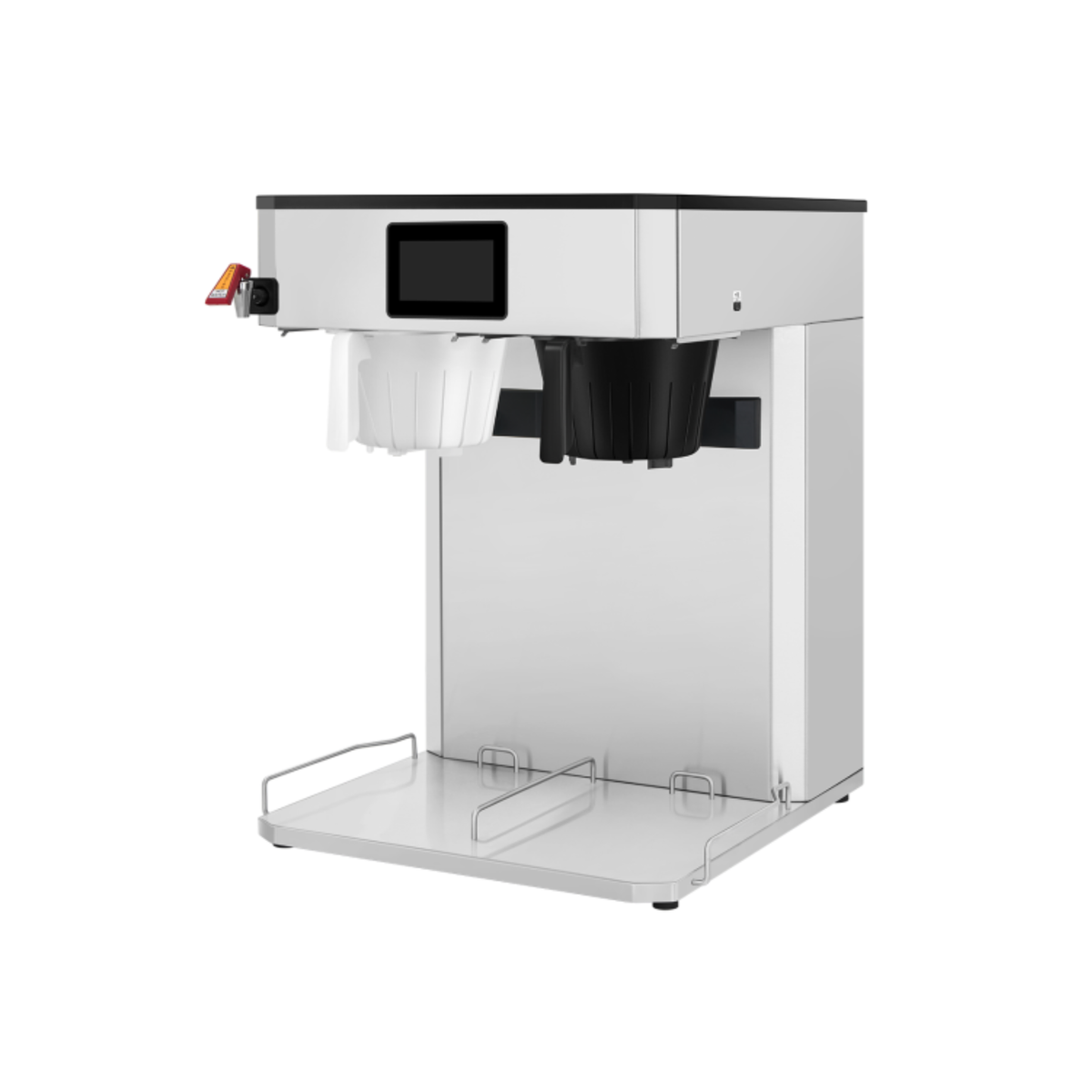

Atosa Twin Coffee & Tea Brewer Stainless Steel Low Profile - Dual - CB3L021

The Atosa CB3L021 is a short (low-profile) twin coffee and tea brewer for cafes, diners, convenience stores, offices and buffet lines that need two brew stations on one countertop footprint. The unit measures 24-5/8" wide by 26" deep by 30-3/4" high, has a rated capacity of 3 gal (11.36 L), and brews up to 160 cups (12 gallons) per hour. It is field adjustable between 120V and 208-240V, 60 Hz, single phase, and draws 1440W at 120V or 2180W to 2880W at 208-240V. It connects to a plumbed water line for automatic fill and is built with a stainless steel body. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Two independent brew stations brew coffee or tea into separate servers or dispensers.
• Brews up to 160 cups (12 gallons) per hour.
• Field-adjustable dual voltage: runs on 120V or 208-240V, 60 Hz, single phase.
• 5" color touchscreen with programmable brew recipes and digital controls.
• Sprayhead brewing with pre-infusion and pulse brew settings.
• USB programming loads recipes and settings.
• Energy-saver mode and a built-in brew counter.
• Hot water dispenser for tea, oatmeal and other hot water uses.
• Short height fits standard 1 to 1.5 gal coffee servers and larger tea dispensers.
• Comes with a 3/8" O.D. push-to-connect x 3/4" FNPT water inlet connector and 3/8" O.D. tubing.

Atosa CB3L021 specifications

Brand	Atosa
Model number	CB3L021
Product type	Coffee and tea brewer, short, twin
Brew stations	2
Rated capacity	3 gal (11.36 L)
Brew capacity	Up to 160 cups (12 gallons) per hour
Estimated hot water recovery	3.0 to 3.7 gal per hour at 1440W; 4.6 to 7.4 gal per hour at 2180W to 2880W
Exterior width	24-5/8"
Exterior depth	26"
Exterior height	30-3/4"
Fill type	Automatic fill, plumbed
Water inlet	3/4" MNPT
Water pressure	7.3 to 87 psi (0.05 to 0.6 MPa)
Included water fittings	3/8" O.D. push-to-connect x 3/4" FNPT inlet connector, 3/8" O.D. tubing
Electrical, 120V setting	120V / 60 Hz / 1 phase, 1440W, 12 A
Electrical, 208-240V setting	208-240V / 60 Hz / 1 phase, 2180W to 2880W, 10.4 to 12 A
Plug	NEMA L14-20P standard; NEMA 5-15P optional
Controls	5" color touchscreen, programmable recipes, USB programming
Brewing functions	Sprayhead, pre-infusion, pulse brew, energy-saver mode, brew counter
Hot water dispenser	Yes
Server compatibility	Standard 1 to 1.5 gal coffee servers and larger tea dispensers
Exterior material	Stainless steel
Weight	72 lb
Certifications	ETL Listed, cETLus, ETL Sanitation

Frequently asked questions

What electrical connection does the Atosa CB3L021 need?

As shipped, the CB3L021 has a NEMA L14-20P locking plug for 208-240V, 60 Hz, single phase, where it draws 2180W to 2880W at 10.4 to 12 A. You need a matching NEMA L14-20R receptacle. A NEMA 5-15P plug for 120V operation is available as an option. At 120V the unit draws 1440W at 12 A.

Can the CB3L021 run on 120V?

Yes. The voltage can be switched in the field between 120V and 208-240V. On 120V the heating power drops to 1440W, so hot water recovery falls to about 3.0 to 3.7 gal per hour, compared with 4.6 to 7.4 gal per hour on 208-240V. For high-volume service, use the 208-240V setting.

What water connection does it require?

The brewer needs a plumbed cold water line to its 3/4" MNPT inlet, with supply pressure between 7.3 and 87 psi (0.05 to 0.6 MPa). A 3/8" O.D. push-to-connect x 3/4" FNPT inlet connector and 3/8" O.D. tubing come with it.

How much coffee does the CB3L021 brew per hour?

It brews up to 160 cups (12 gallons) per hour across its two brew stations. Each station runs independently, so you can brew coffee on one side and tea on the other.

What servers and tea dispensers fit under the CB3L021?

It fits standard 1 to 1.5 gal coffee servers and larger tea dispensers. Atosa's matching servers for the short brewers are the 1.5 gal CD-15-L, CD-15-L-WS, CD-15-NL and CD-15-NL-WS coffee dispensers. The matching tea dispensers are the 3 gal TD-3L-ND and the 5 gal TD-5L-ND.

What certifications does the CB3L021 have?

The brewer is ETL Listed, cETLus Listed and ETL Sanitation certified. ETL and cETLus listing means it meets US and Canadian electrical safety standards. ETL Sanitation means it meets food equipment sanitation standards, which health inspectors look for in commercial kitchens.

How does the CB3L021 differ from the CB3L011, CB3T021 and CB3T011?

The CB3L021 is the short twin model: 24-5/8" wide, 30-3/4" high, with a 3 gal rated capacity and an L14-20P plug as standard. The CB3L011 is the short single-station version: 14-5/8" wide, 1 gal capacity, with a NEMA 5-15P plug as standard. The CB3T021 is the tall twin: 24-3/8" wide, 38-5/8" high, for taller servers. The CB3T011 is the tall single-station model, 14-5/8" wide with a 1.5 gal capacity.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
