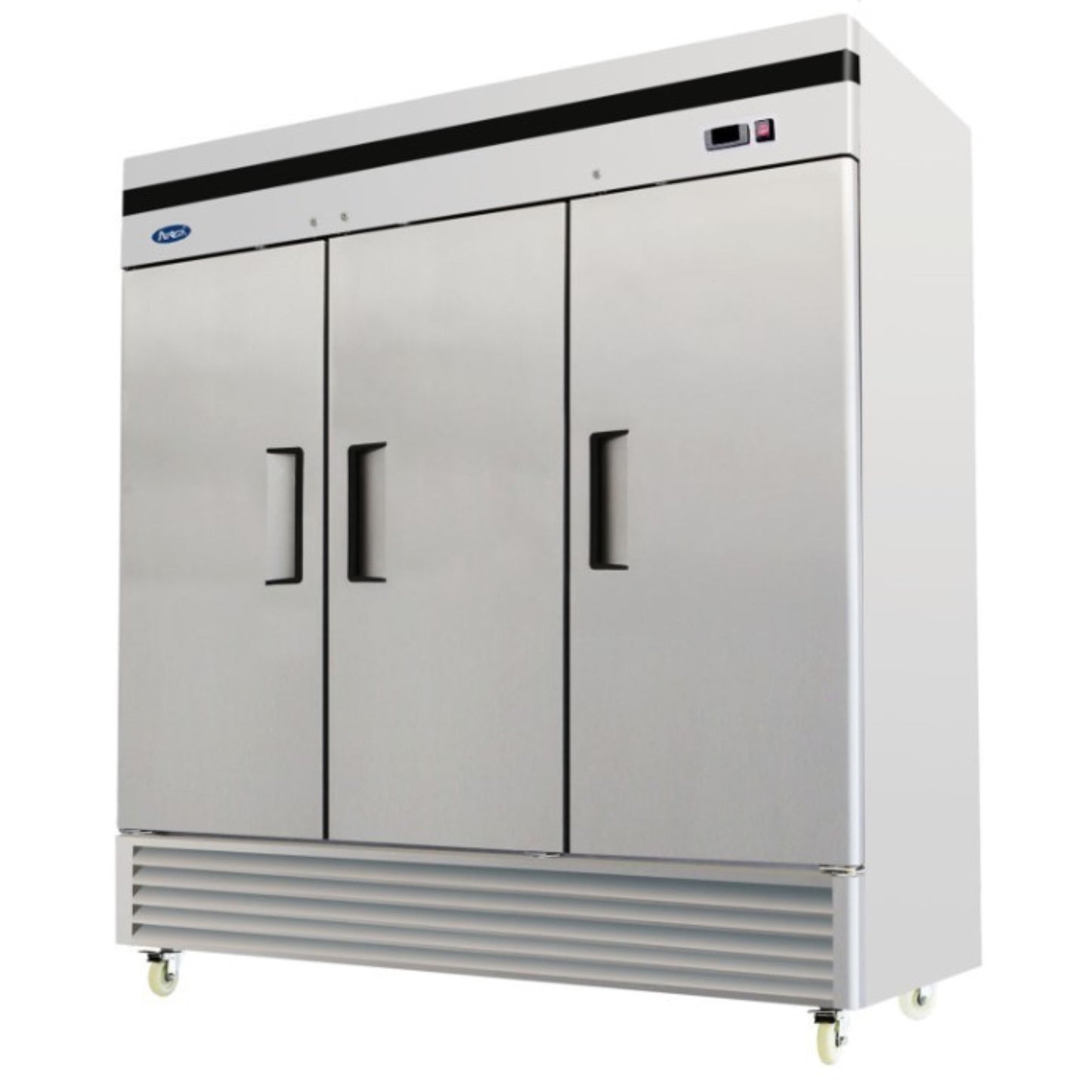

Atosa Bottom Mount Stainless Steel 3-Door Reach-In Freezer 82" MBF8504GR

The Atosa MBF8504GR is a three-section reach-in freezer with a bottom-mounted compressor. It is built for restaurants, commissaries and institutional kitchens that need a lot of frozen storage in one cabinet. It holds 68 cu. ft. behind three locking solid hinged doors and measures 81.9" wide, 31.7" deep and 83.1" high. A 1 HP self-contained system running R290 refrigerant holds -8°F to 0°F under an electronic controller, and down-duct airflow spreads cold air evenly. The cabinet is stainless steel inside and out, comes with nine epoxy-coated shelves and 4" casters already installed, and runs on 115/208-230V single-phase power through a NEMA L14-20P plug. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 68 cu. ft. of frozen storage across three sections
• Bottom-mounted 1 HP compressor running R290 hydrocarbon refrigerant
• Electronic temperature controller holds -8°F to 0°F
• Down-duct refrigeration for even air distribution through the cabinet
• Self-closing doors close on their own when opened 90° or less and stay open past 90°
• Door locks standard on all three doors, with recessed handles that do not snag
• Magnetic door gaskets seal the doors
• LED interior lighting
• Nine epoxy-coated, rust-resistant shelves already installed, three per section
• Stainless steel exterior and interior with rounded corners
• 4" casters already installed

Atosa MBF8504GR specifications

Brand	Atosa
Model number	MBF8504GR
Product type	Reach-in freezer, bottom mount, solid door
Sections / doors	3 sections, 3 solid hinged doors
Capacity	68 cu. ft.
Exterior width	81-9/10" (81.9")
Exterior depth	31-7/10" (31.7")
Exterior height	83-1/10" (83.1")
Temperature range	-8°F to 0°F
Refrigeration	Self-contained, bottom mount, down-duct airflow
Refrigerant	R290
Compressor	1 HP
Electrical	208-230/115 V, 60 Hz, 1-phase
Rated current	6.2 A
Plug	NEMA L14-20P (fits a NEMA L14-20R receptacle, 20 A, 125/250 V)
Controller	Electronic temperature controller
Defrost	Electric defrost with automatic evaporation
Shelves	9 epoxy-coated shelves, 3 per section
Replacement shelf part numbers	W0402387 (left/right section), W0402388 (middle section)
Exterior material	Stainless steel, galvanized steel back
Interior material	Stainless steel
Doors	Self-closing with stay-open past 90°, locks, recessed handles, magnetic gaskets
Lighting	LED interior
Casters	4", installed at the factory
Net weight	551 lb
Shipping weight	628 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation
Warranty	3 years parts and labor, 5 years on the compressor

Frequently asked questions

What electrical connection does the MBF8504GR need?

It needs a NEMA L14-20R locking receptacle (20 A, 125/250 V) on a 115/208-230V, 60 Hz, single-phase supply. The unit draws 6.2 A and comes with a NEMA L14-20P plug, so it will not plug into a standard 5-15R wall outlet.

Is this a freezer or a refrigerator, and what temperature does it hold?

It is a freezer. The electronic controller holds -8°F to 0°F. Atosa's matching three-door refrigerator in the same series is the MBF8508GR.

Will it fit through a standard doorway?

At 31.7" deep, it fits through a 36" doorway with about 4" to spare if you move it in sideways. At 83.1" high, it is 3.1" taller than a standard 80" door opening, so plan to tilt it during move-in and check the route with your installer.

How much does it hold?

It holds 68 cu. ft. across three sections, with nine epoxy-coated shelves (three per section) installed at the factory.

What certifications does it have?

It is cETLus listed to UL 471 and CSA C22.2 No. 120 for electrical safety in the US and Canada. It is also ETL Sanitation listed, which means it meets food equipment sanitation standards that health inspectors look for in commercial kitchens.

What warranty comes with it?

Atosa covers the cabinet and all parts for 3 years parts and labor. The sealed compressor is covered for 2 more years, for 5 years in total from the date of original installation. The compressor extension covers sealed compressor parts only. It does not cover the cabinet, paint, temperature control, refrigerant, fan assembly or other electrical parts. The warranty does not cover alteration, neglect, abuse, misuse, accidents, damage during transit or installation, fire, flood or acts of God. It is void if routine maintenance is not followed, and it is not transferable. Claims go directly to Atosa and need the model number, serial number and proof of purchase.

What factory options are available?

You can order extra shelves, and each one comes with four shelf clips. Order part W0402387 for the left or right section and W0402388 for the middle section.

How does it differ from the MBF8503GR and MBF8502GR?

The MBF8504GR is the three-door model: 68 cu. ft., 81.9" wide, with a 1 HP compressor on 208-230/115V and an L14-20P plug. The two-door MBF8503GR offers 44.8 cu. ft. in a 54.4" width. The two-door MBF8502GR offers 28.5 cu. ft. in a 39.5" width. Both two-door models use a 3/4 HP compressor on 115V and plug into a standard NEMA 5-15 outlet.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
