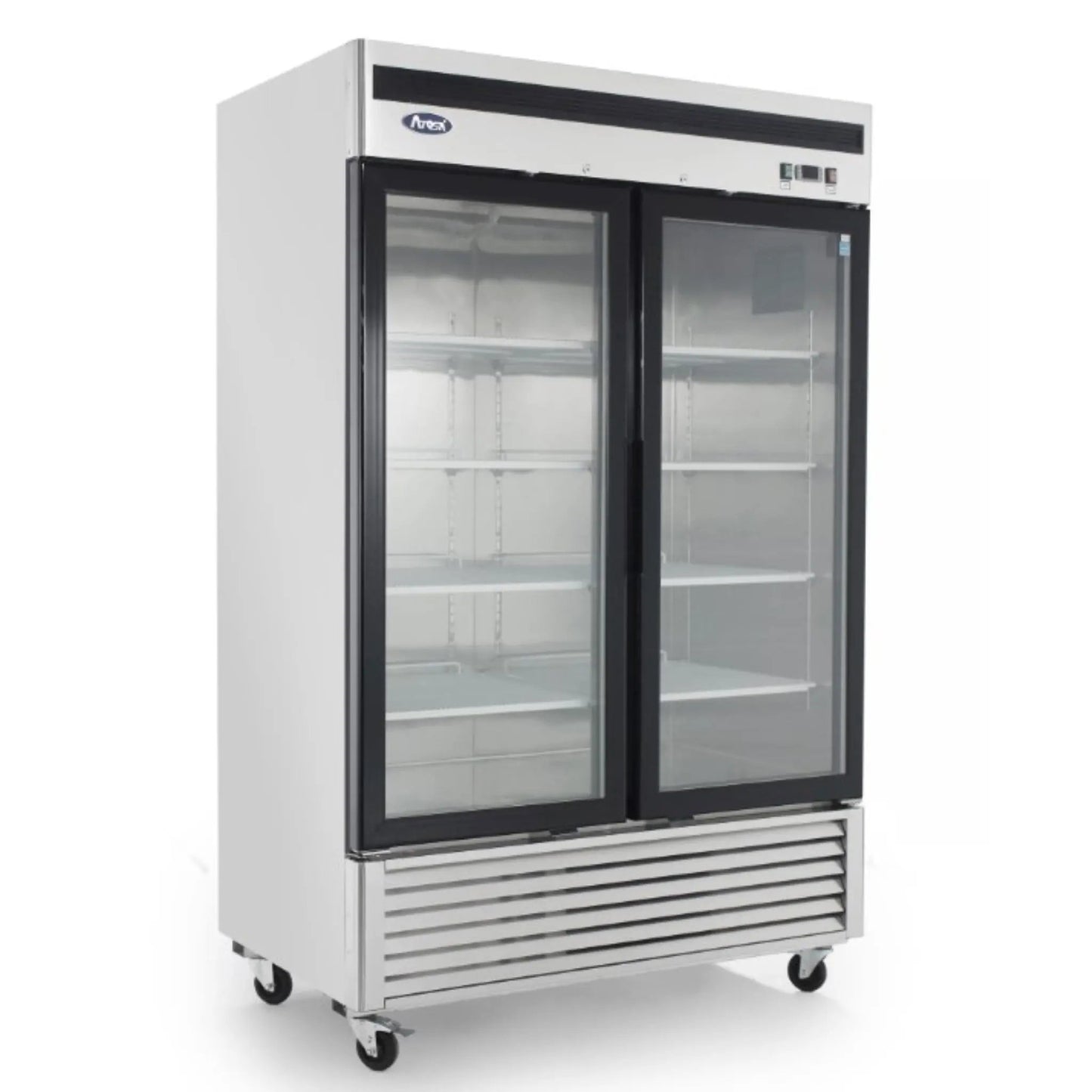

Atosa 2-Door Glass Door Merchandiser Cooler 54" - Bottom Mount MCF8707GR

The Atosa MCF8707GR is a two-section, two-door glass merchandiser refrigerator for restaurants, delis, cafés, convenience stores and grab-and-go stations that need refrigerated storage customers can see. It is 54-2/5" wide, 31-7/10" deep and 83-1/10" high, holds 44.8 cu. ft. and keeps 33°F to 38°F. A bottom-mount, self-contained system with a 1/5 HP Embraco compressor and R290 refrigerant runs on 115V and draws 3.2 A through a NEMA 5-15P plug. The cabinet is stainless steel inside and out, with self-closing, double-pane glass doors that lock, LED lighting and eight adjustable epoxy-coated shelves. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Two hinged double-pane glass doors with recessed handles, magnetic gaskets and standard door locks
• Self-closing doors: a door swings shut when opened 90° or less and stays open past 90°
• Electronic temperature controller holds 33°F to 38°F
• Bottom-mount, air-cooled, self-contained refrigeration with a heavy-duty Embraco compressor
• R290 hydrocarbon refrigerant
• Eight epoxy-coated shelves, four per section, that resist rust in humid conditions
• LED interior lighting
• Stainless steel interior and exterior with a galvanized steel back
• Air defrost with automatic condensate evaporation
• Comes with 4" casters
• ENERGY STAR certified, rated at 3.6 kWh per 24 hours

Atosa MCF8707GR specifications

Brand	Atosa
Model number	MCF8707GR
Product type	Glass door merchandiser refrigerator, reach-in
Sections / doors	2 sections, 2 hinged glass doors
Capacity	44.8 cu. ft.
Exterior width	54-2/5" (54.4")
Exterior depth	31-7/10" (31.7")
Exterior height (overall)	83-1/10" (83.1")
Temperature range	33°F to 38°F
Refrigeration	Self-contained, bottom-mount, air-cooled
Refrigerant	R290
Compressor	1/5 HP, Embraco
Defrost	Air defrost, automatic evaporation
Controller	Electronic temperature controller
Electrical	115 V / 60 Hz / 1 phase, 3.2 A
Plug	NEMA 5-15P, cord attached
Energy use	3.6 kWh per 24 hours
Shelves	8 epoxy-coated, adjustable (4 per section)
Replacement shelf part number	W0402395 (includes 4 shelf clips)
Exterior material	Stainless steel, galvanized steel back
Interior material	Stainless steel
Doors	Double-pane glass, self-closing with stay-open feature, recessed handles, locks
Lighting	LED interior
Casters	4"
Net weight	485 lb
Shipping weight	540 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation, ENERGY STAR
Warranty	3 years parts and labor, 5 years compressor

Frequently asked questions

What electrical connection does the Atosa MCF8707GR need?

It needs a standard 115V, 60 Hz, single-phase outlet that accepts a NEMA 5-15P plug. It draws 3.2 A, so it runs on an ordinary 15 A commercial receptacle and does not need a 208V or 230V circuit.

Is the MCF8707GR a refrigerator or a freezer?

It is a refrigerator. The electronic controller holds 33°F to 38°F, so it suits beverages, dairy, packaged foods and grab-and-go items, not frozen product.

Will it fit through a standard doorway?

The 31-7/10" depth fits through a 36" doorway. At 83-1/10" overall, though, it is taller than a standard 80" door opening, so measure the height of every opening on the path before delivery.

How much energy does it use?

It is ENERGY STAR certified and rated at 3.6 kWh per 24 hours. Many utilities require ENERGY STAR certification for commercial refrigeration rebates.

What certifications does it have?

It is cETLus listed to UL 471 and CSA C22.2 No. 120 for electrical safety in the US and Canada. It also carries ETL Sanitation certification, which health inspectors look for on commercial food equipment, and ENERGY STAR certification.

What warranty comes with the MCF8707GR?

Atosa covers the cabinet and all parts against defects in materials or workmanship for 3 years, parts and labor included, and covers the sealed compressor for 2 more years, 5 years in total from original installation. The extended compressor coverage applies only to the sealed compressor, not to the cabinet, paint, temperature control, refrigerant, metering device, motor starting equipment or fan assembly. Damage from alteration, neglect, abuse, misuse, accident, transit or installation damage, fire or acts of God is excluded. Claims go directly to Atosa and need the model number, serial number, proof of purchase and installation date.

Can I add more shelves?

Yes. Extra shelves are sold under Atosa part number W0402395, and each comes with 4 shelf clips. The unit ships with eight shelves, four per section.

How does the MCF8707GR differ from other models in the Atosa line?

The MCF8705GR is the one-door, one-section version. The MCF8709GR is a two-section model with sliding glass doors for tight aisles, and it does not come with door locks. The MCF8723GR is the two-door model with a black cabinet. The MCF8707GR has a stainless steel exterior, hinged doors and standard locks.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
