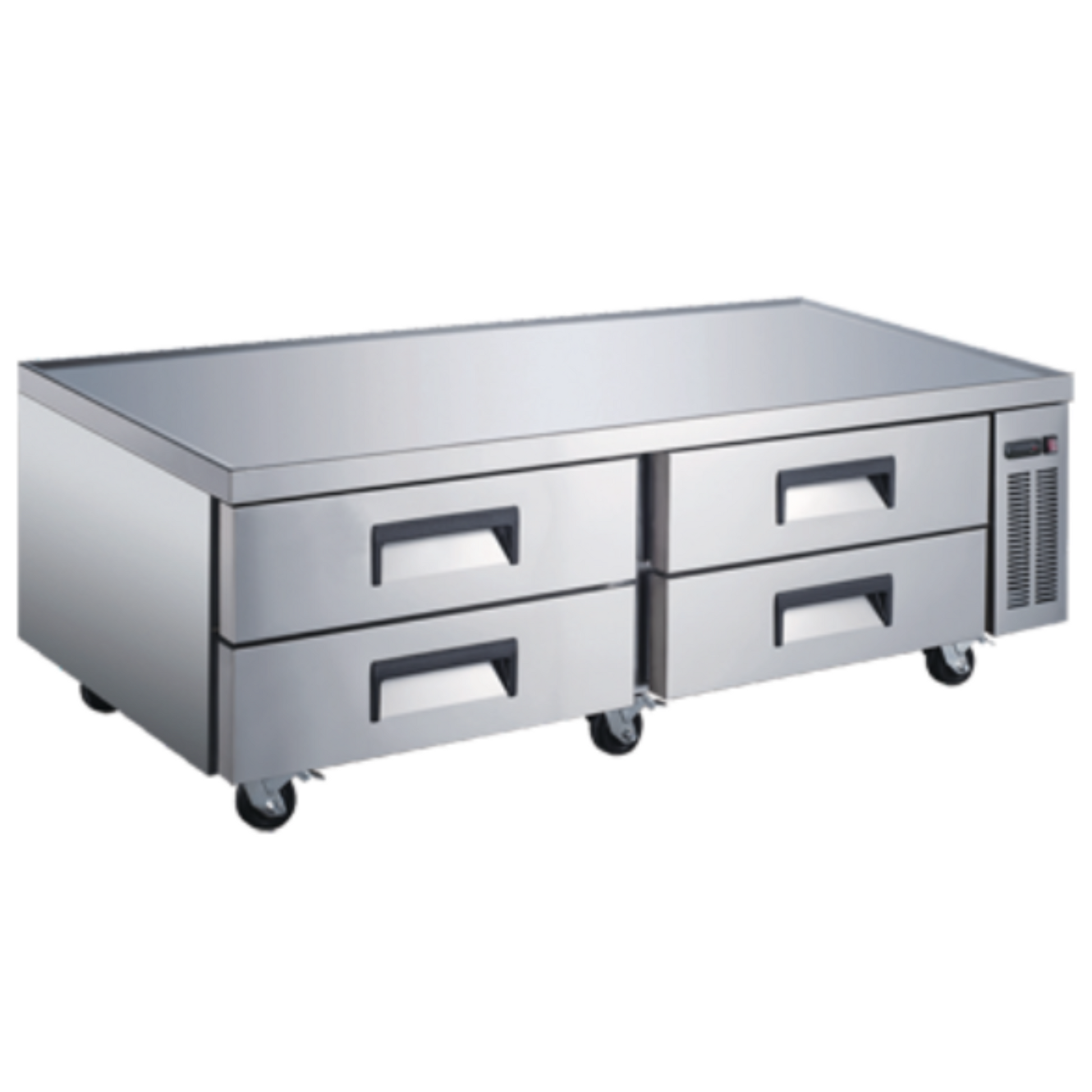

The Omcan 50072 (model RE-CN-0072-C) is a 72" refrigerated chef base for commercial kitchens that want cold ingredient storage directly under countertop cooking equipment. It measures 72" wide, 32" deep and 25" high and has four refrigerated drawers with 13.6 cu. ft. (385 L) of capacity. A side-mounted, self-contained 1/3 HP R290 system holds 33°F to 41°F (0.5°C to 5°C) and draws 3.9 A at 110V through a NEMA 5-15P plug. The cabinet is 304 stainless steel inside and out, with an aluminum-finished back and a reinforced stainless steel top.
Key features
- Four drawers, each holding (2) full-size 12" x 20" x 4" food pans, for (8) pans total.
- Electronic control with adjustable temperature and defrost frequency.
- Reinforced stainless steel top with a drip-resistant "V" edge that keeps spills from running over the sides.
- 304 stainless steel interior and exterior with rounded interior corners for easier cleaning.
- Each drawer has a heavy-duty pull handle, tracks and rollers.
- Side-mounted, self-contained refrigeration with an easy-to-reach condenser coil for service.
- R290 natural hydrocarbon refrigerant.
- Four heavy-duty casters come standard.
- Plug-in unit with no plumbing needed.
Omcan 50072 specifications
| Brand |
Omcan |
| Model number |
50072 (manufacturer model RE-CN-0072-C) |
| Product type |
Refrigerated chef base / equipment stand |
| Drawers |
4 |
| Capacity |
13.6 cu. ft. (385 L) |
| Pan capacity |
2 full-size 12" x 20" x 4" pans per drawer, 8 total |
| Exterior width |
72" (1838 mm) |
| Exterior depth |
32" (816 mm) |
| Exterior height |
25" (644 mm) |
| Temperature range |
33°F to 41°F (0.5°C to 5°C) |
| Controls |
Electronic, adjustable temperature and defrost frequency |
| Refrigeration |
Self-contained, side-mounted |
| Refrigerant |
R290 |
| Compressor |
1/3 HP |
| Electrical |
110V / 60 Hz / 1-phase |
| Amps |
3.9 A |
| Plug |
NEMA 5-15P |
| Cord length |
7.4 ft (2.25 m) |
| Materials |
304 stainless steel interior and exterior, aluminum-finished back |
| Top |
Reinforced stainless steel with drip-resistant V edge |
| Casters |
4 heavy-duty casters, included |
| Rear clearance |
3" |
| Net weight |
330.7 lb (150 kg) |
| Shipping weight |
375 lb |
| Shipping dimensions (width x depth x height) |
75" x 36" x 28" |
| Certifications |
cETLus, ETL Sanitation |
| UPC |
690207500726 |
| Country of origin |
China |
| Warranty |
2 years parts and labor, 5 years parts only on compressor |
Frequently asked questions
What outlet does the Omcan 50072 need?
It needs a standard NEMA 5-15R receptacle (15 A, 120V class) for its NEMA 5-15P plug. It is rated 110V / 60 Hz / 1-phase and draws 3.9 A, and the cord is 7.4 ft long.
Will it fit through a standard doorway?
Yes. Once it is out of its packaging, the 32" depth clears a 36" doorway and the 25" height is well under an 80" door opening. The packed unit is 36" deep, so you may need to unpack it before moving it through a 36" door.
Is this a refrigerator or a freezer?
It is a refrigerator. It holds 33°F to 41°F (0.5°C to 5°C), the normal range for cold food holding. It does not freeze.
How many food pans does it hold?
Each of the four drawers holds two full-size 12" x 20" x 4" pans, for eight pans total. The cabinet has 13.6 cu. ft. (385 L) of storage.
What certifications does it have?
It is cETLus listed for electrical safety in the US and Canada, and ETL Sanitation listed, which means it meets food equipment sanitation standards that health inspectors check for.
What warranty comes with it?
Omcan covers it for 2 years parts and labor, plus 5 years on compressor parts only. The warranty covers electrical and part failures. It does not cover improper use, and unauthorized maintenance voids it. It also excludes installation adjustments such as leveling and utility connections, and it does not apply to residential installations. The warranty cannot be transferred and is valid only in the country of purchase.
How much clearance does it need?
Leave 3" behind the unit for best performance. Install it indoors on a level surface in a well-ventilated area.
How does it differ from the Omcan 50070 and 50071?
The 50072 is the largest model in the line: 72" wide, four drawers, 13.6 cu. ft. and 1/3 HP. The 50071 (RE-CN-0052-C) is 52" wide with two drawers, 9.1 cu. ft. and 1/4 HP. The 50070 (RE-CN-0036-C) is 36" wide with two drawers, 5.7 cu. ft. and 1/6 HP. All three models are 32" deep and 25" high.
How is it delivered?
It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
