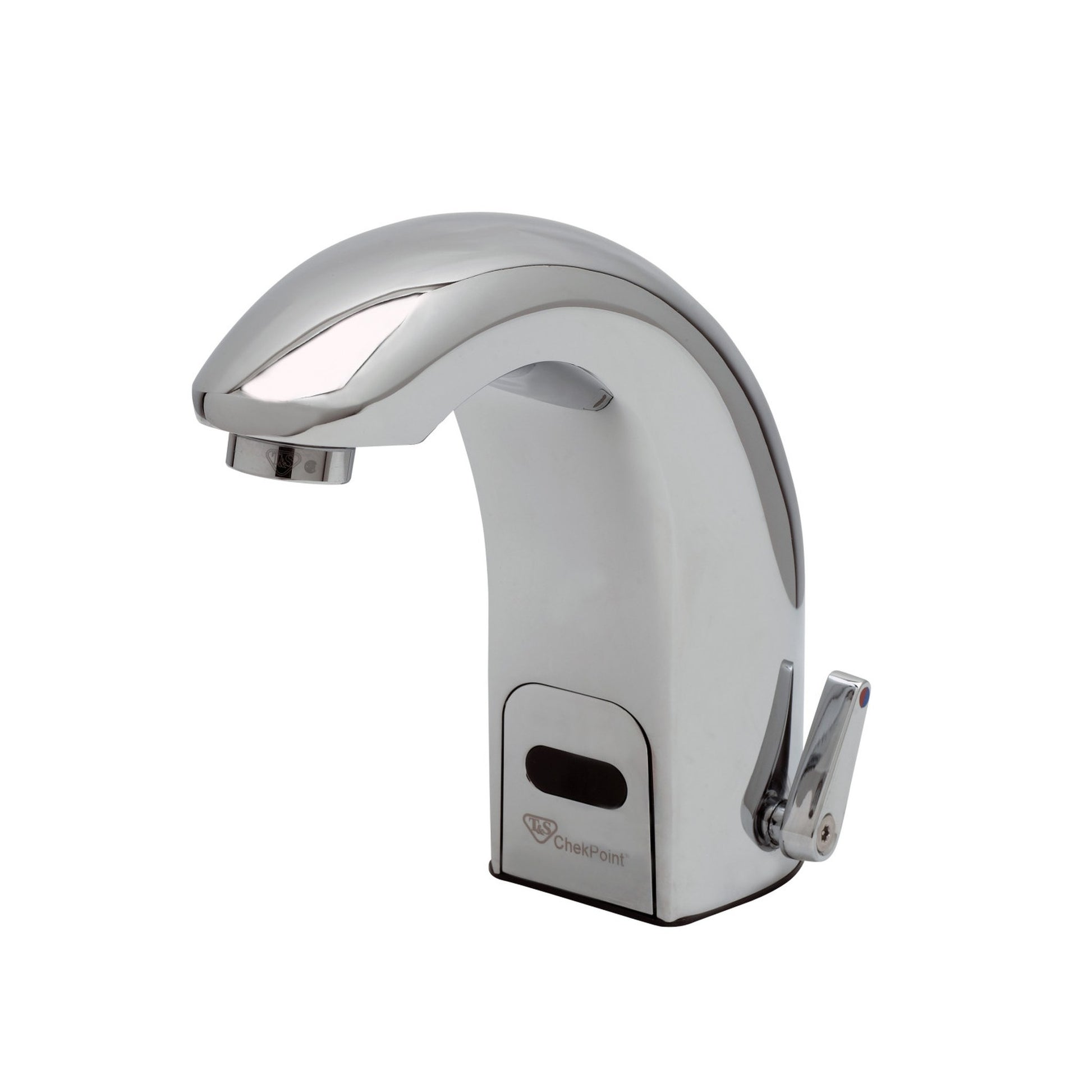

T&S Brass ChekPoint Above-Deck Electronic Sensor Faucet NSF 0.5 GPM - EC-3142-VF05

The T&S Brass ChekPoint EC-3142-VF05 is a hands-free, above-deck electronic sensor faucet built for commercial handwashing applications in restaurants, institutional kitchens, healthcare facilities, and other food service environments where touchless operation and water conservation are required. With NSF certification, ADA compliance, and a vandal-resistant 0.5 GPM spray device, it is a reliable specification-grade fixture for new installations and faucet replacements alike.

• Single-hole deck mount electronic sensor faucet with a polished chrome-plated brass body, integral cast spout, and above-deck electronic AC/DC control module with internal flow control setting switches.

• Polished chrome-plated brass construction throughout, with a cast spout, stainless steel flexible supply hoses, and an above-deck temperature mixing handle.

• The rigid cast spout measures 5 inches long and the faucet has a 2-1/2 inch base, sized for standard single-hole sink deck installations.

• The faucet connects to supply lines using 19-inch flexible supply hoses, and the electronic functions can be powered by the included AC adapter or a 6VDC lithium battery, also included.

• Above-deck electronics (ADE) allow access to the battery and sensor system without working under the sink, simplifying routine maintenance and battery replacement.

• The control module includes an optional auto flush feature that flows water for 30 seconds after every 12 inactive hours, supporting line hygiene in low-traffic installations.

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, and UL 1951; meets ADA ANSI/ICC A117.1 requirements.

Dimensions: Spout Length: 5 in. | Faucet Height: 6-3/8 in. | Base: 2-1/2 in. | Supply Hoses: 19 in.
