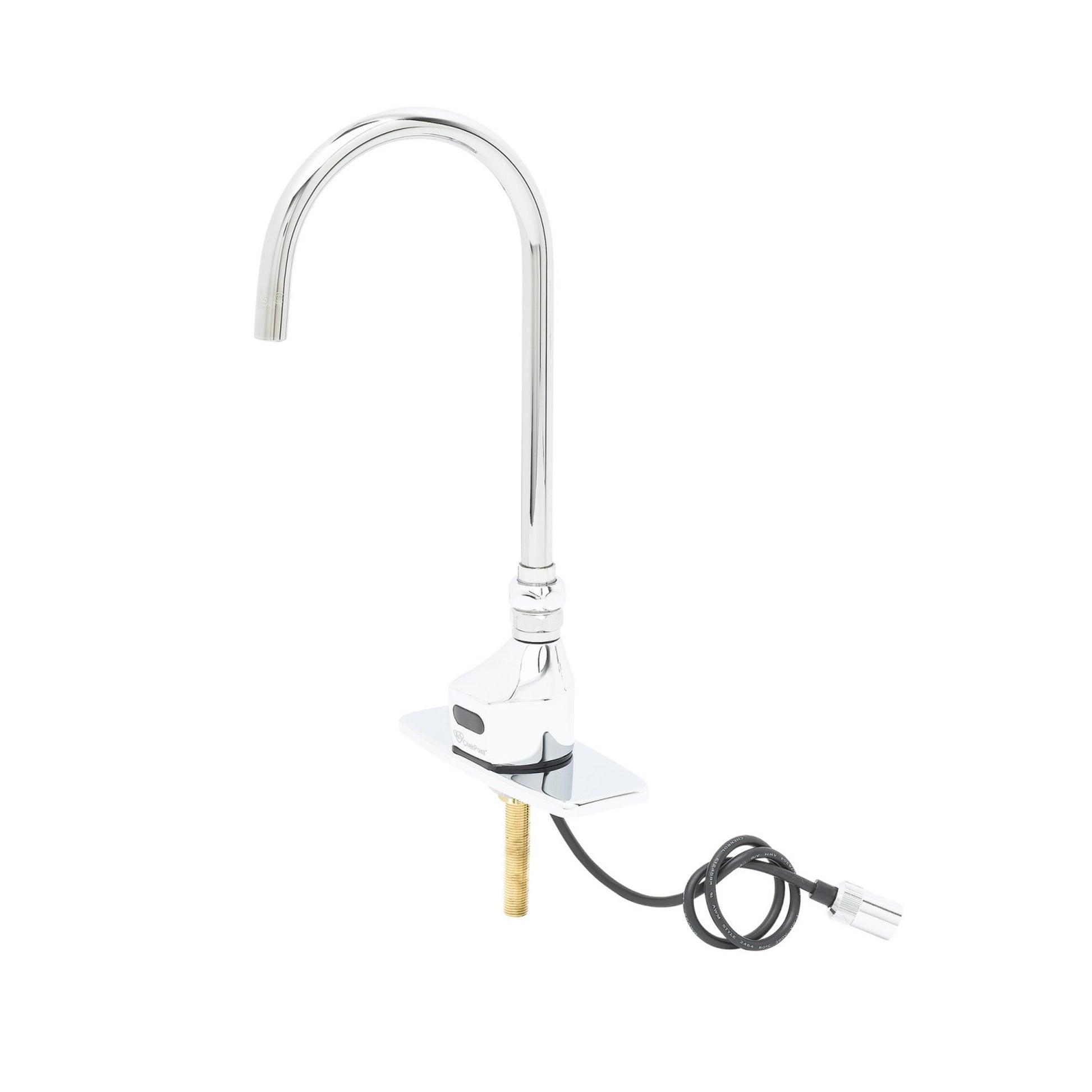

T&S Brass ChekPoint Electronic Sensor Faucet Chrome Brass Deck - EC-3100-5XP15T4

The T&S Brass ChekPoint EC-3100-5XP15T4 is a hands-free electronic sensor faucet built for commercial handwashing stations, restrooms, and foodservice facilities where touchless operation and water conservation are operational priorities. It mounts to a single deck hole with a 4" center deck plate and delivers a controlled, consistent flow without manual contact.

• Hands-free deck mount sensor faucet designed for commercial restrooms, handwashing sinks, and food service facilities requiring touchless operation
• Polished chrome-plated brass body with a 5-11/16" plain end swivel gooseneck; low-lead construction meets NSF 372 requirements
• Faucet height 13-3/16", width 6", spout length 5-11/16"; mounts through a single hole with a 4" center-to-center deck plate included
• Includes AC/DC control module powered by AA batteries or optional AC adapter; sensor activates water flow at the base of the faucet, with a red indicator light signaling low battery
• Water-resistant control module houses internal flow control setting switches for adjusting auto time-out and shut-off delay; three 18" flexible stainless steel supply hoses with 3/8" compression connections are included for hot, cold, and thermostatic mixing valve hookup
• Thermostatic temperature control mixing valve with integral check valves is included; operating pressure range 20-125 psi, temperature range 40°F-140°F; flow rate 1.5 GPM
• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, UL 1951, and ASSE 1070
• Meets ADA ANSI/ICC A117.1 requirements

Dimensions: Spout Length: 5-11/16" | Faucet Height: 13-3/16" | Faucet Width: 6"
