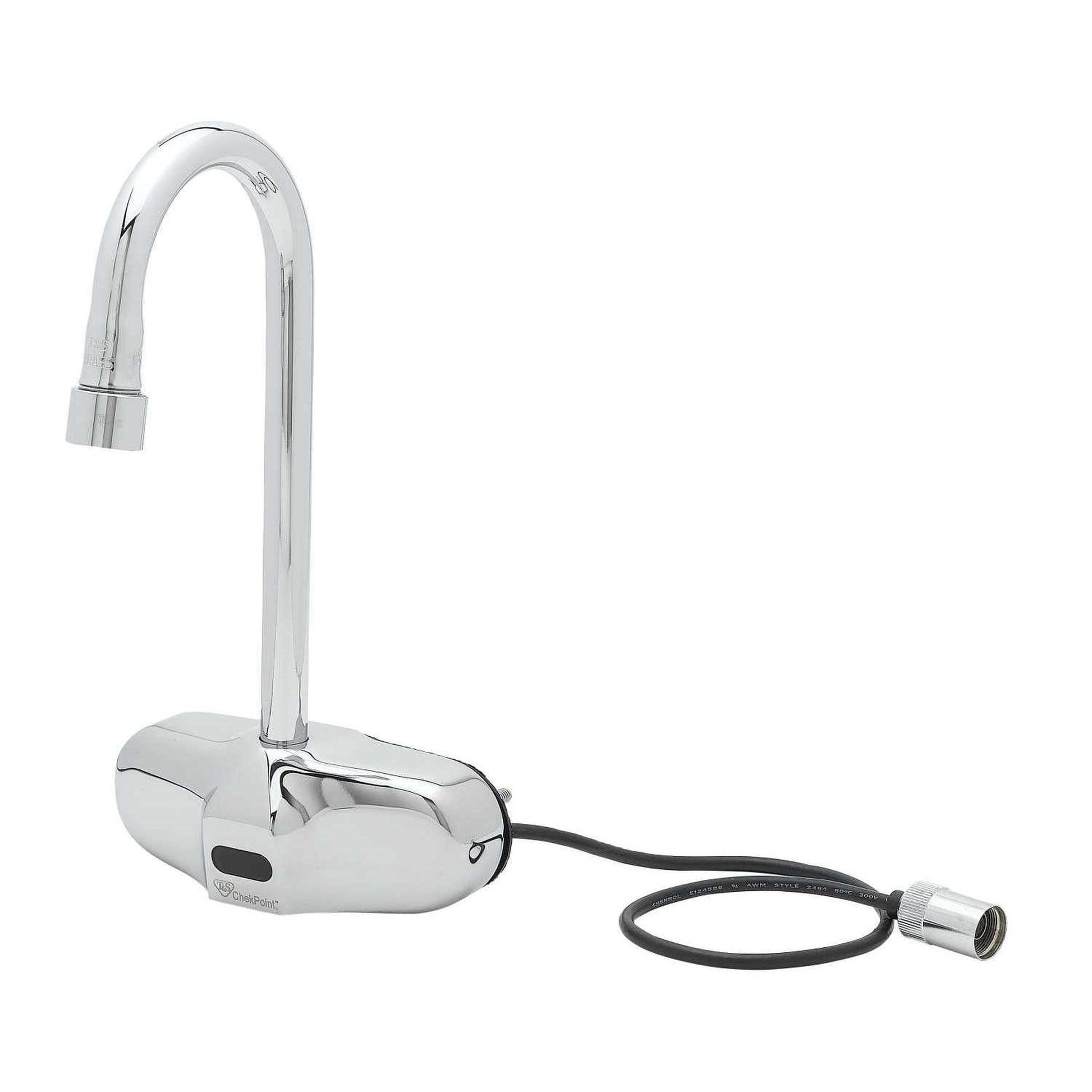

T&S Brass ChekPoint Electronic Sensor Faucet Wall Mount 4" Centers - EC-3105-HG

The T&S Brass ChekPoint EC-3105-HG is a commercial hands-free electronic sensor faucet designed for wall mount installation with 4" centers, built for handwashing stations in commercial kitchens, restaurants, cafeterias, and high-traffic restrooms where touchless operation and sanitation compliance are required. This model is distinguished from the standard EC-3105 by its included hydro-generator power supply, which eliminates the need for dedicated electrical wiring under normal operating conditions.

• Commercial hands-free sensor faucet with touchless activation; suited for handwashing applications in foodservice, hospitality, healthcare, and institutional facilities with high daily use
• Polished chrome plated brass body construction with a water-resistant AC/DC control module; includes 18" flexible stainless steel supply hoses with 3/8" compression connections
• 4" centers wall mount with a 4-1/8" rigid gooseneck spout; overall faucet height is 11" and width is 6-1/8"; installs as a 2-hole centerset configuration mounted to a non-removable escutcheon plate
• Temperature control mixing valve with integral check valves included; internal flow control switches on the control module allow adjustment of auto time-out and shut-off delay settings; optional auto flush feature runs water for 30 seconds after every 12 hours of inactivity
• Hydro-generator power supply is self-sustaining — water passing through the unit powers a turbine that stores energy; AC adapter and four AA batteries included as backup power; vandal-resistant 2.2 GPM aerator resists tampering in public-facing environments
• Carries a three-year limited warranty including commercial use; backed by T&S Brass, a manufacturer with an established OEM parts and accessories ecosystem for long-term serviceability

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, and UL 1951
• Meets ADA ANSI/ICC A117.1 requirements

Dimensions: Spout Length: 4-1/8" | Height: 11" | Width: 6-1/8" | Faucet Centers: 4"
