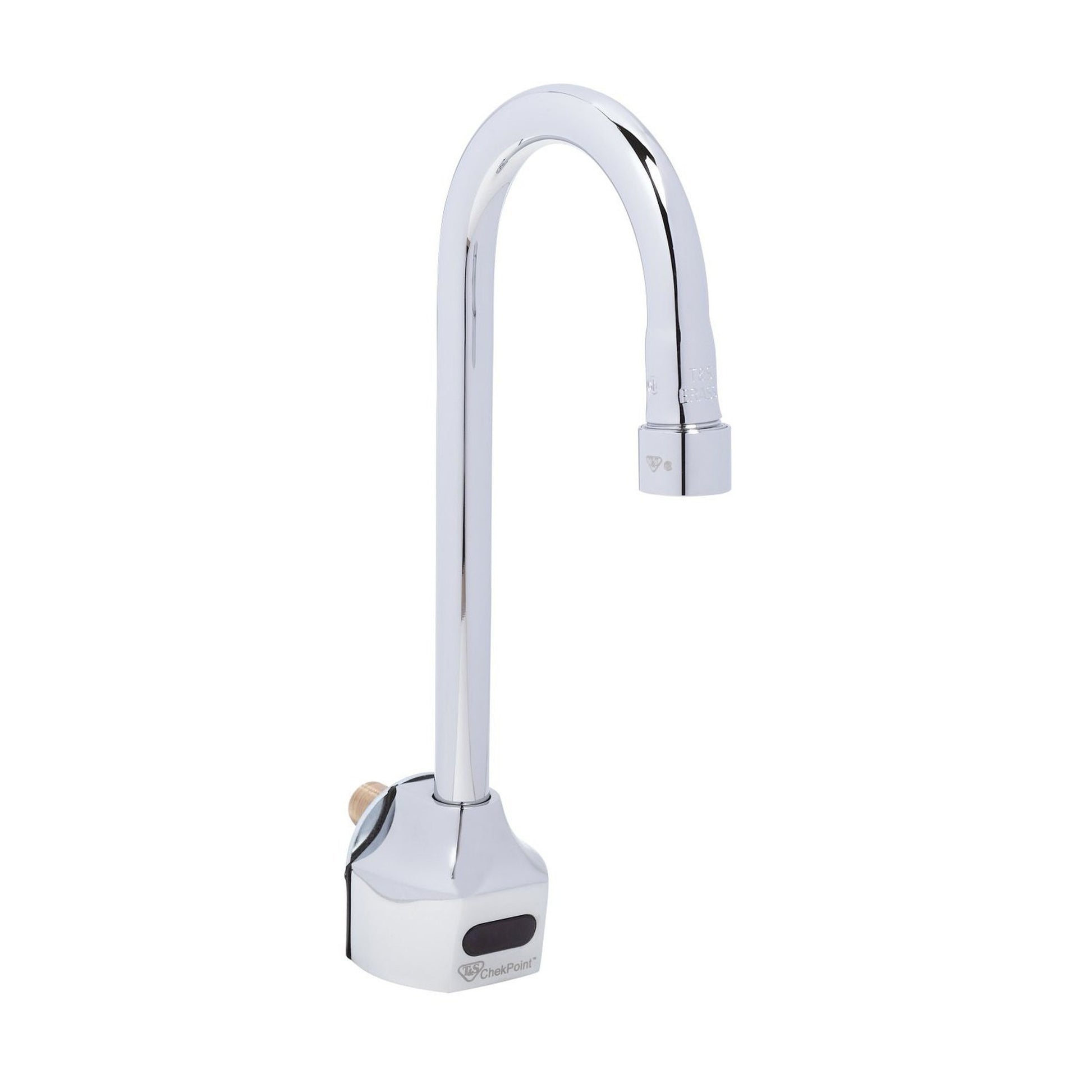

T&S Brass ChekPoint Wall Mount Electronic Sensor Faucet ASSE - EC-3101TMVHGF10

The T&S Brass ChekPoint EC-3101TMVHGF10 is a single-hole wall mount electronic sensor faucet built for commercial hand washing applications where hands-free operation, water conservation, and ADA compliance are required. It is suited for restaurant restrooms, bar sinks, and lavatory sinks in foodservice facilities.

• Commercial wall mount electronic sensor faucet with a polished chrome plated brass body, 4-1/8" rigid gooseneck, and AC/DC control module with internal flow control setting switches

• Chrome plated brass construction throughout; includes 18" flexible stainless steel supply hoses with 3/8" compression connections

• Spout length: 4-1/8"; faucet height: 11"; faucet width: 2-1/4"; spout clearance: 5-9/16"

• Installs in a single wall-mount hole; includes a thermostatic temperature control mixing valve with integral check valves and a hydro-generator power supply that eliminates the need for hardwired AC power or routine battery replacement

• Water resistant control module with internal flow control switches for adjusting auto time-out and shut-off delay settings; control module box measures 3-5/8" x 4-3/16" x 2" deep and is operable via AC or DC power

• Rated at 1.0 GPM with a vandal resistant aerator; includes an optional 100-240 VAC adapter for facilities where hardwired power is preferred

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, EPA WaterSense, UL 1951, and ASSE 1070; meets ADA ANSI/ICC A117.1 requirements

Dimensions: Spout Length: 4-1/8" | Faucet Height: 11" | Faucet Width: 2-1/4" | Spout Clearance: 5-9/16" | Control Module: 3-5/8" x 4-3/16" x 2" deep
