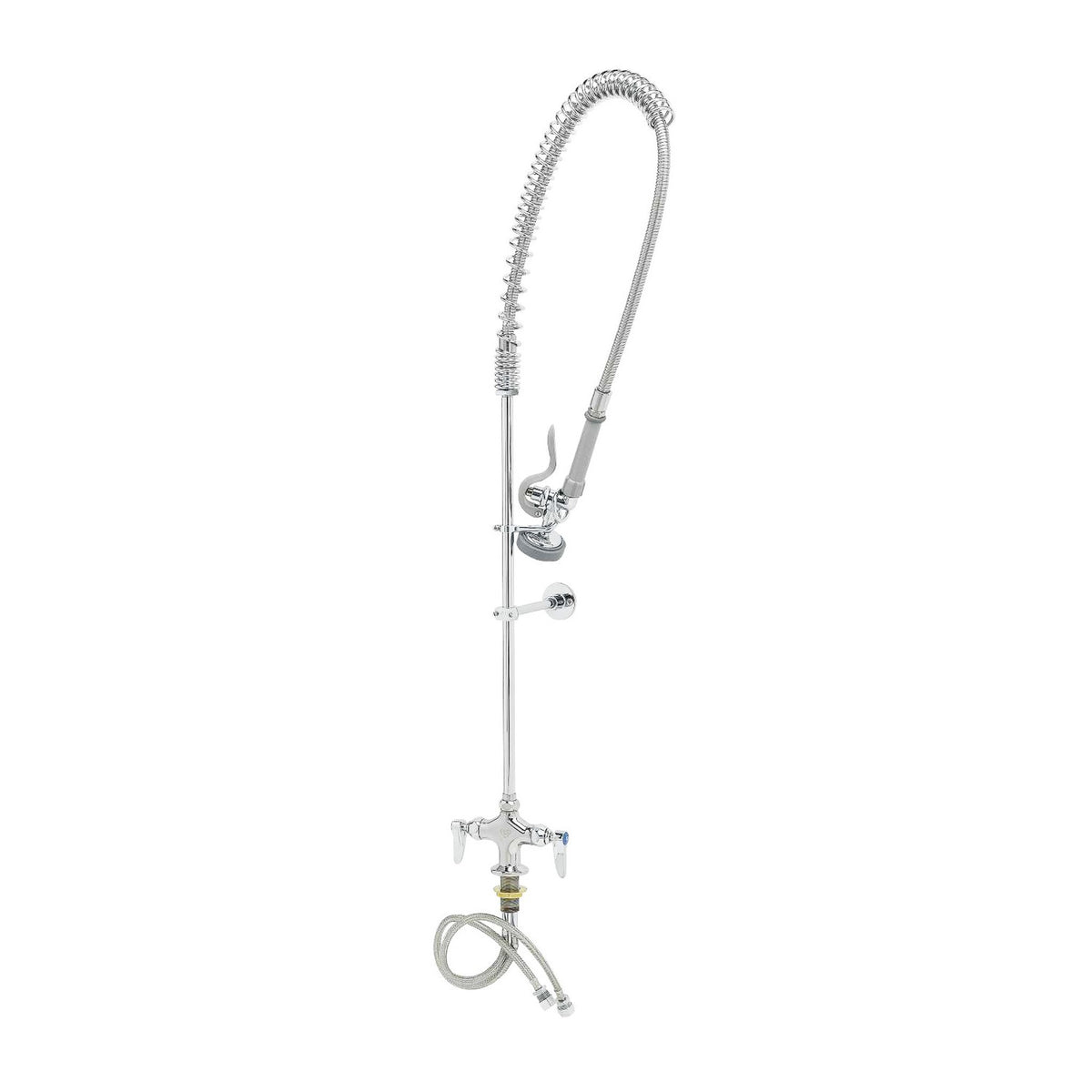

T&S Brass EasyInstall Pre-Rinse Unit NSF Spring Action Single Hole - B-0113-B

The T&S Brass B-0113-B EasyInstall commercial pre-rinse unit is a single hole deck mount assembly built for dishroom and warewashing stations in restaurants, institutions, and high-volume foodservice operations. It ships as a complete, ready-to-install unit designed to reduce installation time on new builds and replacement projects alike.

• Single hole deck mount configuration with a spring action gooseneck, overhead spring, and spray valve holder included; mounts through decks up to 1-3/8 inches thick
• Polished chrome-plated brass body, riser, and spray valve body; 44-inch flexible stainless steel hose with heat-resistant handle; chrome-plated metal lever handles
• 24-inch riser with 14-inch spout reach and approximately 19-3/8 inches of clearance for stock pots, sheet pans, and large wares; 45 inches overall assembled height
• Includes 18-inch flexible stainless steel supply hoses with 1/2-inch NPSM connections and removable compression fittings for 5/8-inch OD copper tubing for straightforward hookup; 6-inch adjustable wall bracket included for rear support
• Quarter-turn Eterna compression cartridges with spring checks prevent cross-flow between hot and cold; color-coded lever handles simplify temperature identification during service
• Spray valve (B-0107) rated at 1.15 GPM; low lead construction; 2019 DOE PRSV Class II compliant; three-year limited warranty

• NSF certified (NSF 61 Section 9 and NSF 372)
• Certified to ASME A112.18.1/CSA B125.1

Dimensions: 7-9/16 inches W x 42-1/16 inches H (overall faucet assembly)
