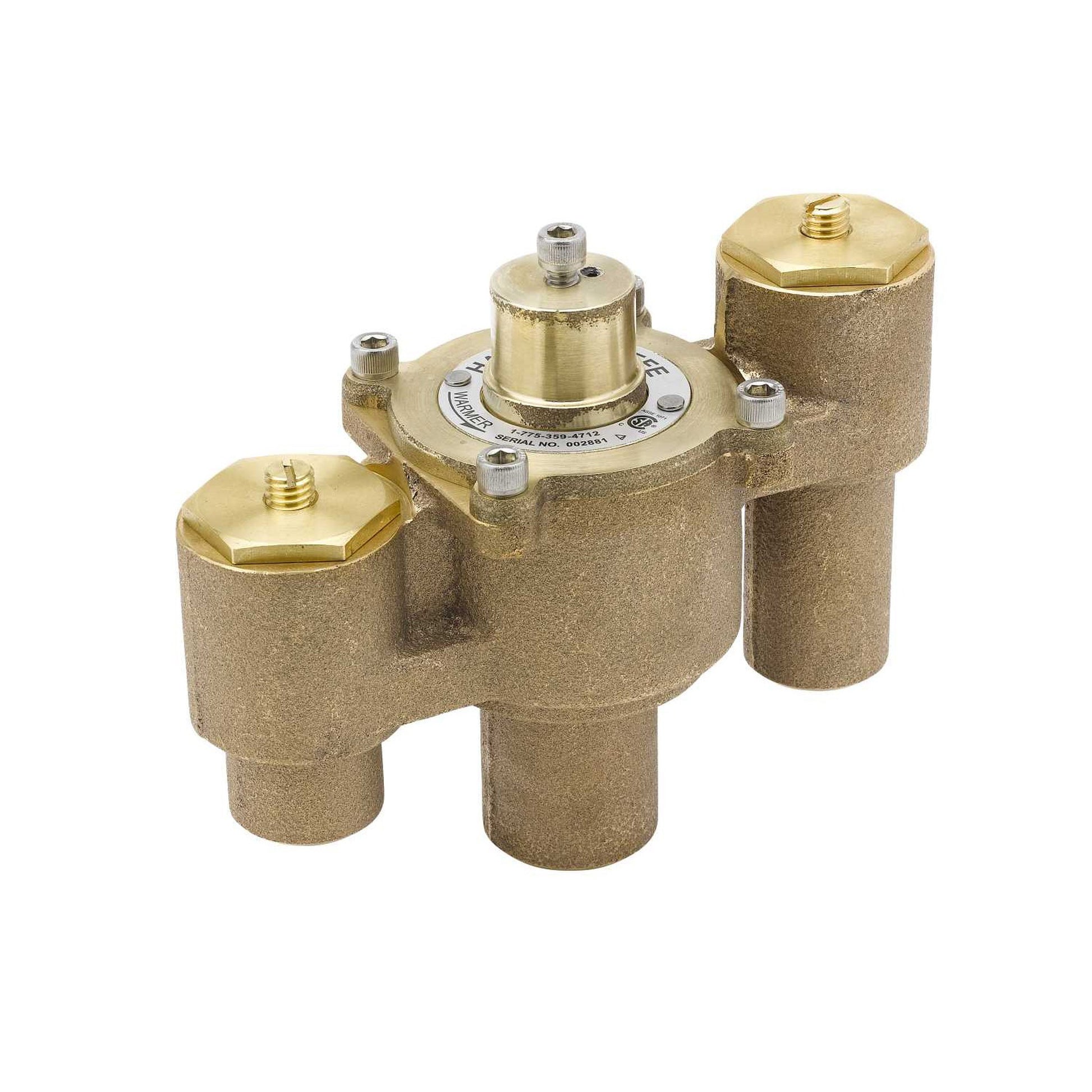

T&S Brass Eye/Face Wash Thermostatic Mixing Valve ASSE 1071 - EW-9201EF

The T&S Brass EW-9201EF is a thermostatic mixing valve designed to supply tempered water to commercial eye/face wash stations, meeting ASSE 1071 and ANSI Z358.1 requirements for emergency eyewash installations in foodservice, laboratory, and industrial facilities. It is the correct valve for operators who need a code-compliant, temperature-controlled water supply for a single T&S eye/face wash unit.

• Thermostatic mixing valve sized for eye/face wash applications requiring water flow up to 7 GPM at 30 psi, sufficient for a single eye/face wash unit.

• Constructed of brass with a thermostatic mixing element and includes a fail-safe backup mechanism.

• Connections are 1/2" NPT female inlets and a 3/4" NPT female outlet; check valves are included.

• Outlet temperature is factory set to 80 degrees F (26 degrees C); maximum recommended inlet temperature is 140 degrees F.

• The fail-safe backup shuts off incoming hot water if cold water supply fails or is interrupted, and the valve maintains outlet temperature to within +/- 5 degrees Fahrenheit with as little as 2 GPM of water flow.

• Manufactured in the USA; weight is 7.00 lbs (3.18 kg).

• Certified to ANSI Z358.1. Operating pressure range is 30 psi minimum to 90 psi maximum; outlet temperature range is 60 degrees F minimum to 100 degrees F maximum.
• Meets the standards of the Canadian Standards Association (CSA).
