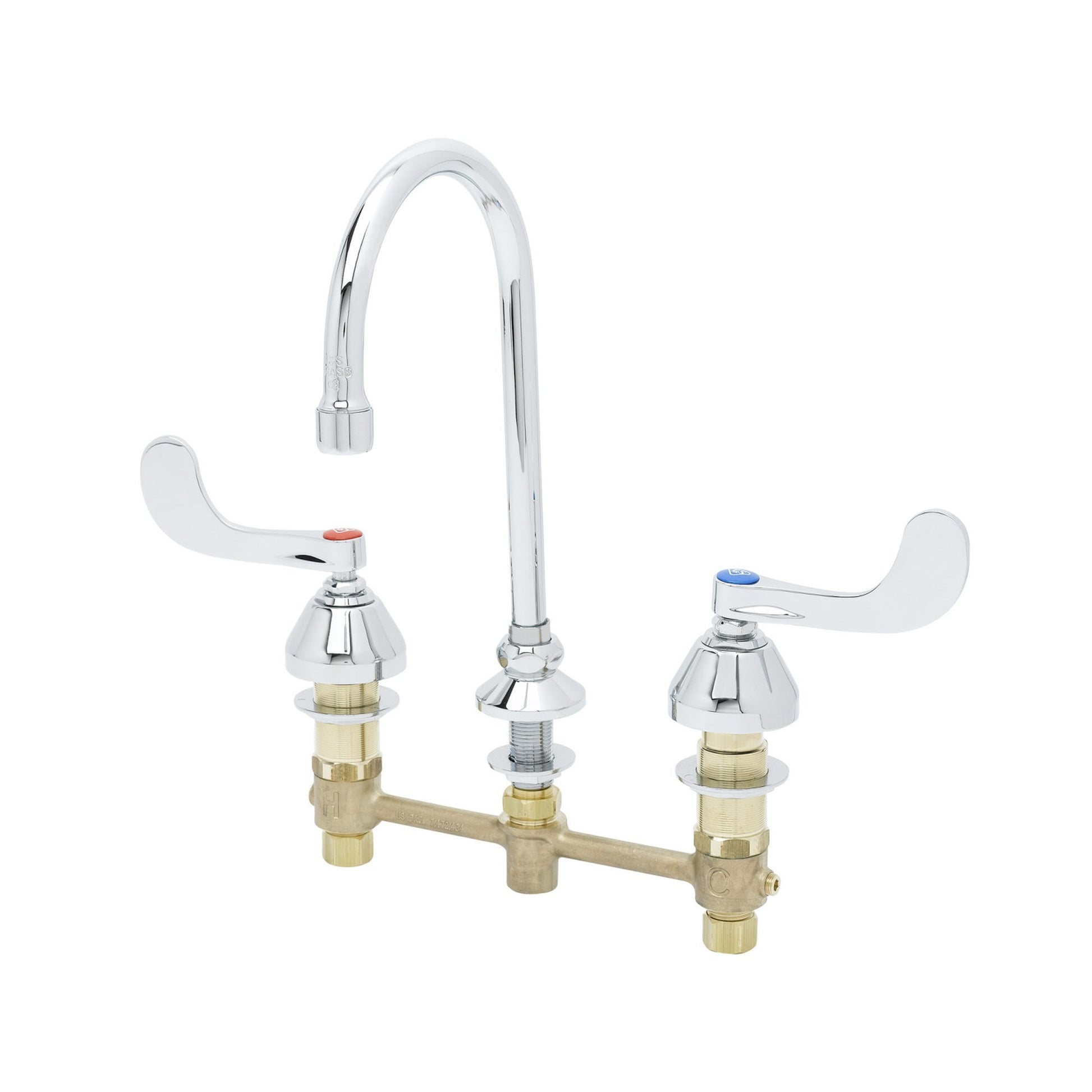

T&S Brass Medical Faucet Forged Brass NSF ADA 8" Centers, Cerama - B-2866-05CR

The T&S Brass B-2866-05CR is a commercial-grade medical lavatory faucet built for healthcare facilities, food service operations, and any environment where hands-free or wrist-operated handwashing is required by code or protocol. With an EasyInstall concealed deck mount design and forged brass construction, it is a reliable choice for operators who need a code-compliant, long-lasting sink fixture.

• Commercial medical-grade deck mount mixing faucet designed for handwashing sinks in healthcare, food service, and institutional settings where wrist-operated controls are required
• Forged brass body with polished chrome plated brass tubular spout and chrome plated metal handles and escutcheons for corrosion resistance in commercial use
• 8" center spread with a 5-3/4" swivel/rigid gooseneck; configurable as swivel or rigid with included lock washer; 1/2" NPT male inlets with coupling nuts
• Fits standard 8" center widespread sink decks; concealed base mounts flush to the deck surface; EasyInstall design simplifies rough-in and alignment during installation
• Quarter-turn Cerama cartridges with built-in check valves prevent cross-flow between hot and cold water lines; 2.2 GPM aerator (Series 1, B-0199-01) controls flow rate; 4" wrist action handles with color-coded indexes allow no-touch operation
• Operating pressure range is 20 to 125 PSI; temperature tolerance rated from 40°F to 180°F; ships as a single assembly at approximately 6 lbs.

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372
• Meets ADA ANSI/ICC A117.1 requirements
• Made in the United States; CSA listed

Dimensions: Spout Length: 5-3/4" | Faucet Height: 10-11/16" | Faucet Width: 16" | 8" Centers | Spout Clearance: 6-1/4"
