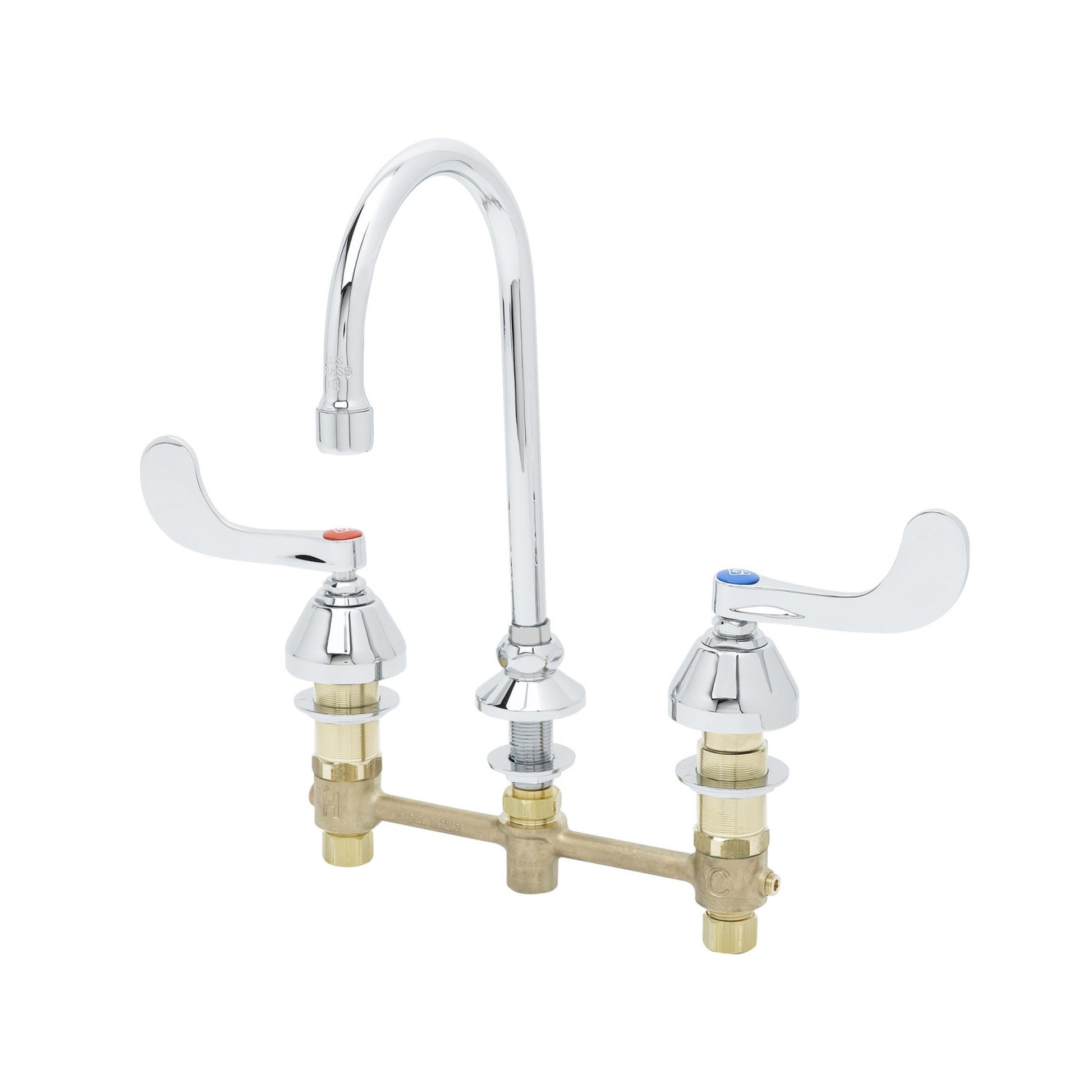

T&S Brass Medical Lavatory Faucet Forged Brass NSF ADA 8" Centers - B-2866-05

The T&S Brass B-2866-05 is a commercial medical lavatory faucet designed for use in healthcare facilities, food service operations, institutional kitchens, and any commercial handwashing application where hands-free or wrist-operated control is required for sanitation compliance. It mounts on standard 8" centers with a concealed deck mount configuration and ships pre-assembled for straightforward installation.

• Concealed deck mount mixing faucet for commercial and medical/institutional handwashing sinks, with an 8" widespread center configuration and quarter-turn Eterna compression cartridges with spring checks to prevent cross flow between hot and cold water supplies.

• Forged brass body construction with polished chrome plated brass tubular spout and chrome plated metal handles and escutcheons.

• Spout reach is 5-3/4", spout height is 6-1/4", flow rate is 2.2 GPM, and the unit fits decks up to 1-1/4" thick; overall footprint is 10-11/16" H x 16" W.

• Pre-assembled EasyInstall design fits 8" standard adjustable centers; 4" wrist action handles with color-coded indexes allow hands-free-style on/off operation without requiring a full grip.

• Operates at 20-125 psi and handles water temperatures from 40°F to 140°F; includes a lock washer for rigid gooseneck applications and 1/2" NPT male inlets with coupling nuts.

• Made in the United States of America.

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372; meets ADA ANSI/ICC A117.1 requirements.

• BAA/ARRA compliant.

Dimensions: 10-11/16" H x 16" W, 5-3/4" spout reach, 6-1/4" spout clearance
