T&S Brass NSF Deck-Mount Glass Filler Station Chrome 12" Pedestal - B-1230-12

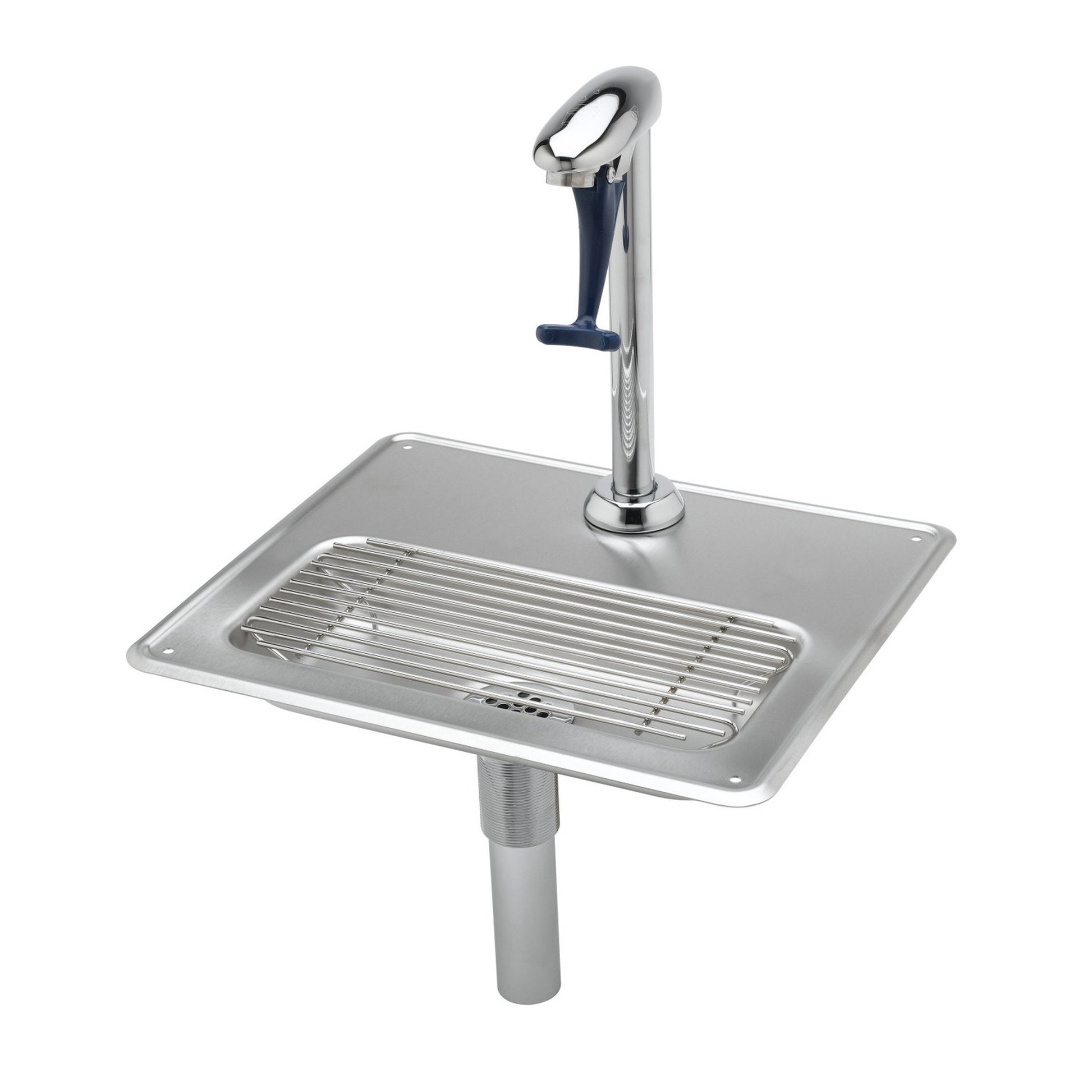

The T&S Brass B-1230-12 is a deck-mount NSF-certified glass filler station built for commercial bar, beverage, and hydration service counters where fast, hands-free glass filling is required. The 12" chrome pedestal provides added clearance to accommodate tall glasses, tumblers, and pitchers that shorter pedestal models cannot handle.

• Deck-mount glass filler station designed for high-volume commercial bar, restaurant, and beverage service applications, with push-back actuation that activates flow when a glass is pressed against the dark blue arm and shuts off automatically upon removal
• Body and pedestal are polished chrome-plated brass; the flange is chrome-plated metal; the drip pan and drop-in grid are 18-gauge stainless steel; the actuation arm is thermoplastic
• 12" pedestal height provides clearance between the deck surface and the flow outlet to fill taller vessels; the flow outlet is Torx wrench-adjustable to fine-tune water delivery (Torx wrench included)
• Deck-mount installation with an adjustable 2" flange to accommodate varying deck thicknesses; connects via 1/2" NPT male inlet to standard plumbing supply lines
• Integrated 18-gauge stainless steel drip pan with drop-in grid contains spills at the point of fill; the pan drains through a 1-1/4" drain fitting, keeping the work surface dry during service
• The "12" in the model number designates the 12" pedestal height; T&S also offers this station in shorter pedestal configurations (such as the B-1230) for operators working with standard-height glassware

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372
• Meets ADA requirements per ANSI/ICC A117.1

Dimensions: 10.25" D x 2.5" W x 23.25" H (overall packaged); drip pan approximately 12.62" W
