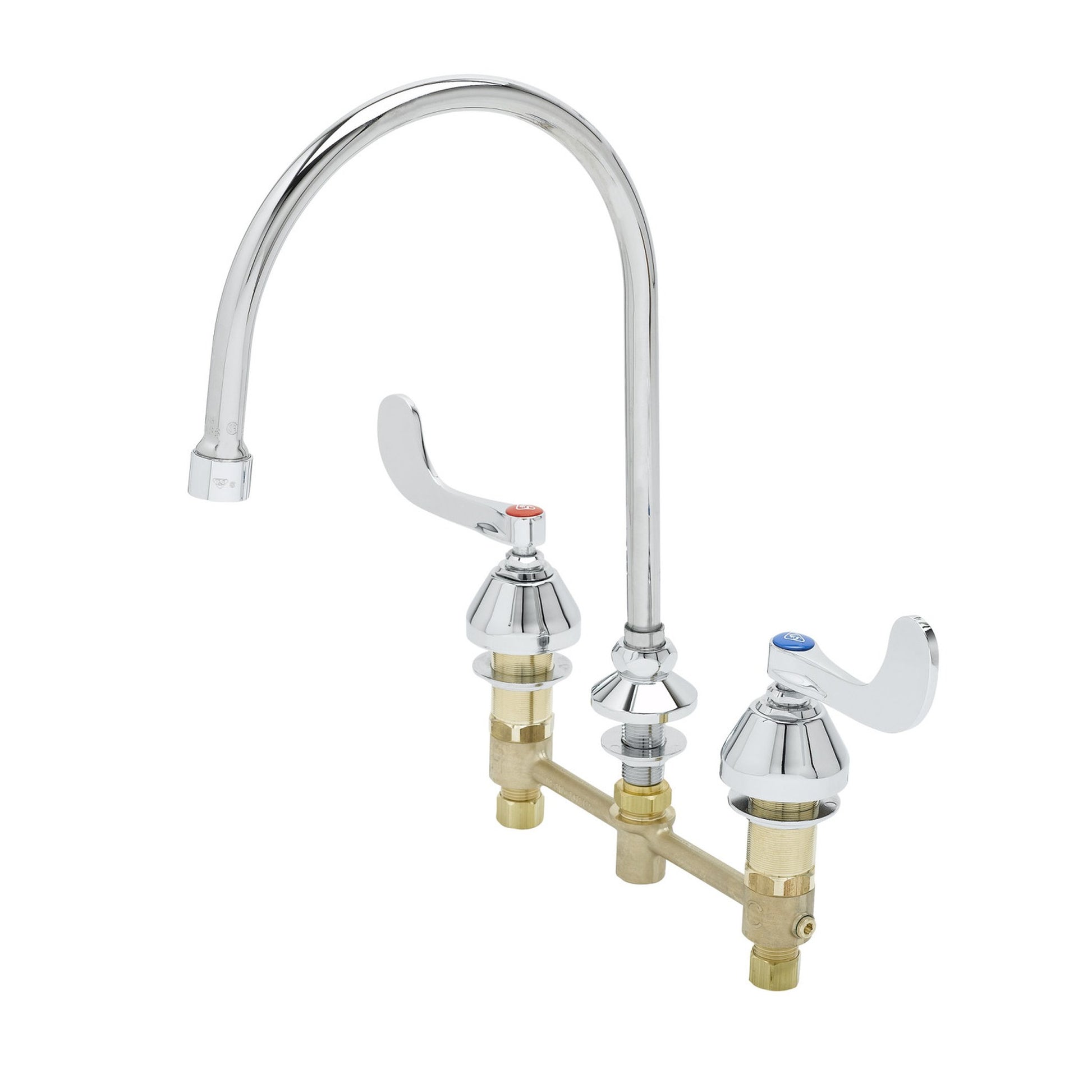

T&S Brass NSF Medical Lavatory Faucet Brass 8" Centers 2.2 GPM - B-2866-01QT-VRF

The T&S Brass B-2866-01QT-VRF is a deck-mount NSF-certified medical lavatory faucet designed for commercial handwashing applications in foodservice, healthcare, and institutional settings where hands-free or wrist-operated controls are required. It installs on 8" centers and delivers reliable, tamper-resistant water flow rated at 2.2 GPM.

• Deck-mounted concealed widespread mixing faucet that blends hot and cold water, suited for commercial handwashing sinks in foodservice and medical environments.

• Forged brass body construction with chrome-plated metal handles, escutcheons, and a polished chrome-plated brass tubular spout for corrosion resistance and durability.

• Overall faucet height is 12-5/16", spout height is 6-1/16" from deck to outlet, and spout reach is 8-3/4"; flow rate is 2.2 GPM; mounts on 8" centers.

• Features an 8-3/4" swivel gooseneck with a swivel-to-rigid conversion washer; connects via 1/2" NPSM male inlets with coupling nuts.

• Four-inch wrist-action handles allow operation without direct hand contact for sanitation compliance; quarter-turn Eterna compression cartridges with spring checks prevent cross-flow of water.

• Includes a vandal-resistant laminar flow device rated at 2.2 GPM; fits sink deck tops up to 1-1/4" thick.

Certifications:

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372.

• Meets ADA ANSI/ICC A117.1 requirements.

• CSA certified to NSF/ANSI/CAN 61 and NSF/ANSI/CAN 372 for drinking water system component standards and lead content compliance for both Canada and the United States.

Dimensions: Faucet Height: 12-5/16" | Spout Height: 6-1/16" | Spout Reach: 8-3/4" | Centers: 8" | Max Deck Thickness: 1-1/4"
