T&S Brass NSF Wall-Mount Pre-Rinse Faucet Cerama 8" Centers Add-On - B-0154-CR-C

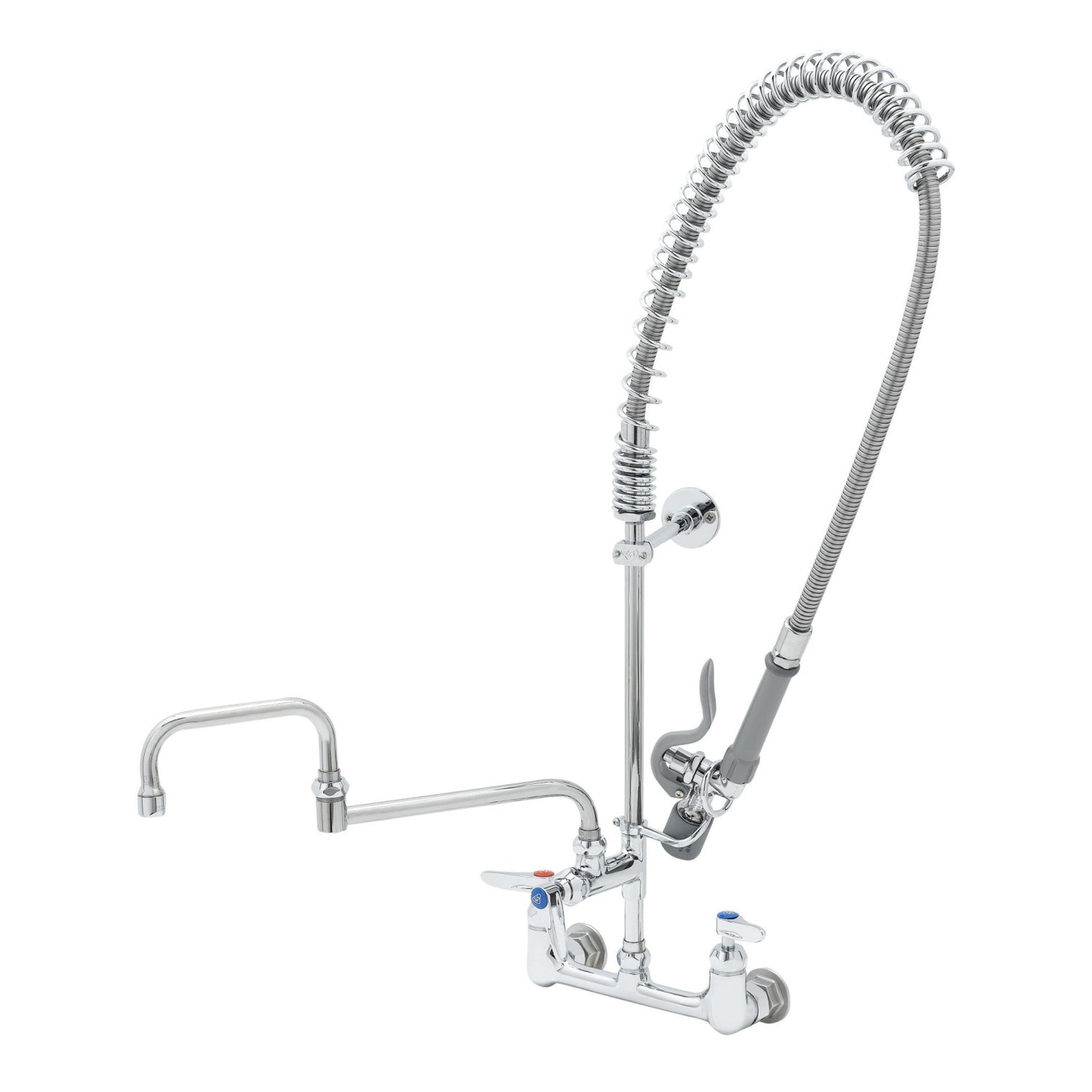

The T&S Brass B-0154-CR-C is a commercial NSF wall-mount pre-rinse faucet unit designed for warewashing stations in restaurants, institutions, and other foodservice operations that need both a spray rinse and an add-on fill faucet at a single sink location. It ships as a complete assembly, giving operators a fully functional dual-function setup ready for connection to standard 1/2" NPT plumbing.

• Commercial wall-mount pre-rinse unit with an overhead spring, spray valve holder, 15" double-joint swing nozzle (model 074X), and an add-on faucet (model B-0155-LNEZ) — serving both pre-rinse and pot-filling functions at one station
• Polished chrome-plated brass body with 1/4-turn Cerama ceramic cartridges and check valves; cartridges contain no seat washer, reducing leak risk and water use compared to compression-style cartridges
• 31-5/8" overall height; mounts on 8" adjustable centers with a 12" riser, 6" adjustable wall bracket included for stability
• Connects via 1/2" NPT female inlets; includes a 44" flexible stainless steel hose with heat-resistant handle, B-0107-C 0.65 GPM low-flow spray valve, and 2.2 GPM aerator on the add-on nozzle; operates between 20–125 psi and 40–140°F
• Overhead spring retracts the hose after use, keeping the work area clear; color-coded lever handles allow quick identification of hot and cold at a glance
• 2019 DOE PRSV Class I compliant; low-lead compliant; operating pressure range 20–125 psi suits most standard commercial water supply lines

• Certified to ASME A112.18.1/CSA B125.1
• Certified to NSF 61-Section 9 and NSF 372

Dimensions: 31-5/8" overall height; 8" faucet centers; 15" double-joint nozzle; 44" hose; 6" wall bracket; 12" riser
