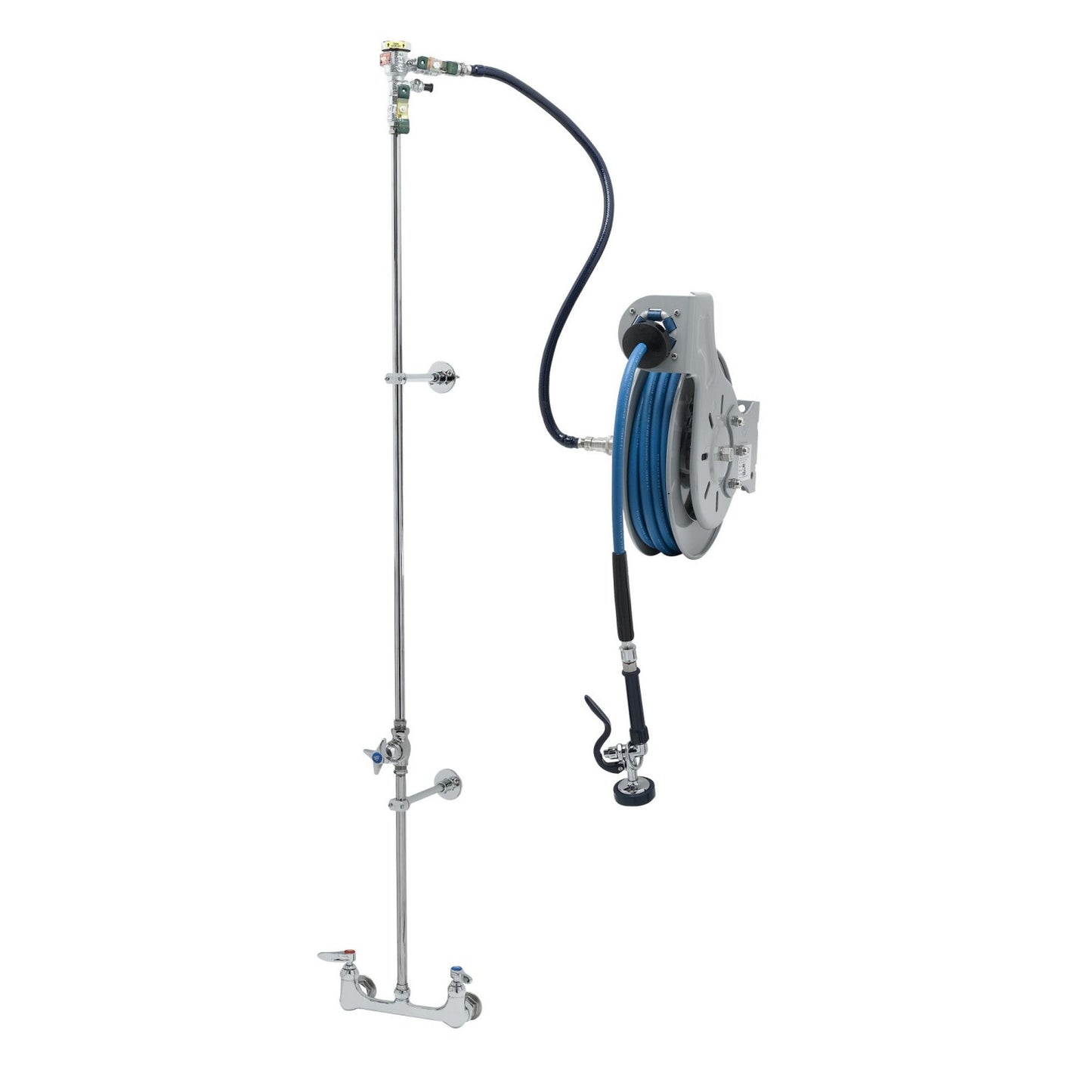

T&S Brass Open Epoxy Coated Hose Reel System with Vacuum - B-7232-U01XS1E

The T&S Brass B-7232-U01XS1E is a complete commercial open hose reel washdown system built for commercial kitchens, dishwashing areas, and foodservice sanitation stations that need a reliable, all-in-one wall-mounted hose management solution. It ships as a fully integrated assembly, combining an 8-inch wall mount mixing faucet, continuous pressure vacuum breaker, reel, hose, and spray valve in a single package.

• Commercial open hose reel system designed for washdown use, including an 8-inch wall mount mixing faucet, control valve, 16-inch and 40-inch risers, wall brackets, continuous pressure vacuum breaker, and a 36-inch flexible water hose connector with stainless steel quick disconnect.

• Constructed with a polished chrome-plated brass faucet body, risers, and spray valve body; chrome-plated metal handles, control valve, and vacuum breaker; and a stainless steel open reel with epoxy-coated steel construction.

• Hose is 3/8-inch ID by 35 feet, heavy-duty non-marking construction rated to 300 PSI.

• Includes an 8-inch wall mount mixing faucet with quarter-turn Eterna compression cartridges with spring checks, lever handles with color-coded indexes, and 1/2-inch NPT female inlets; centers are adjustable from 7-3/4 inches to 8-1/4 inches.

• The multi-fit bracket supports wall, ceiling, or under-counter mounting; the ratcheting system holds the hose at the deployed length and retracts automatically with a slight tug.

• Exposed piping and open reel design allow straightforward access for maintenance and repairs without disassembly.

• Certified to ASSE 1056.

Dimensions: N/A
