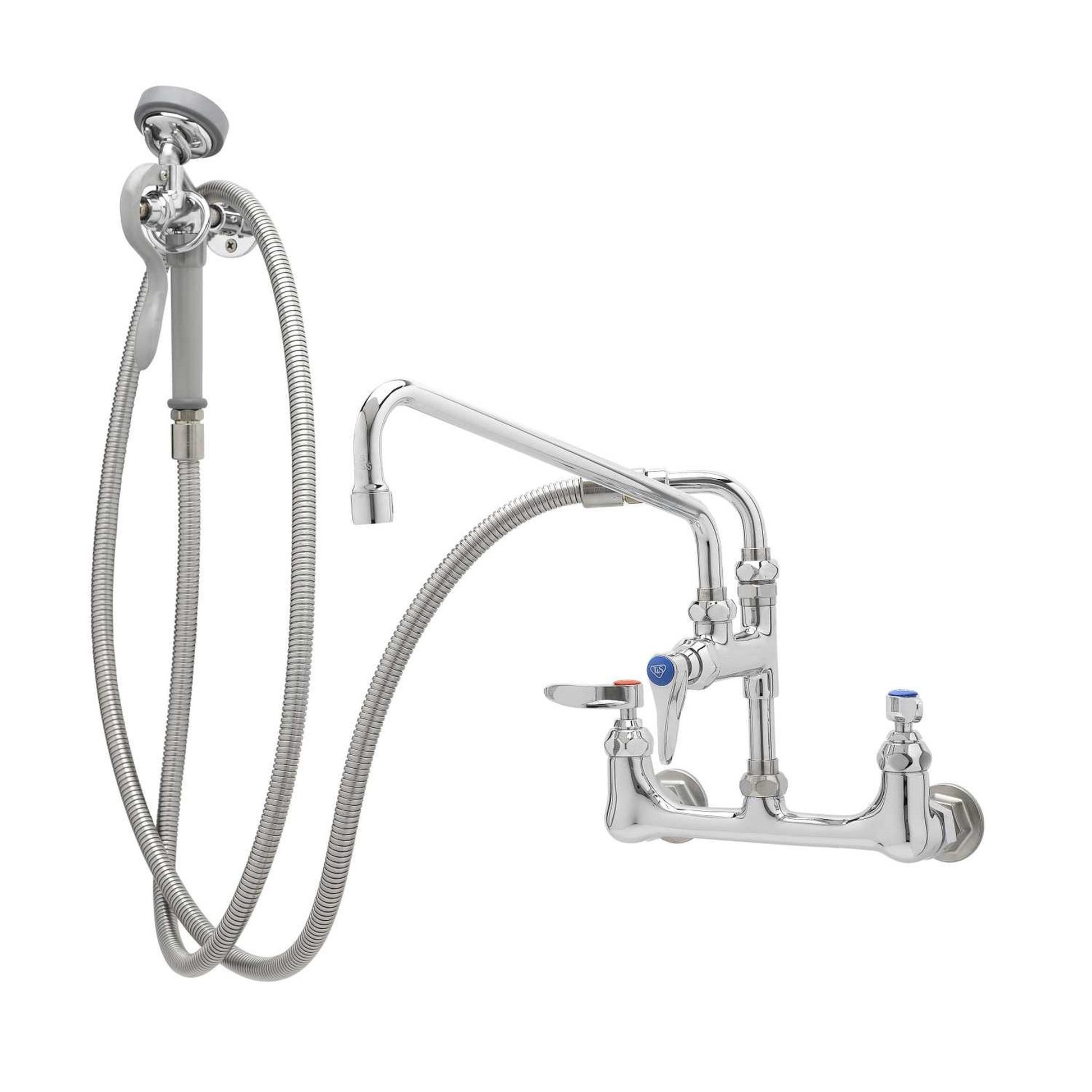

T&S Brass Pre-Rinse Spray Assembly Chrome Brass Wall Mount 8" Centers - B-0175

The T&S Brass B-0175 is a commercial wall mount pre-rinse spray assembly built for high-volume warewashing and food prep sink stations in restaurants, institutional kitchens, and other foodservice operations. It mounts to the wall on 8" adjustable centers and includes a complete spray assembly with add-on faucet, giving operators both a pre-rinse sprayer and a standard faucet at a single installation point.

• Commercial wall mount pre-rinse spray assembly designed for warewashing, sink stations, and food prep areas in commercial foodservice environments
• Polished chrome-plated brass body throughout, including add-on faucet, hanger hook, tubular nozzle, swivel arm, and spray valve, with a stainless steel flex hose and chrome-plated metal handles
• Wall mounts on 8" adjustable centers with a 12" swing nozzle on the add-on faucet and a 104" flexible stainless steel hose with heat-resistant handle for extended reach
• Connects via 1/2" NPT female inlets; includes a 90-degree swivel adapter arm, quick disconnect coupling, and wall hook for hose storage when not in use
• Quarter-turn Eterna compression cartridges with spring checks prevent cross-flow between hot and cold water supplies; lever handles feature color-coded indexes for fast hot/cold identification
• Spray valve delivers 1.15 GPM at 60 psi, meeting 2019 DOE pre-rinse spray valve Class II requirements; operating pressure range is 20-125 psi and temperature range is 40°F-140°F

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372

Dimensions: 16.69" L x 8" W x 12.13" H
