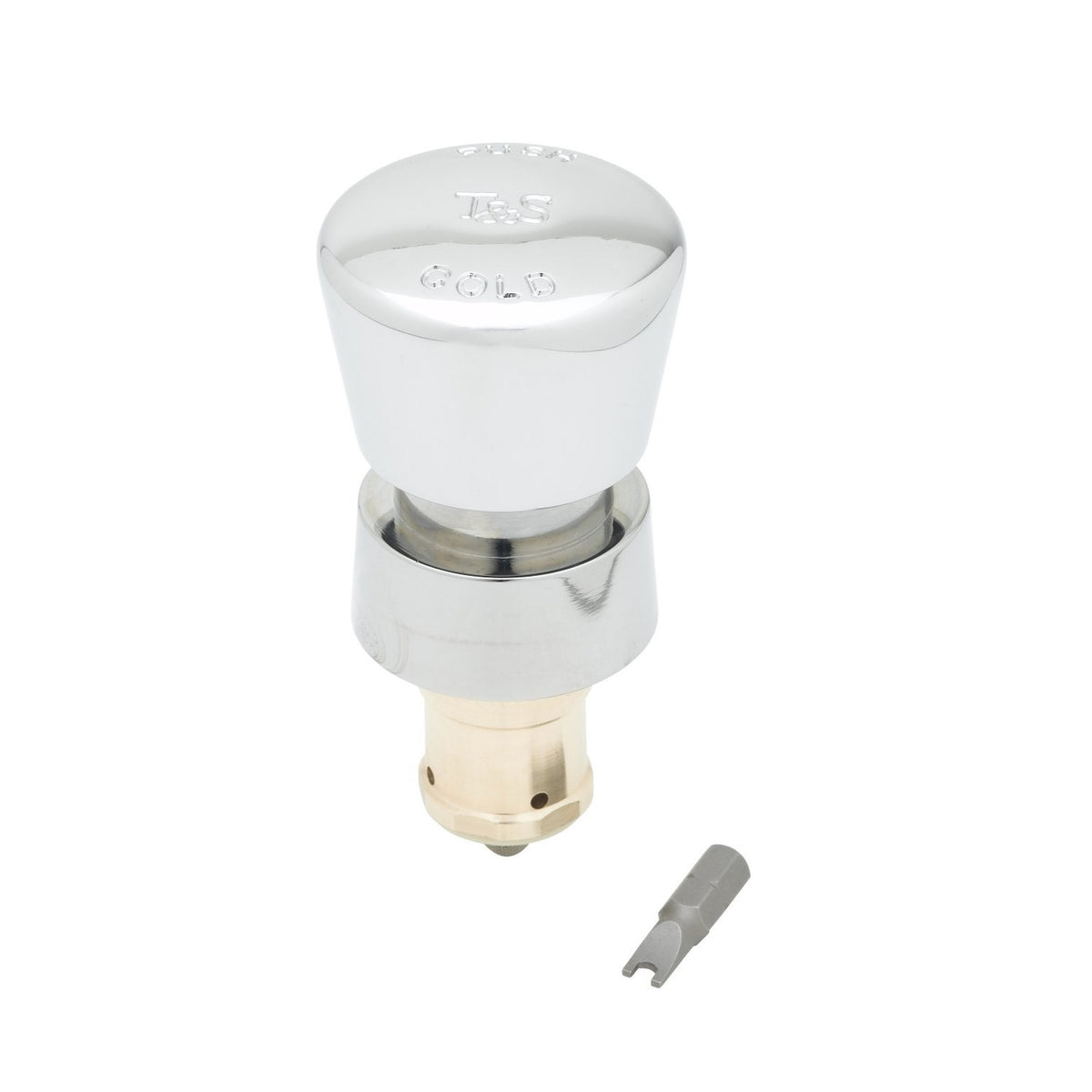

T&S Brass Self-Closing Metering Cartridge Cold Push Button - 238AC

The T&S Brass 238AC is a self-closing metering faucet cartridge for commercial restroom and foodservice plumbing applications, designed as a direct OEM replacement for T&S metering faucets. It controls cold water flow automatically and is built for high-traffic, commercial environments where water conservation and vandal resistance are priorities.

• Replacement metering cartridge for cold water supply, compatible with T&S Brass commercial faucet models including B-0831, B-0831-VF05, and B-2360-01
• Chrome-plated brass body and chrome-plated metal cap construction for corrosion resistance in commercial plumbing installations
• Measures 1-3/4 in. diameter x 3-5/16 in. H (not including filter washer); includes filter washer
• Metering cycle is field-adjustable from 10 to 30 seconds, allowing operators to set flow duration based on code or facility requirements
• Vandal-resistant design includes an anti-tamper screw and a matching spanner bit; chrome finish on the push button cap increases scratch and rust resistance
• Includes the cold-indicating push button cap for temperature identification at point of use; sold individually; carries a 1-year limited warranty against defects in material and workmanship
• Certified to ASME A112.18.1 / CSA B125.1, NSF 61-Section 9, and NSF 372
• ADA compliant per ANSI/ICC A117.1; lead law compliant

Dimensions: 1-3/4 in. dia. x 3-5/16 in. H (not including filter washer)
