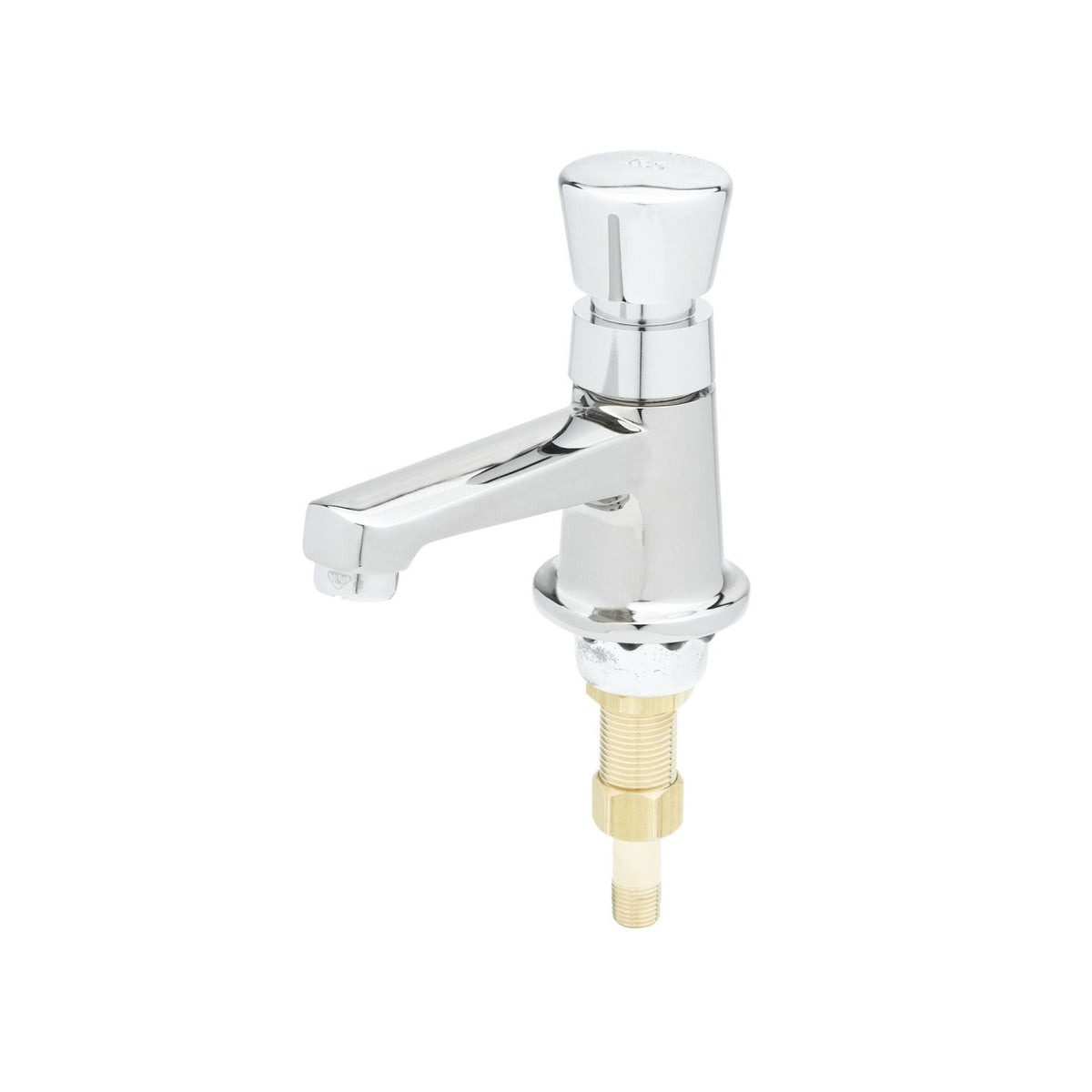

T&S Brass Self-Closing Metering Sill Faucet 0.5 GPM, 1/2" NPSM - B-0712-F05

The T&S Brass B-0712-F05 is a commercial self-closing metering sill faucet designed for single-temperature, deck-mount installation in foodservice, institutional, and high-traffic restroom or hand-sink applications where water conservation and push-button operation are required. At 0.5 GPM, it delivers a restricted flow rate suited for handwashing stations where code compliance or water-use reduction is a priority.

• Single-hole, single-temperature, deck-mount sill faucet with a self-closing metering cartridge and push-button cap that automatically shuts off water flow after each use
• Body is constructed of polished chrome-plated brass, providing corrosion resistance for commercial and institutional environments
• Inlet connection is 1/2" NPSM male shank, compatible with standard commercial plumbing rough-in configurations; includes a 1/4" IPS union-type tailpiece; spout center-to-center distance is 3 inches with spout height approximately 1-1/4 inches above the deck surface
• Flow rate is 0.5 GPM via a non-aerated spray device outlet, distinguishing this F05 variant from higher-flow models in the B-0712 line such as the B-0712 (2.2 GPM) or B-0712-WS (1.5 GPM)
• Chrome-plated brass construction resists corrosion under continuous commercial use; the metering cartridge is a serviceable component, and replacement cartridges are available separately through T&S Brass
• Confirm the F05 suffix when ordering — the B-0712 model line includes multiple flow rate and handle configurations; this unit is single-temperature only and does not mix hot and cold water independently

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372
• Meets ADA ANSI/ICC A117.1 requirements

Dimensions: Spout reach 4-1/8", spout height 7/8" above deck, overall height 4-5/8"; 1/2" NPSM male shank inlet; 3" center-to-center spout distance
