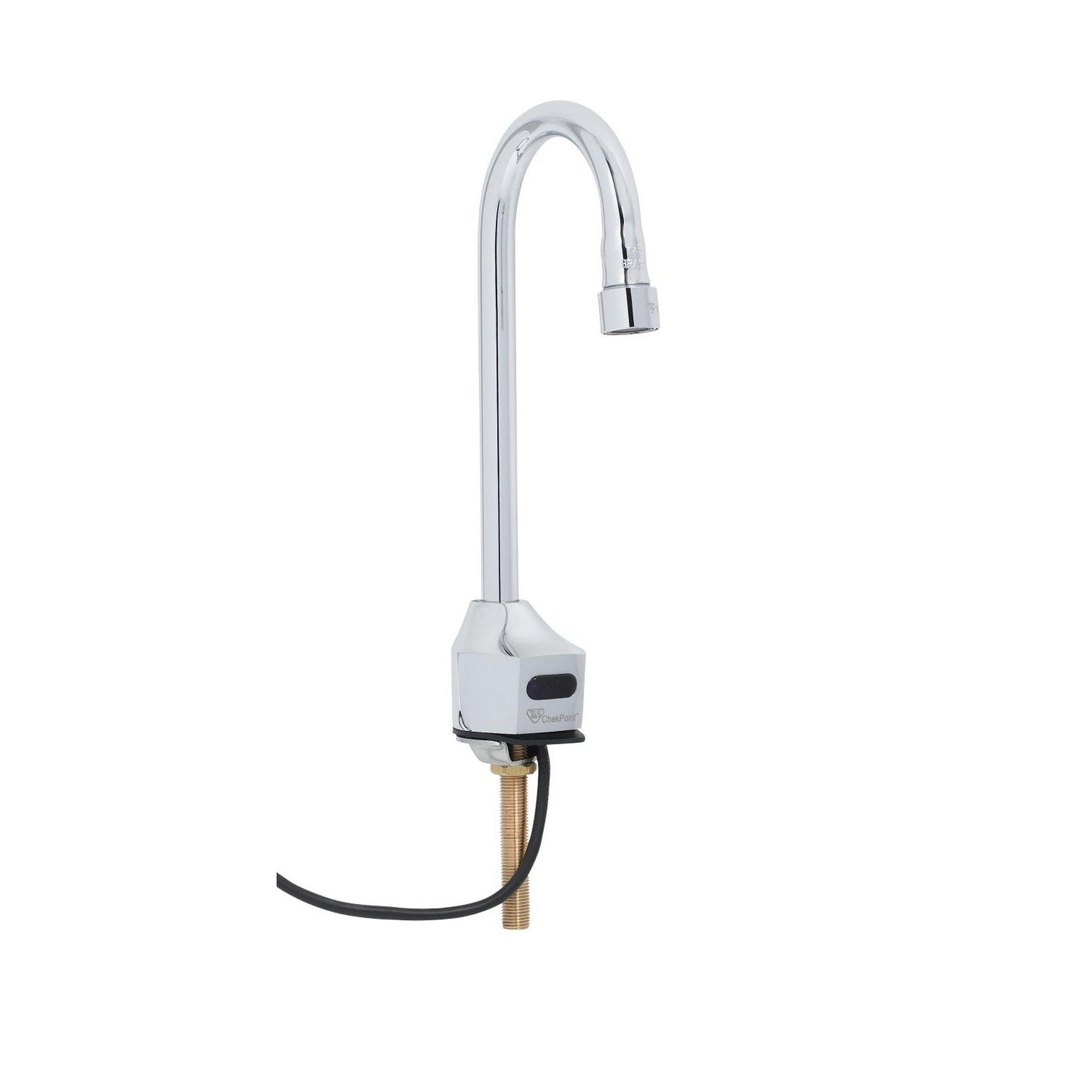

T&S ChekPoint Electronic Sensor Faucet Deck Mount Gooseneck NSF - EC-3100-TMV

The T&S Brass ChekPoint EC-3100-TMV is a commercial touchless sensor faucet designed for single-hole deck mount installation at handwashing sinks, bar sinks, and foodservice sanitation stations where hands-free operation is required by code or operator preference. This model includes a thermostatic mixing valve (TMV) with ASSE 1070 certification, setting it apart from the standard EC-3100 for applications where scald protection and consistent output temperature are a requirement.

• Hands-free commercial electronic sensor faucet for deck mount installation in restaurant, institutional, and foodservice environments requiring touchless operation
• Polished chrome plated brass body with a 4 1/8" rigid gooseneck spout; includes 18" flexible stainless steel supply hoses with 3/8" compression connections
• Faucet height is 11 1/4" with a 4 1/8" spout spread and 7 5/16" clearance; requires a single hole deck mount; control module box measures 3 5/8" x 4 3/16" x 2" deep
• Thermostatic temperature mixing valve with integral check valves provides scald protection; operates on AC (plug-in transformer) or DC (4 AA batteries); runs on 100-240 VAC adapter
• Water-resistant control module with internal flow control switches for adjusting auto time-out and shut-off delay settings; includes an optional auto flush feature that runs water for 30 seconds after 12 hours of inactivity; low battery LED indicator light included
• Includes a 2.2 GPM vandal-resistant aerator; the T&S Brass three-year limited warranty applies; replacement parts including control modules, aerators, and sensor cables are available separately

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, UL 1951, and ASSE 1070
• Meets ADA ANSI/ICC A117.1 requirements

Dimensions: Spout Length: 4 1/8" | Faucet Height: 11 1/4" | Faucet Width: 2 1/4" | Control Module: 3 5/8" W x 4 3/16" H x 2" D
