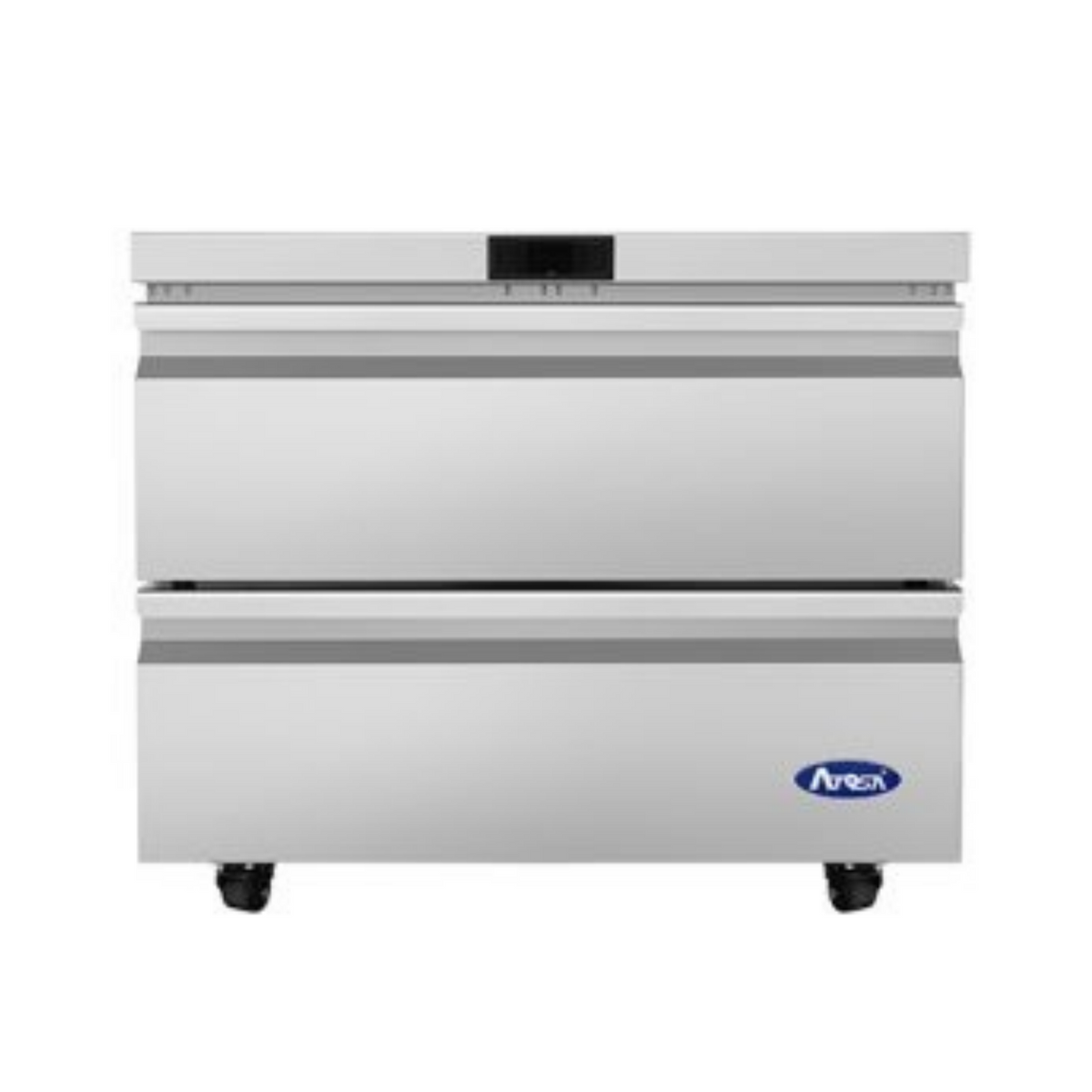

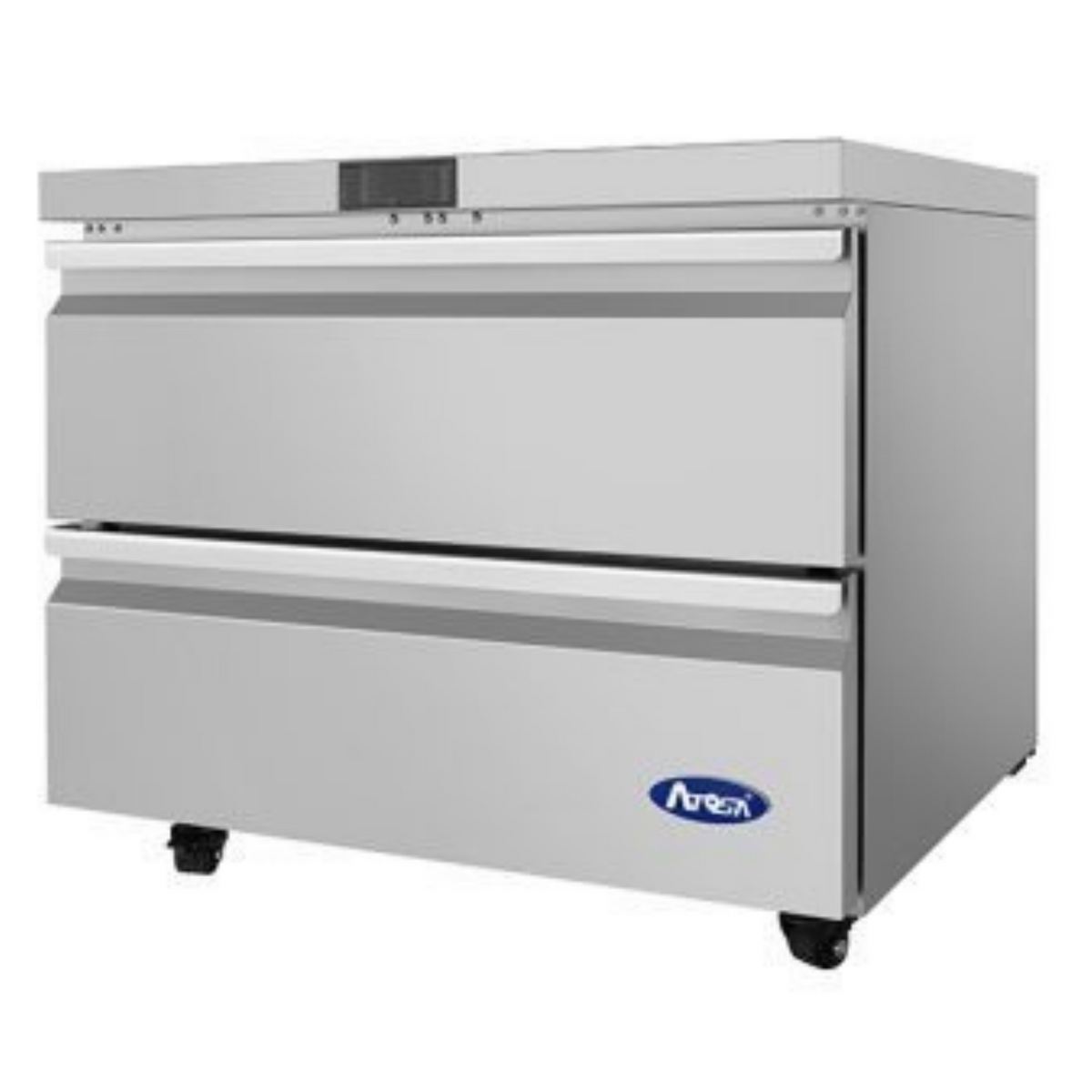

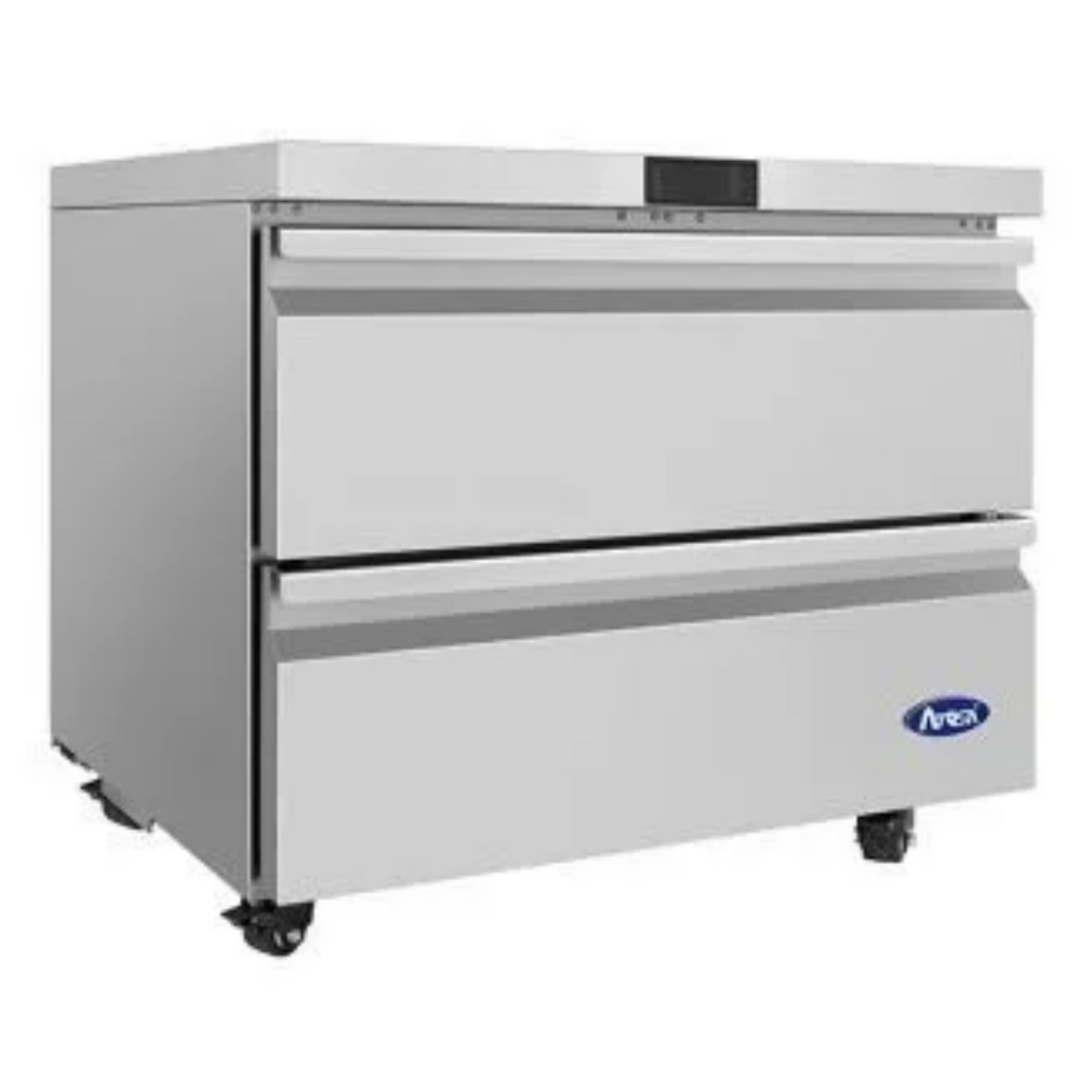

Atosa Stainless Steel Undercounter Refrigerator 2 Drawers 36" - AUR36D2

The Atosa AUR36D2 is a 36-3/8" wide, two-drawer undercounter refrigerator for restaurants, bars, cafes and prep lines that need cold storage under the work surface at the station. It holds 9 cu. ft. and keeps 35°F to 38°F with an electronic temperature controller. A 1/6 HP self-contained system uses R290 hydrocarbon refrigerant and runs on 115V, drawing 3.4 A. The interior, exterior and reinforced top are all stainless steel, and the unit rolls on pre-installed 2" swivel plate casters. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Two refrigerated drawers with 9 cu. ft. of total storage in a 36-3/8" wide by 30" deep cabinet
• Electronic temperature controller holds 35°F to 38°F
• Stainless steel exterior and interior, with a reinforced stainless steel top

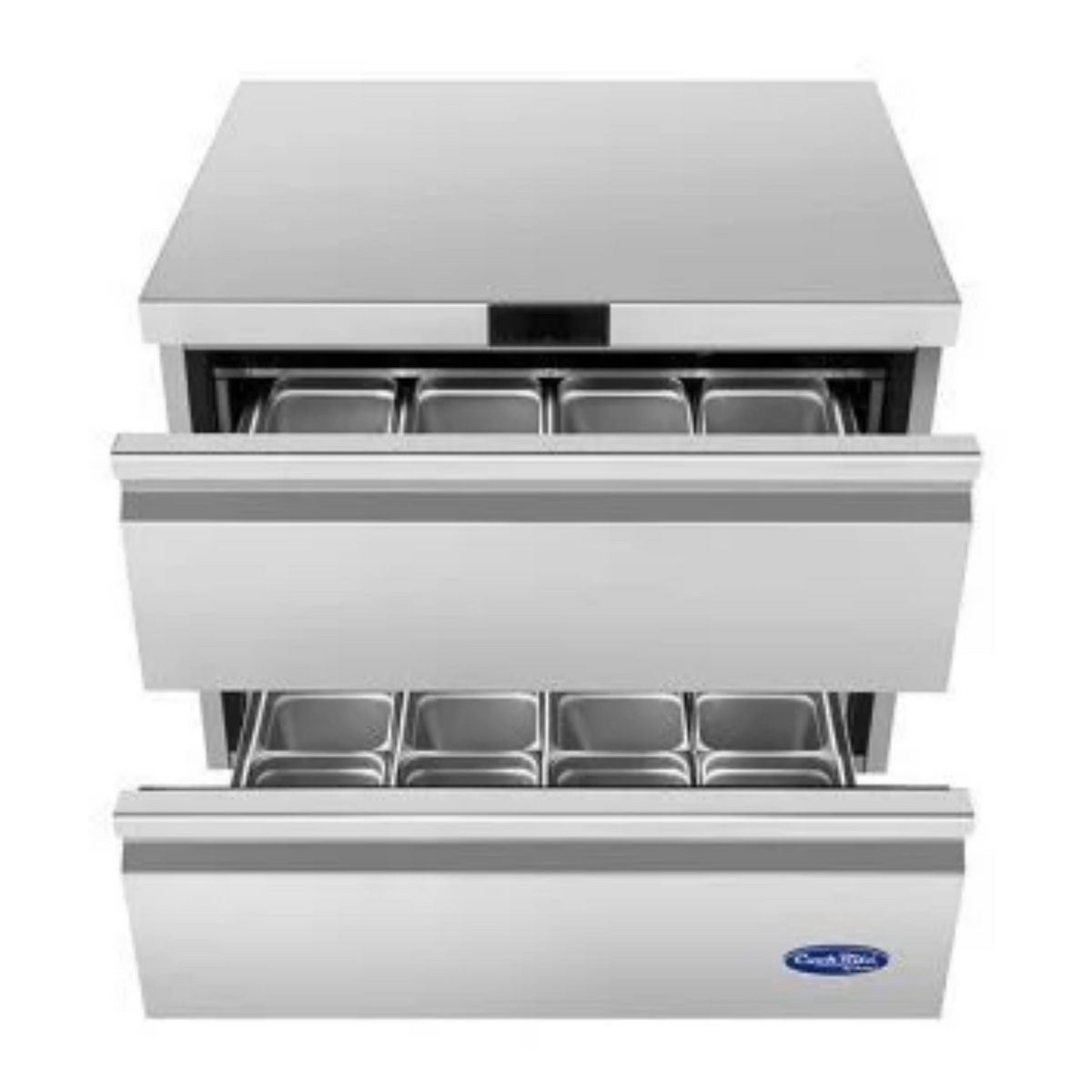

• Comes with 1/6 size food pans for organizing ingredients in the drawers
• Magnetic drawer gaskets seal without latches and are NSF approved
• Recessed drawer handles keep the front flush
• R290 hydrocarbon refrigerant with a 1/6 HP compressor
• Pre-installed 2" heavy-duty swivel plate casters, part B0604434 (with brake) and B0604433 (no brake)
• Optional 1.2" and 1.5" low-profile swivel plate casters, or 4" and 5" swivel stem casters
• cETLus listed and ETL Sanitation certified

Atosa AUR36D2 specifications

Brand	Atosa
Model number	AUR36D2
Product type	Undercounter refrigerator with drawers
Drawers	2
Capacity	9 cu. ft.
Exterior width	36-3/8"
Exterior depth	30"
Exterior height	32-1/2"
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigeration	Self-contained
Refrigerant	R290
Compressor	1/6 HP
Electrical	115 V / 60 Hz / 1 phase, 3.4 A
Plug	NEMA 5-15P
Pans included	1/6 size pans
Exterior material	Stainless steel, reinforced stainless steel top
Interior material	Stainless steel
Drawer gaskets	Magnetic, NSF approved
Handles	Recessed
Casters	2" heavy-duty swivel plate casters, pre-installed
Net weight	207 lb
Shipping weight	271 lb
Certifications	cETLus, ETL Sanitation
Warranty	3 years parts and labor, 5 years compressor

Frequently asked questions

What outlet does the Atosa AUR36D2 need?

It needs a standard grounded 115V, 60 Hz, single-phase receptacle that accepts its NEMA 5-15P plug, and it draws 3.4 A. Plug it straight into the wall. Atosa's warranty does not cover damage caused by extension cords, low voltage or voltage drops.

Is the AUR36D2 a refrigerator or a freezer?

It is a refrigerator. It holds 35°F to 38°F. For frozen storage in a two-drawer undercounter unit, the freezer version in the same line is the Atosa AUF36D2, rated for -8°F to 1°F.

Will it fit through a standard doorway?

Yes. At 30" deep it fits through a 36" doorway, and at 32-1/2" tall it is far below an 80" door opening. It is 36-3/8" wide, so move it depth-first through the opening.

How much does it hold?

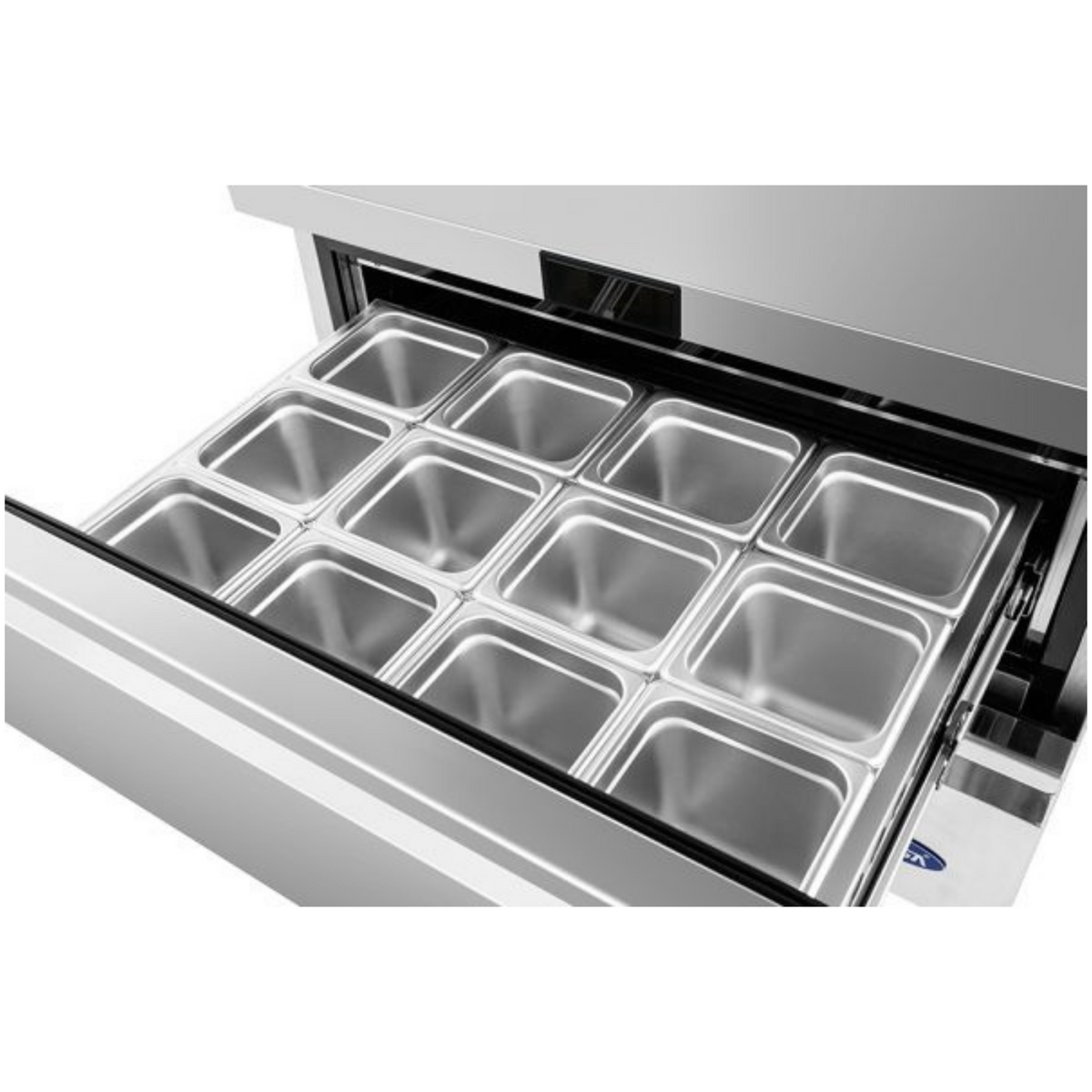

It has 9 cu. ft. of refrigerated storage across two drawers, and it comes with 1/6 size food pans for organizing ingredients.

What certifications does it have?

It is cETLus listed and ETL Sanitation certified. cETLus means it meets US and Canadian electrical safety standards. ETL Sanitation means it meets food equipment sanitation standards, which health inspectors look for in commercial kitchens. The drawer gaskets are also NSF approved.

What warranty comes with the AUR36D2?

Atosa covers parts and labor for 3 years and the sealed compressor for 5 years. Claims go directly to Atosa and need the model number, serial number, proof of purchase and installation date. The extra compressor years cover only the sealed compressor parts. They do not cover the cabinet, controls, refrigerant, fan assembly or other electrical components. The warranty excludes damage from alteration, neglect, abuse, misuse, accidents, transit or installation, fire, flood, acts of God, power failure, extension cords and low voltage. Atosa also sells an extended warranty of up to 5 years.

What caster options are available?

The unit ships with 2" heavy-duty swivel plate casters already installed. Factory options are 1.2" and 1.5" low-profile swivel plate casters, or taller 4" and 5" swivel stem casters. Changing casters changes the overall height.

How does the AUR36D2 compare with other Atosa AUR models?

The AUR36D2 is the 36" two-drawer model. The AUR27D2 is a narrower 27-1/2" two-drawer unit with 6.5 cu. ft. The AUR48D4 is 48-1/4" wide with four drawers and 12.2 cu. ft. The AUR36SD has the same 36-3/8" by 30" by 32-1/2" footprint but uses two hinged solid doors with shelves instead of drawers, and holds 8.6 cu. ft.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
