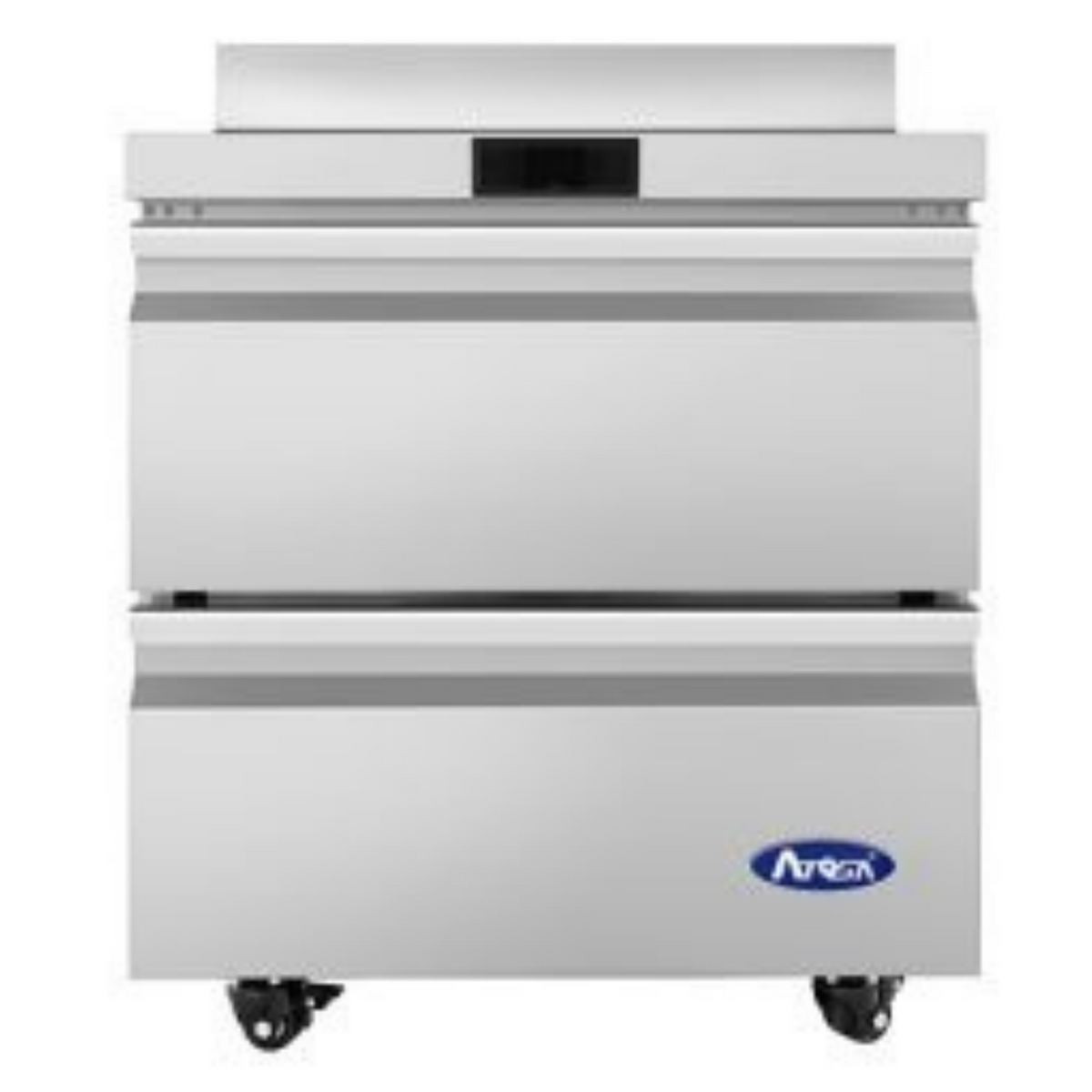

Atosa Stainless Steel Worktop Freezer with Backsplash - 2 Drawers - AWF27D2

The Atosa AWF27D2 is a 27-1/2" wide, two-drawer worktop freezer with a backsplash. It is built for sandwich lines, prep stations and small commercial kitchens that need frozen product stored right under a work surface. It holds 6.53 cu. ft. at -8°F to 1°F, measures 27-1/2" wide by 30" deep by 38-7/8" high, and runs on 115 V with R290 refrigerant. The interior and exterior are stainless steel, with a reinforced stainless steel top and backsplash, and each drawer takes a full-size 6" deep food pan. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Two freezer drawers. Each comes standard with one full-size (12" x 20") 6" deep pan.
• Each drawer can also hold six 1/6-size pans for portioned or fractional storage.
• Electronic temperature controller holds -8°F to 1°F.
• Reinforced stainless steel worktop with backsplash gives you a prep surface on top of the freezer.
• Stainless steel interior and exterior.
• Magnetic drawer gaskets seal each drawer.
• Recessed drawer handles stay flush with the front, so nothing sticks out into the aisle.
• Uses R290 hydrocarbon refrigerant.
• Comes with 5" swivel stem casters installed, so you can roll it out for cleaning and service.
• Plugs into a standard 115 V outlet with a NEMA 5-15P plug.
• cETLus listed and ETL Sanitation certified.

Atosa AWF27D2 specifications

Brand	Atosa
Model number	AWF27D2
Product type	Worktop freezer with drawers and backsplash
Drawers	2
Capacity	6.53 cu. ft.
Pan capacity	1 full-size 12" x 20" x 6" deep pan per drawer (included), or 6 1/6-size pans per drawer
Exterior width	27-1/2"
Exterior depth	30"
Exterior height	38-7/8"
Temperature range	-8°F to 1°F
Temperature control	Electronic controller
Refrigerant	R290
Electrical	115 V / 60 Hz / 1-phase
Plug	NEMA 5-15P
Exterior material	Stainless steel
Interior material	Stainless steel
Top	Reinforced stainless steel worktop with backsplash
Drawer hardware	Magnetic drawer gaskets, recessed handles
Casters	5" swivel stem casters, pre-installed
Net weight	143 lb
Shipping weight	198 lb
Certifications	cETLus, ETL Sanitation
Warranty	3-year parts and labor, 5-year compressor (years 4 and 5 cover sealed compressor parts only)

Frequently asked questions

What outlet does the Atosa AWF27D2 need?

It needs a standard grounded 115 V, 60 Hz, single-phase outlet. The unit has a NEMA 5-15P plug, which fits a common NEMA 5-15R wall outlet.

Will the AWF27D2 fit through a standard doorway?

Yes. The unit is 30" deep and 27-1/2" wide, so it fits through a 36" doorway with room to spare. At 38-7/8" high it is also far below a standard 80" door opening.

Is the AWF27D2 a freezer or a refrigerator, and what temperature does it hold?

It is a freezer. The electronic controller holds -8°F to 1°F. If you need refrigerated drawers in the same size, the matching model is the Atosa AWR27D2, which holds 35°F to 38°F.

How much does the AWF27D2 hold?

It holds 6.53 cu. ft. across two drawers. Each drawer comes with one full-size 12" x 20" pan, 6" deep, or you can set it up with six 1/6-size pans instead.

What certifications does the AWF27D2 have?

It is cETLus listed and ETL Sanitation certified. cETLus means Intertek has tested it to U.S. and Canadian electrical safety standards. ETL Sanitation means it meets the food equipment sanitation standards health inspectors expect in a commercial kitchen.

What warranty comes with the AWF27D2?

Atosa covers the unit for 3 years on parts and labor, and covers the sealed compressor for 2 more years, for 5 years total on the compressor. Those extra compressor years cover only the sealed compressor parts. They do not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical parts. Warranty claims go directly to Atosa, and you need the model number, serial number, proof of purchase and installation date. Atosa sells an extended warranty of up to 5 years.

How does the AWF27D2 compare with other Atosa models?

The AWR27D2 is the refrigerator version: same 27-1/2" x 30" x 38-7/8" cabinet and 6.53 cu. ft., but it holds 35°F to 38°F. The AWF27SD is a 27" worktop freezer with a solid door and shelves instead of drawers, and it holds -8°F to 0°F. The AUF27D2 is a two-drawer undercounter freezer with no backsplash, built to slide under an existing counter. If you need more room, the AWF48D4 is a 48-1/4" wide, four-drawer worktop freezer with 12.22 cu. ft.

Does the AWF27D2 replace the Atosa MGF8428GR?

Yes. The AWF27D2 is Atosa's current model in the spot the MGF8428GR used to fill, a 27" worktop freezer with drawers and a backsplash, under Atosa's newer AWF model numbers.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
