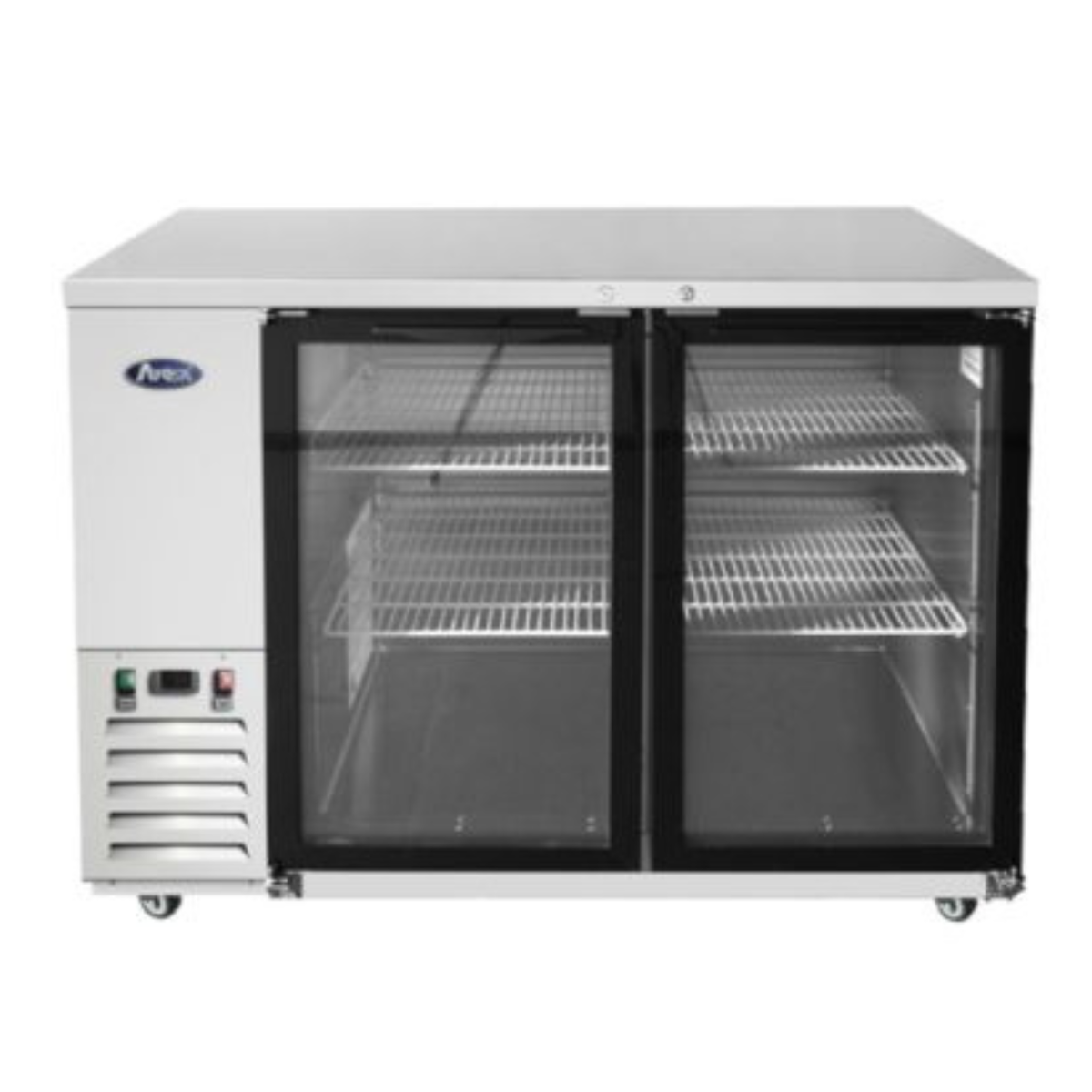

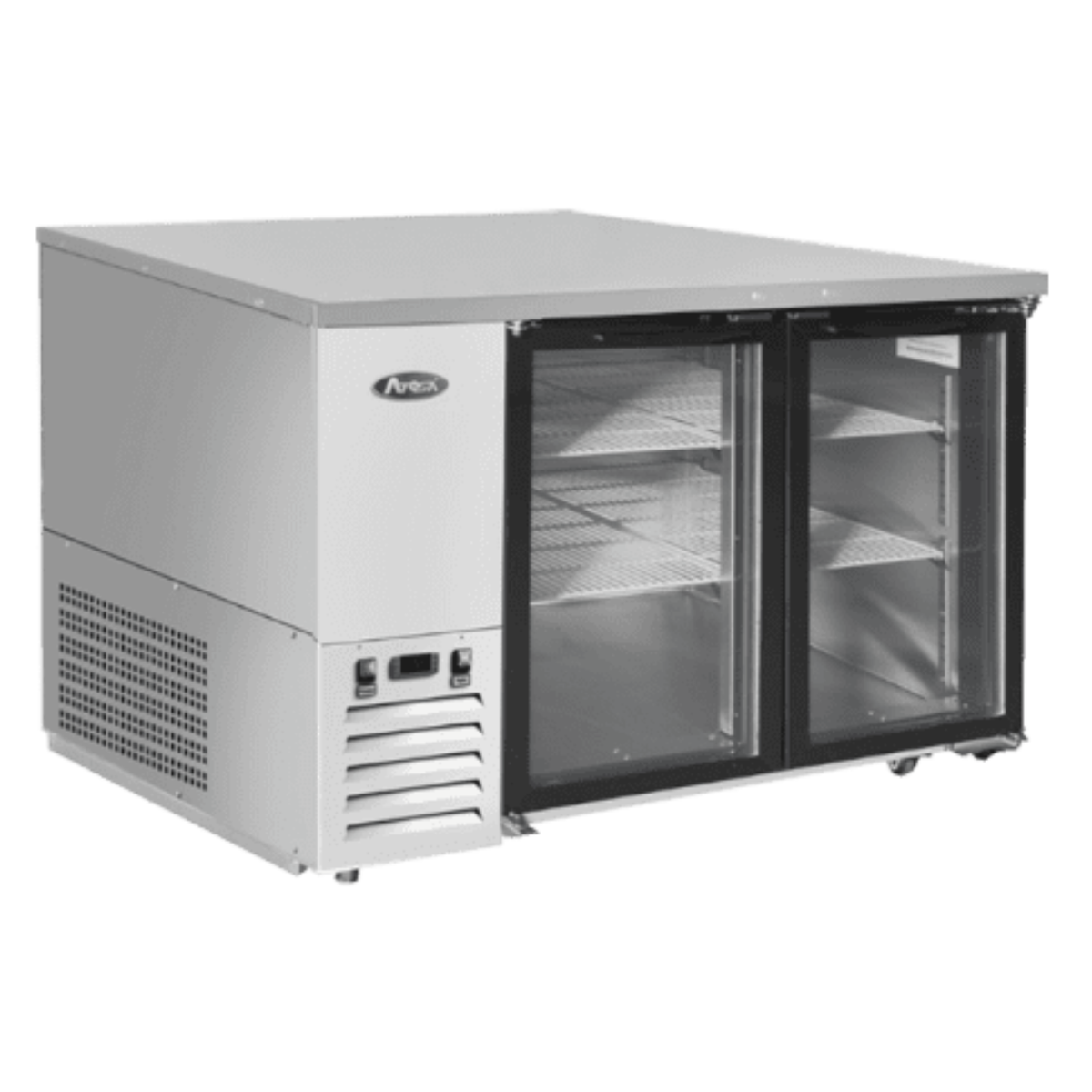

Atosa Back Bar Cooler Stainless Steel 2 Glass Doors 48" Shallow SBB48GGRAUS1

The Atosa SBB48GGRAUS1 is a 48" two-section shallow depth back bar cooler with two locking glass doors. It is built for bars, restaurants, hotel lounges and taprooms that need to show chilled beverages in a tight back bar run. The cabinet is 24-1/2" deep and 40-1/8" high, with 11.5 cu. ft. of storage on four epoxy-coated shelves. An electronic controller holds 35°F to 38°F, and the self-contained side-mount system runs on R290 refrigerant with a 1/7 HP compressor on a standard 115V circuit drawing 2.3 A. East Bay Restaurant Supply ships this model with free shipping.

Key features

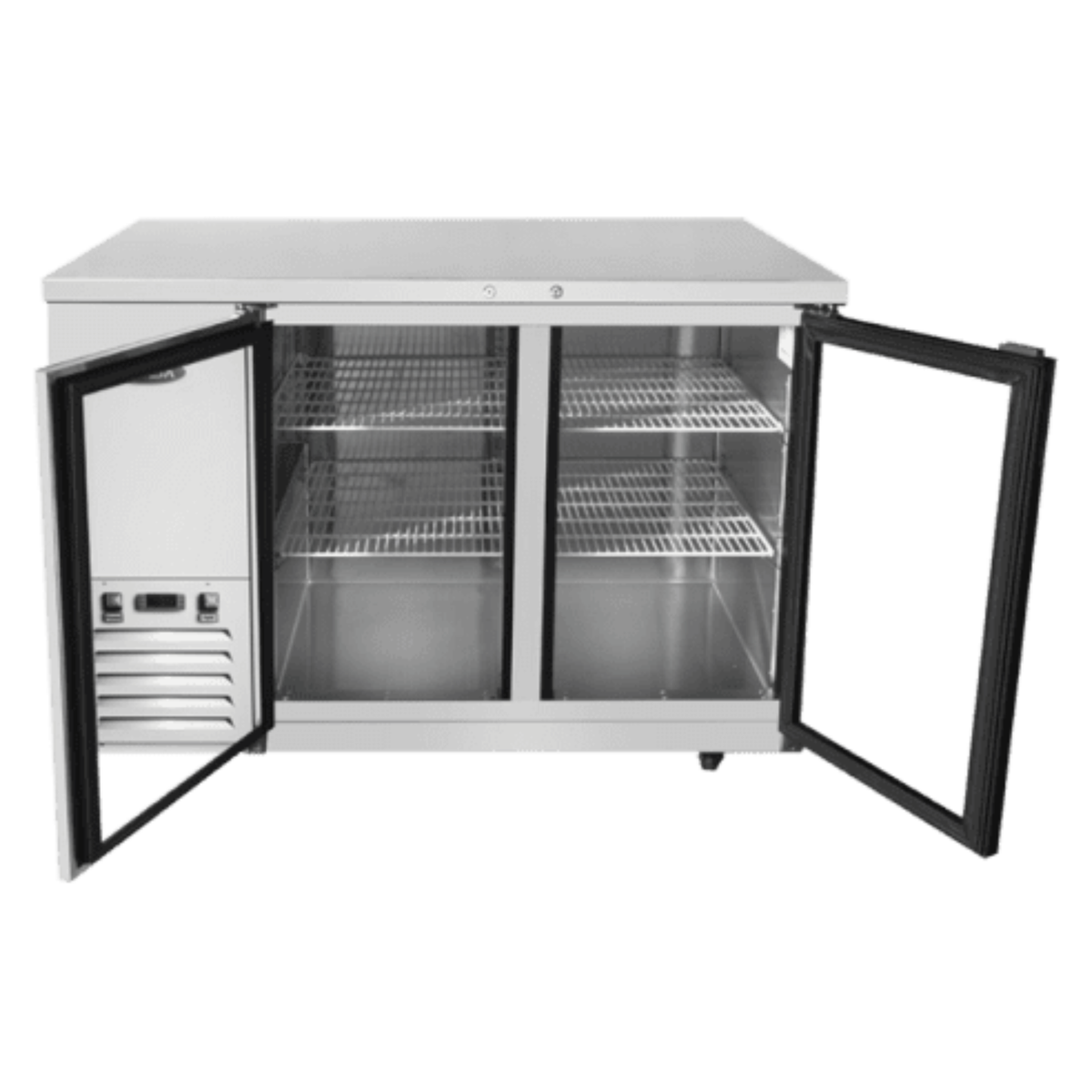

• Two swing glass doors with standard door locks keep stock visible and secure after hours
• Shallow 24-1/2" depth fits back bar runs where a full-depth cooler will not
• 11.5 cu. ft. capacity across two sections with four pre-installed epoxy-coated shelves
• Electronic temperature controller holds 35°F to 38°F
• Self-contained side-mount refrigeration with a slide-out compressor assembly for easier service
• 1/7 HP compressor running on R290 hydrocarbon refrigerant
• LED interior lighting for product visibility through the glass doors
• Magnetic door gaskets seal the doors
• Stainless steel exterior, interior and top
• Pre-installed 2" casters
• 115V, 2.3 A, cord and NEMA 5-15P plug

Atosa SBB48GGRAUS1 specifications

Brand	Atosa
Model number	SBB48GGRAUS1
Product type	Shallow depth back bar cooler (refrigerator)
Sections / doors	2 sections, 2 locking swing glass doors
Capacity	11.5 cu. ft.
Exterior width	48"
Exterior depth	24-1/2"
Exterior height (overall)	40-1/8"
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigeration	Self-contained, side mount, slide-out compressor assembly
Refrigerant	R290
Compressor	1/7 HP
Electrical	115 V / 60 Hz / 1 phase, 2.3 A
Plug	NEMA 5-15P
Shelves	4 epoxy-coated shelves
Exterior material	Stainless steel, stainless steel top
Interior material	Stainless steel
Lighting	LED interior
Door seal	Magnetic gaskets
Casters	2", pre-installed
Net weight	205 lb
Shipping weight	249 lb
Certifications	cETLus, ETL-Sanitation; conforms to UL 471, certified to CSA C22.2 No. 120
Warranty	3 years parts and labor, 5 years on the sealed compressor

Frequently asked questions

What electrical connection does the Atosa SBB48GGRAUS1 need?

It plugs into a standard 15 A, 125 V receptacle using its NEMA 5-15P plug. The unit runs on 115 V, 60 Hz, single phase and draws 2.3 A.

Is this a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds 35°F to 38°F, which suits bottled and canned beer, soft drinks and other chilled beverages.

Will it fit through a standard doorway?

Yes. At 24-1/2" deep it passes through a 36" doorway, and at 40-1/8" high it is well under an 80" door opening.

How much does it hold?

It holds 11.5 cu. ft. across two sections on four epoxy-coated shelves. The shelves are coated to resist rust and corrosion in humid conditions.

What certifications does it have?

It is cETLus and ETL-Sanitation listed. cETLus covers electrical safety for the US and Canada (UL 471 and CSA C22.2 No. 120), and ETL-Sanitation shows it meets North American sanitation standards, which health inspectors look for in commercial kitchens and bars.

What warranty comes with it?

Atosa covers the cabinet and all parts for 3 years parts and labor, and covers the sealed compressor for 2 more years, 5 years in total. The extra compressor coverage applies only to the sealed compressor parts. It does not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical components. Claims go directly through Atosa and need the model number, serial number, proof of purchase and installation date. Compressor coverage can be voided if R290 service procedures are not followed.

Are extra shelves available?

Yes. Atosa sells extra shelves with four shelf clips per shelf. The top left shelf is part number W040237801, and the top right and bottom shelves are part number W040237701.

How does it differ from other Atosa 48" back bar coolers?

The SBB48GRAUS1 is the same size and capacity but has solid doors. The SBB48GGRAUS2 is the glass door version with a black exterior. The SBB48SGGRAUS1 uses sliding glass doors instead of swing doors. For more capacity at the same 24-1/2" depth, the SBB59GGRAUS1 is 57-3/4" wide with 15 cu. ft., and the SBB69GGRAUS1 is 68" wide with 18.6 cu. ft.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
