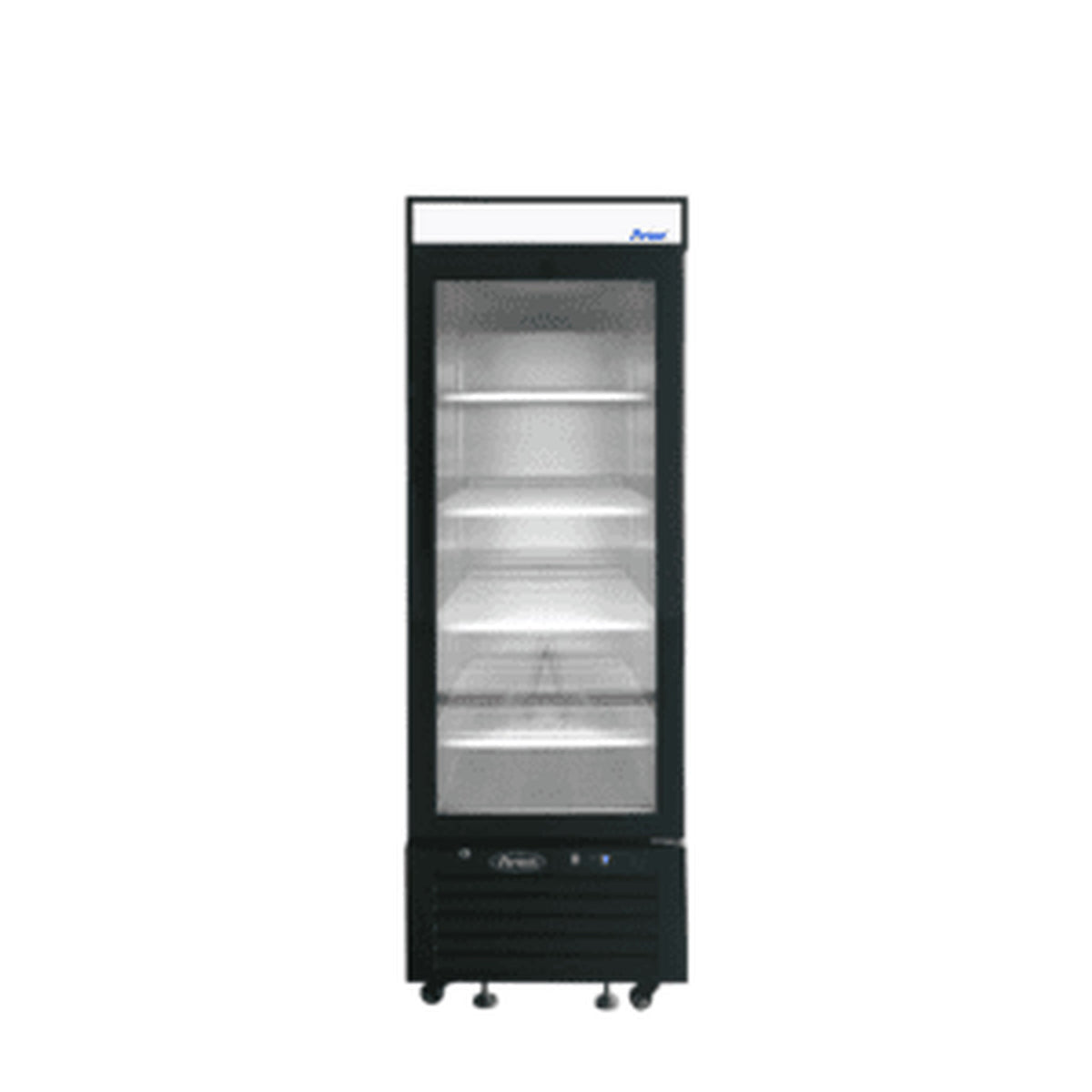

Atosa Black Glass Door Merchandiser Refrigerator 8.3 Cu. Ft. MCF8726GR

The Atosa MCF8726GR is a one-section, bottom mount glass door merchandiser refrigerator for cafes, convenience stores, delis, checkout areas and grab-and-go stations that need chilled product on display in a small footprint. It measures 24-1/5" wide, 24" deep and 63-1/5" high and holds 8.3 cu. ft. at 33°F to 40°F. A self-contained, bottom-mounted 1/7 HP system using R290 hydrocarbon refrigerant runs on 115V and draws 2.1 A through a NEMA 5-15P plug. The cabinet has a black steel exterior, a stainless steel interior, a double-pane glass door and three shelves. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 8.3 cu. ft. capacity in a 24-1/5" wide by 24" deep cabinet
• Holds 33°F to 40°F, with an electronic temperature controller
• Self-contained, bottom-mounted refrigeration with R290 hydrocarbon refrigerant and a 1/7 HP compressor
• Double-pane glass door that closes itself and has a stay-open feature, a recessed handle and a standard door lock
• Magnetic door gasket seals the door without a latch
• Three epoxy-coated shelves come installed. Extra shelves are sold separately and include 4 shelf clips each
• LED interior lighting and a lighted header panel for signage or branding
• Black steel exterior with a stainless steel interior
• 2" casters come installed
• Plugs into a standard outlet: 115V, 60 Hz, single phase, 2.1 A, NEMA 5-15P plug

Atosa MCF8726GR specifications

Brand	Atosa
Model number	MCF8726GR
Product type	Glass door merchandiser refrigerator, bottom mount
Sections and doors	1 section, 1 hinged swing glass door
Capacity	8.3 cu. ft.
Exterior width	24-1/5" (24.2")
Exterior depth	24"
Exterior height (overall)	63-1/5" (63.2")
Temperature range	33°F to 40°F
Recommended setting	33°F to 38°F
Controller	Electronic temperature controller
Refrigeration	Self-contained, bottom mount
Refrigerant	R290 hydrocarbon
Compressor	1/7 HP
Electrical	115 V / 60 Hz / 1 phase, 2.1 A
Plug	NEMA 5-15P
Shelves	3 epoxy-coated, installed
Door	Double-pane glass, self-closing with stay-open feature, recessed handle, lock, magnetic gasket
Exterior material	Black steel
Interior material	Stainless steel
Lighting	LED interior lighting, lighted header panel
Header panel visible area	22-15/16" wide by 3-9/16" high
Casters	2", installed
Net weight	190 lb
Shipping weight	210 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL-Sanitation
Warranty	3 years parts and labor, 5 years on the sealed compressor

Frequently asked questions

What outlet does the Atosa MCF8726GR need?

It needs a standard 115V grounded NEMA 5-15 receptacle. The unit draws 2.1 A at 115V, 60 Hz, single phase, and comes with a cord and a NEMA 5-15P plug.

Is the MCF8726GR a refrigerator or a freezer?

It is a refrigerator. It holds 33°F to 40°F, and Atosa recommends setting it between 33°F and 38°F for the best food preservation. It is not rated for frozen storage.

Will it fit through a standard doorway?

Yes. The cabinet is 24" deep and 24-1/5" wide, so it passes through a 36" doorway with room to spare. At 63-1/5" overall height it also clears a standard 80" door opening standing upright.

What certifications does it have?

It is cETLus listed to UL 471 and CSA C22.2 No. 120, the safety standards for commercial refrigerators in the US and Canada. It is also ETL-Sanitation certified, meaning it meets the sanitation standards health inspectors expect for commercial foodservice equipment.

What warranty comes with the MCF8726GR?

Atosa covers this model for 3 years on parts and labor and 5 years on the sealed compressor. Labor coverage pays standard straight-time labor and reasonable travel time. After year 3, coverage applies only to the sealed compressor parts. The cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly and other electrical components are not covered after that point. The warranty does not cover alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire or acts of God. It cannot be transferred and applies only to the original purchaser. Claims go directly to Atosa and must include the model number, serial number, proof of purchase and installation date.

How many shelves come with it, and can I add more?

It ships with three epoxy-coated shelves already installed. Extra shelves are an Atosa option, and each one comes with 4 shelf clips.

How does the MCF8726GR compare to the Atosa MCF8725GR?

Both are 24-1/5" wide, 24" deep, one-door black merchandisers with bottom-mounted R290 refrigeration, a 1/7 HP compressor and a 2.1 A draw. The MCF8725GR is taller, at 76-1/5" high, and holds 11.1 cu. ft. with four shelves. The MCF8726GR is 63-1/5" high, holds 8.3 cu. ft. and has three shelves, so it suits spaces with lower overhead clearance or counters where customers need to see over the unit.

Why is a bottom-mounted compressor useful?

Atosa positions its bottom-mount units for hot areas and cooking line applications. With the compressor at floor level, it is also easier to reach for cleaning and service. Atosa recommends leaving space around the unit for airflow and cleaning the condenser often.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
