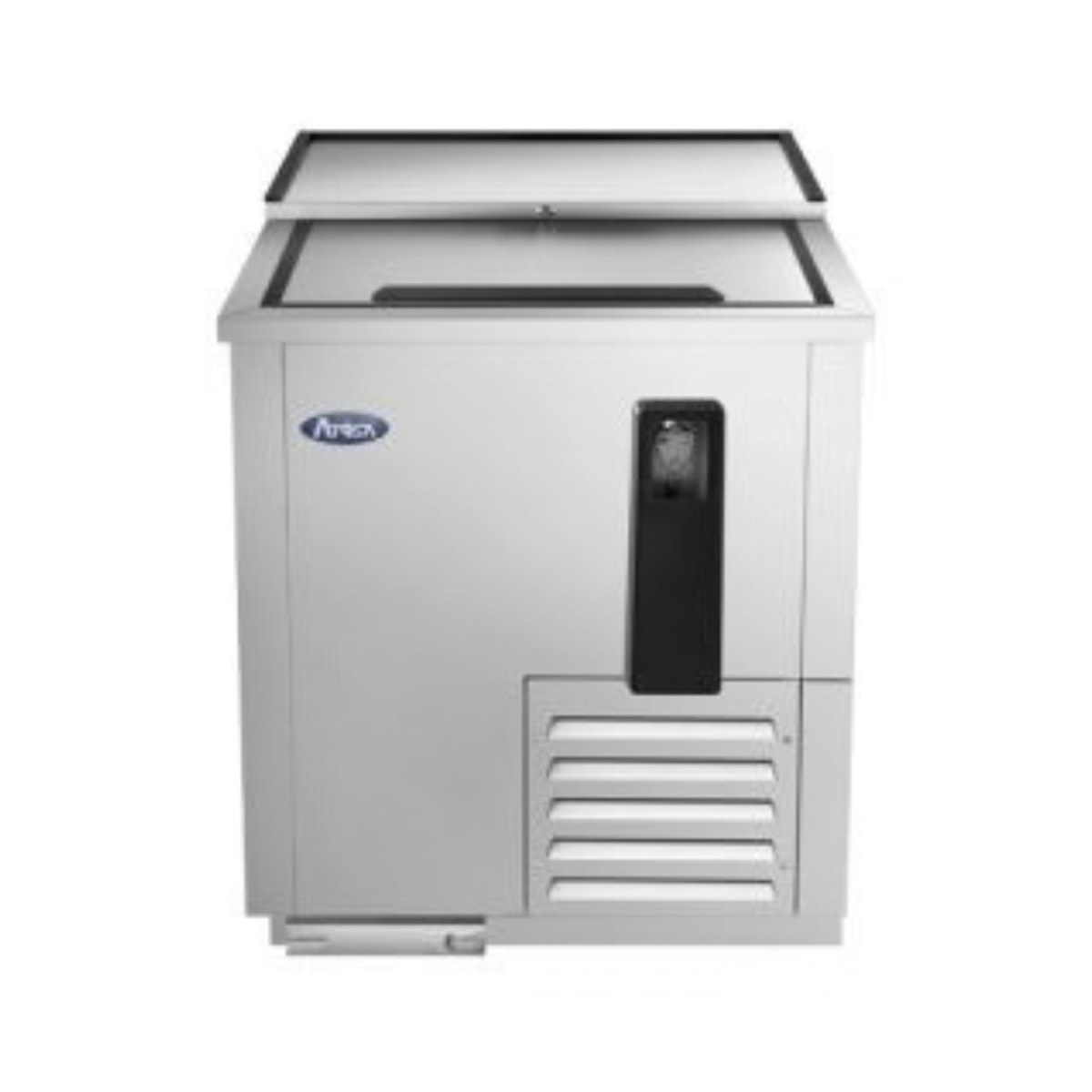

Atosa Horizontal Bottle Cooler Stainless Steel 4 Cu. Ft. 24" MBC24GR

The Atosa MBC24GR is a 24" horizontal bottle cooler for bars, restaurants and catering operations that need chilled bottled and canned drinks within reach at a service station or back bar. It measures 24-3/8" wide, 26-3/4" deep and 38-1/2" high, holds 4 cu. ft., and keeps product between 35°F and 38°F with an electronic temperature controller. Cooling comes from a self-contained, side-mounted 1/7 HP Embraco compressor that uses R290 hydrocarbon refrigerant and runs on a standard 115V circuit at 2.3 amps. The cabinet is stainless steel inside and out, with one locking sliding stainless steel lid and pre-installed 2" casters. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 4 cu. ft. chest-style storage in a 24-3/8" wide footprint
• Electronic temperature controller holds 35°F to 38°F
• Heavy-duty Embraco compressor, 1/7 HP, with R290 hydrocarbon refrigerant
• Compressor assembly slides out for maintenance
• One easy-glide stainless steel sliding lid with handle and standard lid lock
• Two epoxy-coated wire dividers come standard for organizing bottles and cans
• Bottle opener and cap catcher come standard
• Stainless steel exterior and interior
• Pre-installed 2" casters
• Plugs into a standard 115V outlet with a NEMA 5-15P plug, drawing 2.3 amps

Atosa MBC24GR specifications

Brand	Atosa
Model number	MBC24GR
Product type	Horizontal bottle cooler (refrigerated)
Nominal width	24"
Lids	1 sliding stainless steel lid with handle and lock
Capacity	4 cu. ft.
Exterior width	24-3/8"
Exterior depth	26-3/4"
Exterior height	38-1/2" (overall)
Temperature range	35°F to 38°F
Temperature control	Electronic temperature controller
Refrigeration	Self-contained, side-mounted, slide-out compressor assembly
Compressor	Embraco, 1/7 HP
Refrigerant	R290 hydrocarbon
Electrical	115V / 60 Hz / 1 phase, 2.3 A
Plug	NEMA 5-15P (15A/125V)
Dividers	2 epoxy-coated wire dividers
Exterior material	Stainless steel
Interior material	Stainless steel
Included accessories	Bottle opener and cap catcher
Casters	2", pre-installed
Net weight	170 lb
Shipping weight	207 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation
Warranty	2 years parts and labor, plus an additional 3 years on the sealed compressor (5 years total)

Frequently asked questions

What outlet does the Atosa MBC24GR need?

It needs a standard 115V, 60 Hz, single-phase outlet that accepts a NEMA 5-15P plug (15A/125V). The unit draws 2.3 amps, so a dedicated 15 amp circuit is plenty.

Is the MBC24GR a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds 35°F to 38°F, which suits bottled and canned beer, soda and other packaged drinks. It does not freeze. Atosa sells the MBGF24GR as a separate 24" glass froster.

Will it fit through a standard doorway?

Yes. At 24-3/8" wide and 26-3/4" deep, it fits through a 36" doorway with room to spare and also clears a 30" doorway. At 38-1/2" tall overall, it is well under the height of an 80" door opening.

What certifications does it have?

It is cETLus listed, meaning it is certified to UL 471 and CSA C22.2 No. 120 electrical safety standards for commercial refrigerators in the United States and Canada. It is also ETL Sanitation certified, which health inspectors accept as proof that it meets foodservice sanitation requirements.

What warranty comes with the MBC24GR?

Atosa covers parts and labor for two years, and the sealed compressor for three more years, up to five years total. Labor is paid at standard straight-time rates plus reasonable travel time, as Atosa determines. The extra compressor coverage applies only to the sealed compressor. It does not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical parts. All claims go directly through Atosa and need the model number, serial number, proof of purchase and installation date.

How is it serviced?

The compressor assembly slides out, so a technician can reach the refrigeration system without taking the cabinet apart. The 2" casters let staff roll the unit out to clean underneath and behind it.

How does the MBC24GR compare to other Atosa bottle coolers?

The MBC24GR is the smallest model in the line at 4 cu. ft. The 36" MBC36GR uses the same 1/7 HP, 2.3 amp system and holds 7.7 cu. ft. For more storage, the line continues with the MBC50GR and MBC65GR, up to the 80" MBC80GR, which holds 21.2 cu. ft. and has a 1/5 HP, 2.8 amp compressor. Every model in the line uses R290 refrigerant and has stainless steel lids, a bottle opener and a cap catcher.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
