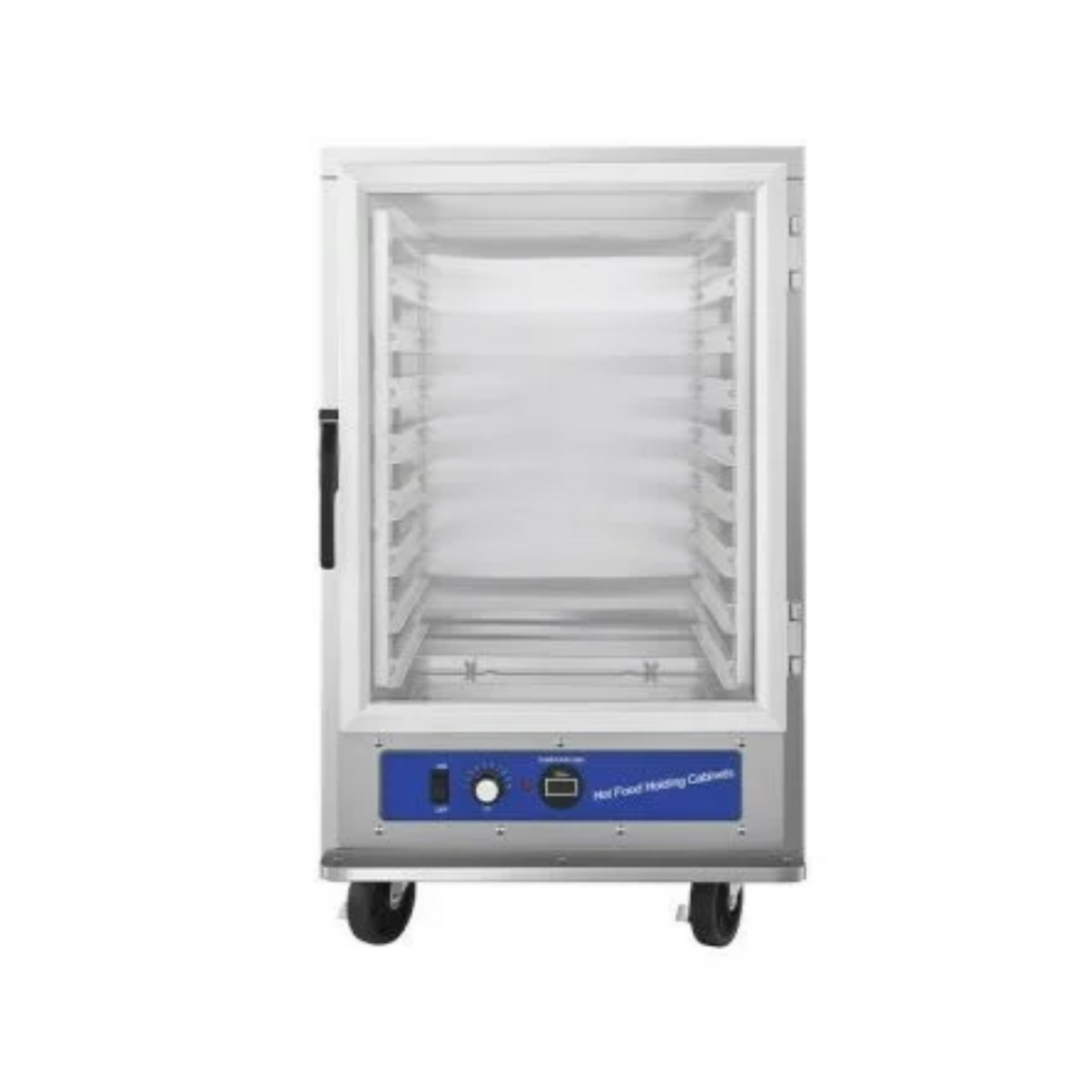

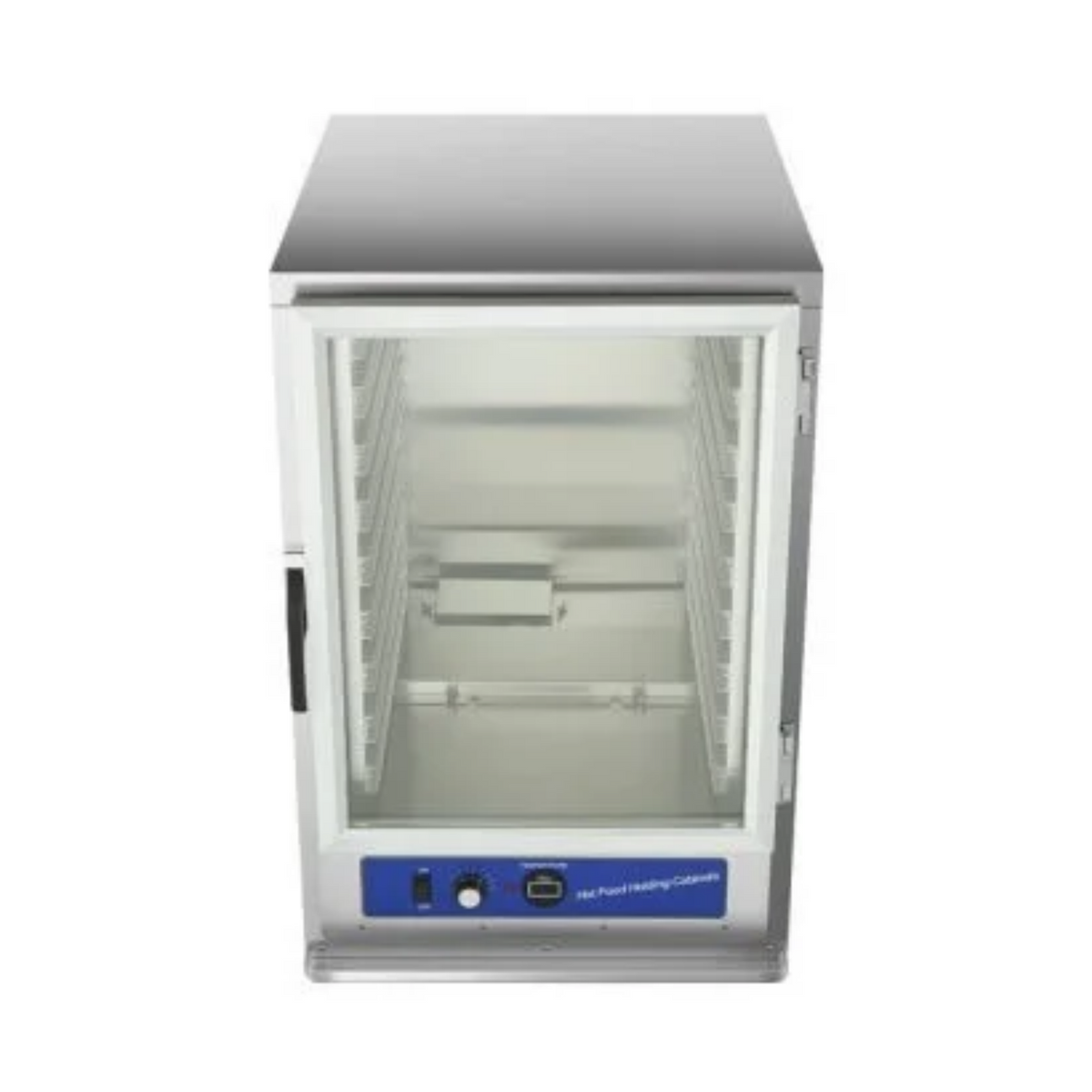

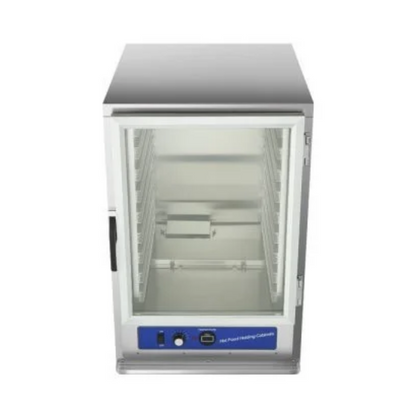

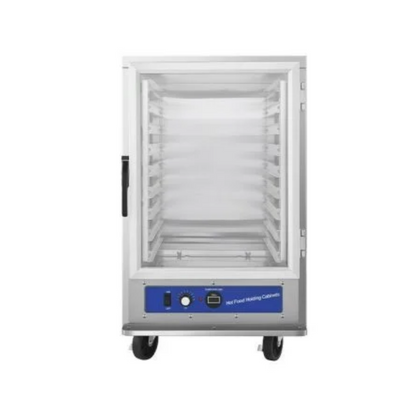

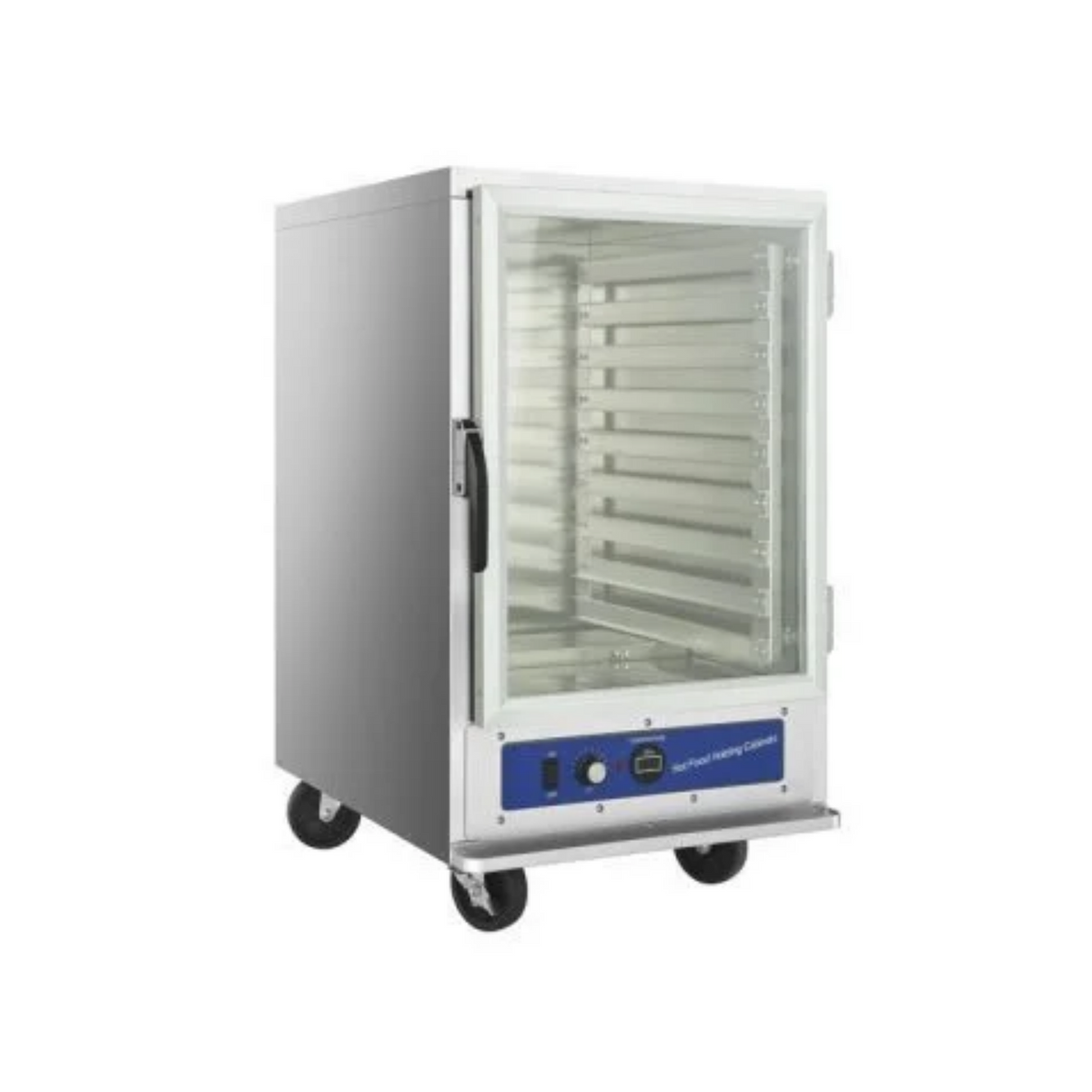

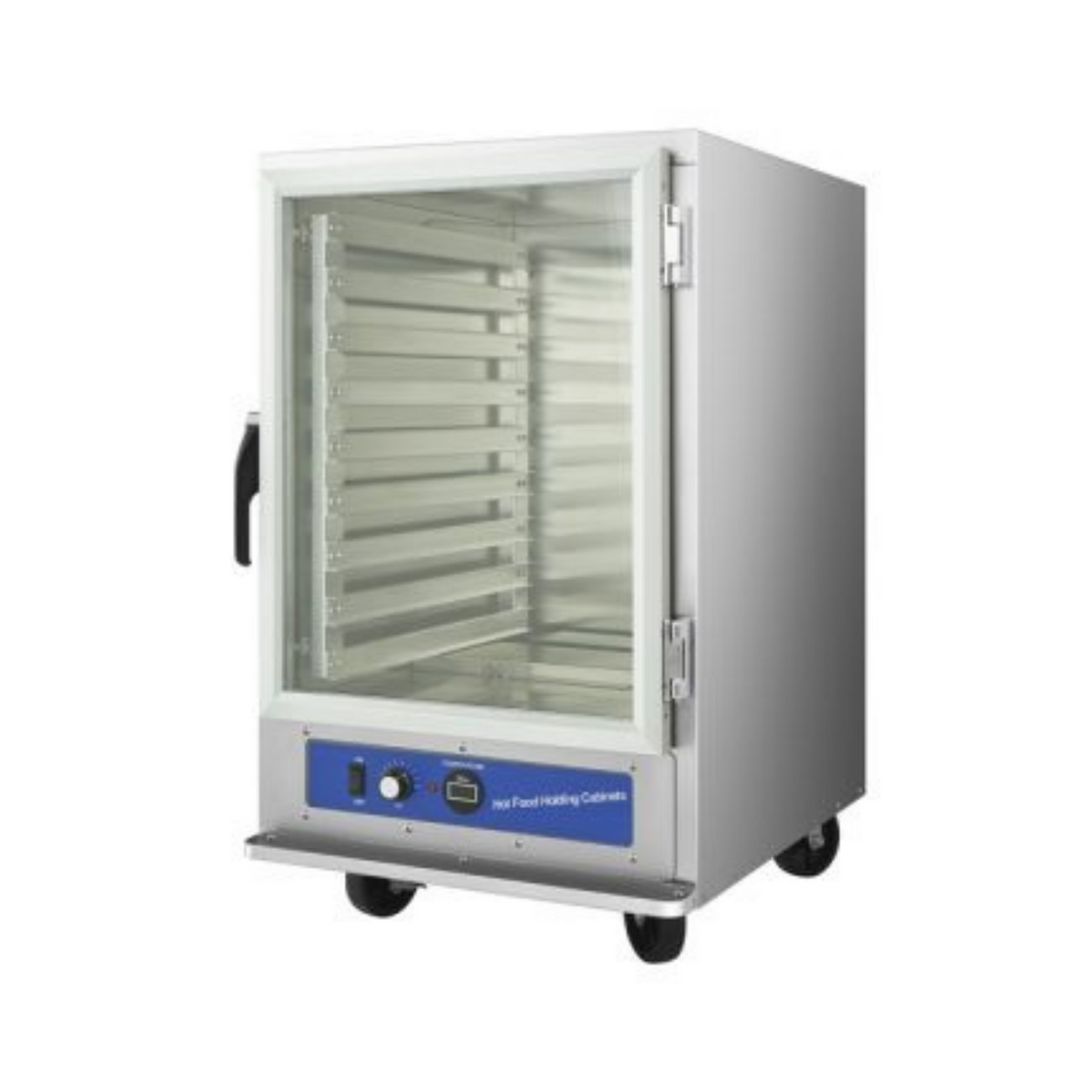

Atosa Insulated Heated Holding Cabinet Stainless Steel Energy Star 9 - ATHC-9ES

The Atosa ATHC-9ES is a half-height, insulated, mobile heated holding cabinet for restaurants, caterers, banquet kitchens and institutional foodservice that need to hold cooked food hot before service. It measures 25-1/8" wide, 31" deep and 42-3/4" high, and its integrated slides hold nine 18" x 26" full-size sheet pans. You set the temperature from 85°F to 207°F and read it on an LED display. It runs on 120V through a NEMA 5-20P plug, draws 1900 W, has stainless steel inside and out, and carries cETLus, ETL-Sanitation and ENERGY STAR certification. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Holds nine 18" x 26" full-size sheet pans on integrated slides
• Adjustable heat from 85°F to 207°F, set with dial controls and shown on an LED display
• Walls are fully insulated with environmentally friendly foam to reduce heat loss
• ENERGY STAR certified hot food holding cabinet
• Tempered glass door can be reversed in the field
• The door closes by itself when opened 90° or less and stays open past 90° for hands-free loading
• Stainless steel interior and exterior
• The control drawer and slides are removable for cleaning
• Four pre-installed casters with bumpers, two swivel and two locking, each rated for over 250 lb
• 10 ft power cord with NEMA 5-20P plug, 120V
• Heats from 72°F (22°C) room temperature to 160°F (71°C) in about 15 minutes

Atosa ATHC-9ES specifications

Brand	Atosa (CookRite line)
Model number	ATHC-9ES
Product type	Insulated heated holding cabinet, half height, mobile
Sections / doors	1 section, 1 door
Pan capacity	9 full-size 18" x 26" sheet pans
Exterior width	25-1/8"
Exterior depth	31"
Exterior height	42-3/4"
Temperature range	85°F to 207°F
Controls	Dial controls with LED temperature display
Electrical	120V, 60 Hz, single phase
Power	1900 W (1.9 kW)
Plug	NEMA 5-20P
Required circuit	20 A, 125V receptacle
Cord length	10 ft
Door	Tempered glass, field reversible, self-closing with stay-open past 90°
Exterior material	Stainless steel
Interior material	Stainless steel
Insulation	Fully foam-insulated cabinet
Casters	4 casters with bumpers, 2 swivel and 2 locking, over 250 lb rating each
Shipping weight	170 lb
Certifications	cETLus, ETL-Sanitation, ENERGY STAR
Warranty	1 year parts and labor

Frequently asked questions

What outlet and circuit does the ATHC-9ES need?

Plug it into a 20 A, 125V receptacle that accepts its NEMA 5-20P plug, normally a NEMA 5-20R. The cabinet is rated 120V, 60 Hz, single phase, 1900 W.

What temperature does it hold?

You can set it anywhere from 85°F to 207°F, and the LED display shows the temperature. It is a heated holding cabinet for food already cooked in other equipment. It is not an oven, proofer or refrigerator.

How many pans does it hold?

It holds nine 18" x 26" full-size sheet pans on built-in slides.

Will it fit through a standard doorway?

Yes. At 31" deep and 25-1/8" wide it goes through a standard 36" doorway, and at 42-3/4" high it is well under an 80" door opening.

What certifications does it have?

It is cETLus listed for electrical safety in the US and Canada, ETL-Sanitation certified for commercial food equipment sanitation, and ENERGY STAR certified. Health inspectors generally look for the sanitation listing in commercial kitchens.

What warranty comes with it?

Atosa gives 1 year of parts and labor from the date the unit ships from Atosa. Labor covers standard straight-time charges and reasonable travel time. The warranty excludes damage from alteration, neglect, abuse, misuse, accident, damage in transit or during installation, fire, flood and acts of God. You make claims directly with Atosa and need the model number, serial number and proof of purchase.

How does the ATHC-9ES differ from the ATHC-18ES, ATHC-9P and ATWC-12?

The ATHC-18ES has the same 25-1/8" x 31" footprint, temperature range and 1900 W rating, but it is full height at 69-3/4" and holds 18 pans. The ATHC-9P is a 2000 W heated and proofing cabinet. It runs 90°F to 220°F and has a polycarbonate door and a humidifying water tray. The ATWC-12 is an economy model 21-1/2" wide that holds 12 pans, rated 1580 W, with a polycarbonate door.

How long does it take to preheat?

It takes about 15 minutes to heat from a 72°F (22°C) room to 160°F (71°C).

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
