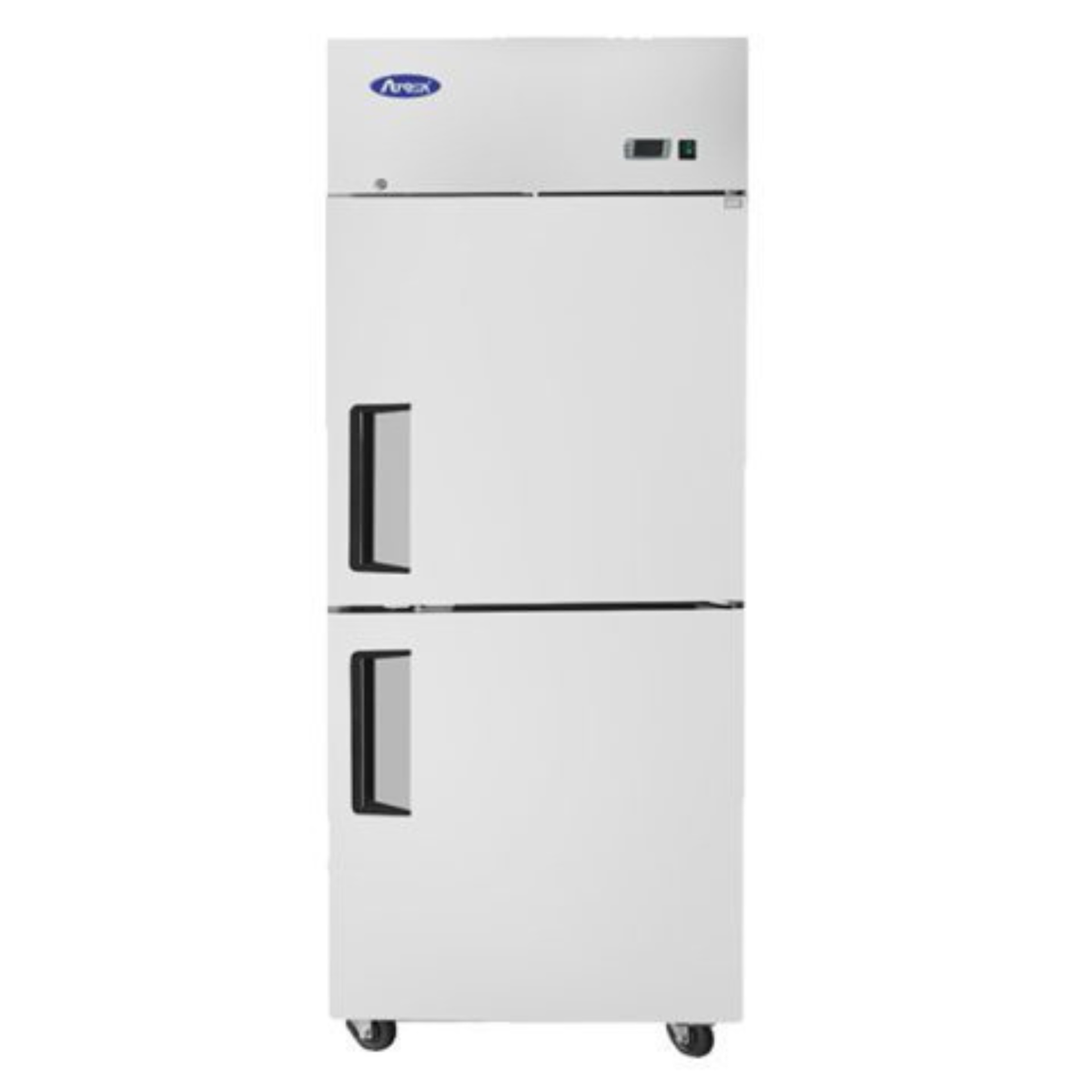

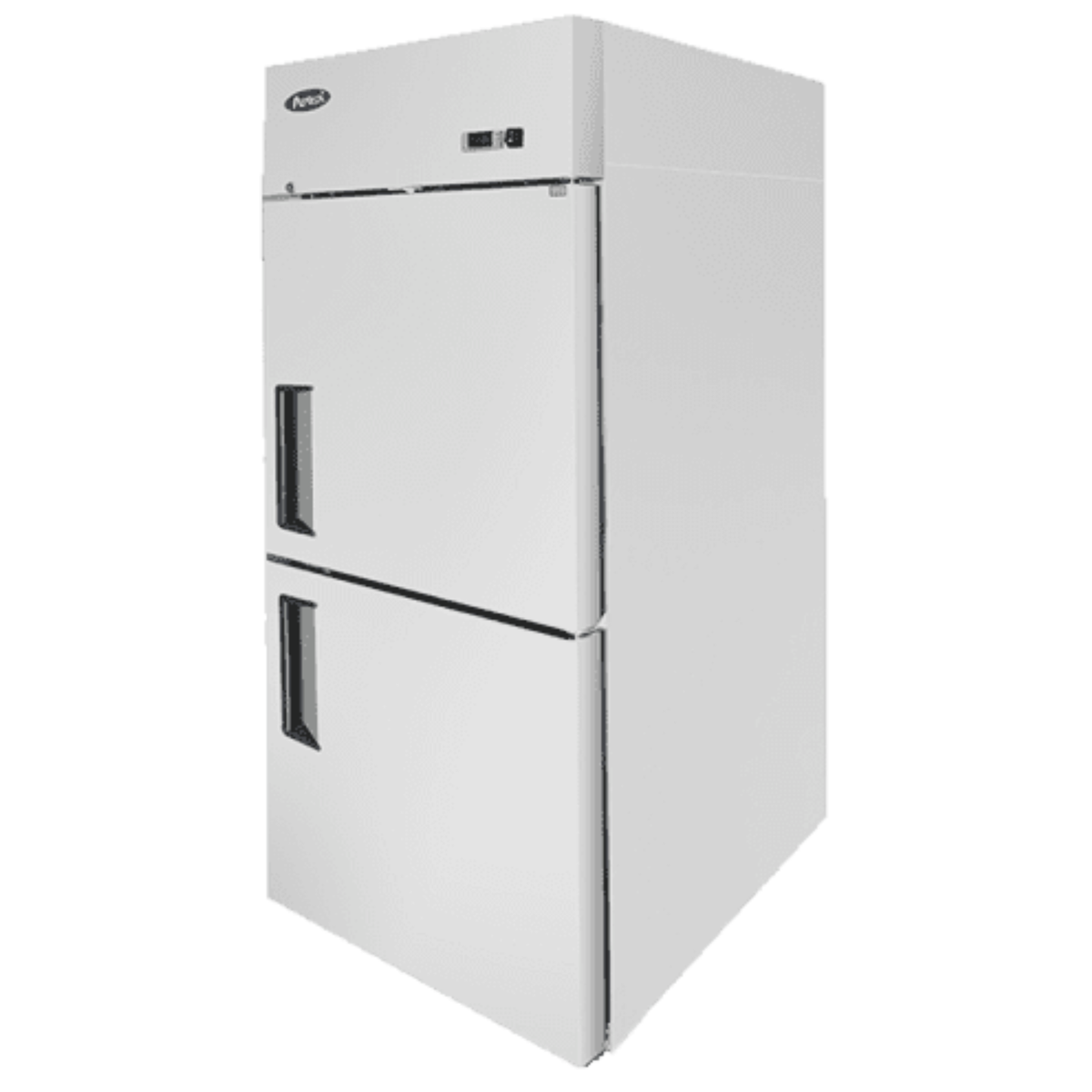

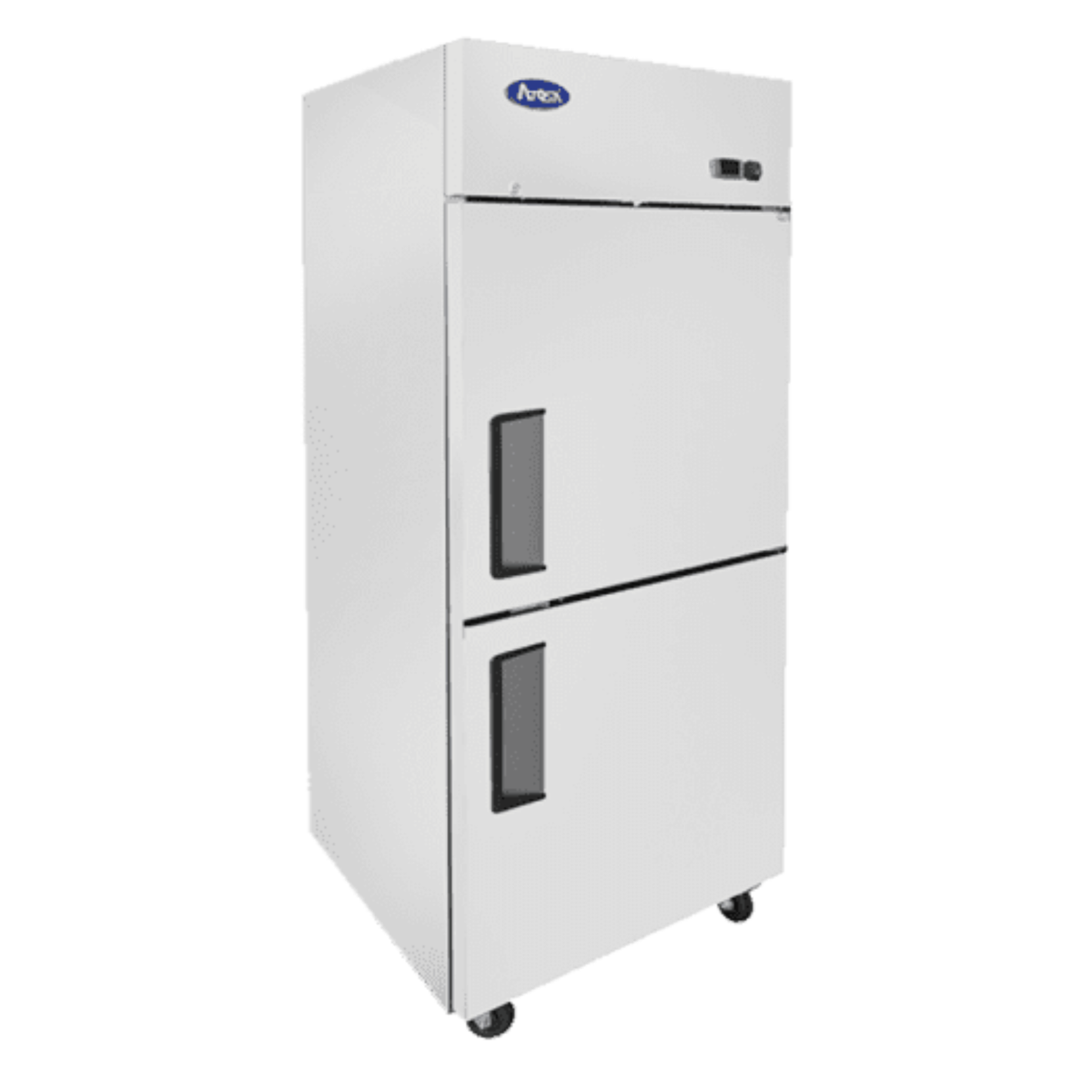

Atosa Stainless Steel Reach-In Refrigerator 2 Half Doors 29" - Top - MBF8010GR

The Atosa MBF8010GR is a one-section, top mount reach-in refrigerator with two solid half doors, built for restaurants, cafeterias and other commercial kitchens that want cold storage in a narrow footprint. It holds 21.4 cu. ft. and measures 28.7" wide, 31.7" deep and 81.3" high. It holds 33°F to 40°F using a self-contained, top mount 1/7 HP compressor that runs on R290 refrigerant. It plugs into a standard 115V outlet with a NEMA 5-15P plug. The cabinet is stainless steel inside and out, with three epoxy-coated shelves, LED lighting and pre-installed 4" casters. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Two right-hand hinged solid half doors, so staff can open the upper or lower half of the cabinet without opening the whole unit.
• Doors have a self-closing and stay-open feature and open to 105°.
• Top mount, self-contained refrigeration with down-duct airflow to spread cold air evenly through the cabinet.
• Electronic temperature controller with a 33°F to 40°F range.
• R290 hydrocarbon refrigerant.
• Three pre-installed epoxy-coated shelves that resist rust and corrosion in humid conditions. Extra shelves are available as part number W0402389, and each comes with 4 shelf clips.
• Stainless steel exterior and interior.
• Recessed door handles, standard door locks and magnetic door gaskets for a tight door seal.
• LED interior lighting.
• Four pre-installed 4" casters.
• ENERGY STAR certified.

Atosa MBF8010GR specifications

Brand	Atosa (Atosa USA, Inc.)
Model number	MBF8010GR
Product type	Reach-in refrigerator, top mount
Sections	1
Doors	2 solid half doors, right-hand hinged, locking
Capacity	21.4 cu. ft.
Exterior width	28.7"
Exterior depth	31.7"
Exterior height	81.3"
Door opening	105°, self-closing with stay-open feature
Temperature range	33°F to 40°F
Refrigeration	Self-contained, top mount compressor, down-duct airflow
Refrigerant	R290
Compressor	1/7 HP
Electrical	115 V / 60 Hz / 1-phase, 2.1 A rated current
Plug	NEMA 5-15P (15 A, 125 V)
Controller	Electronic temperature controller
Defrost	Air defrost with automatic condensate evaporation

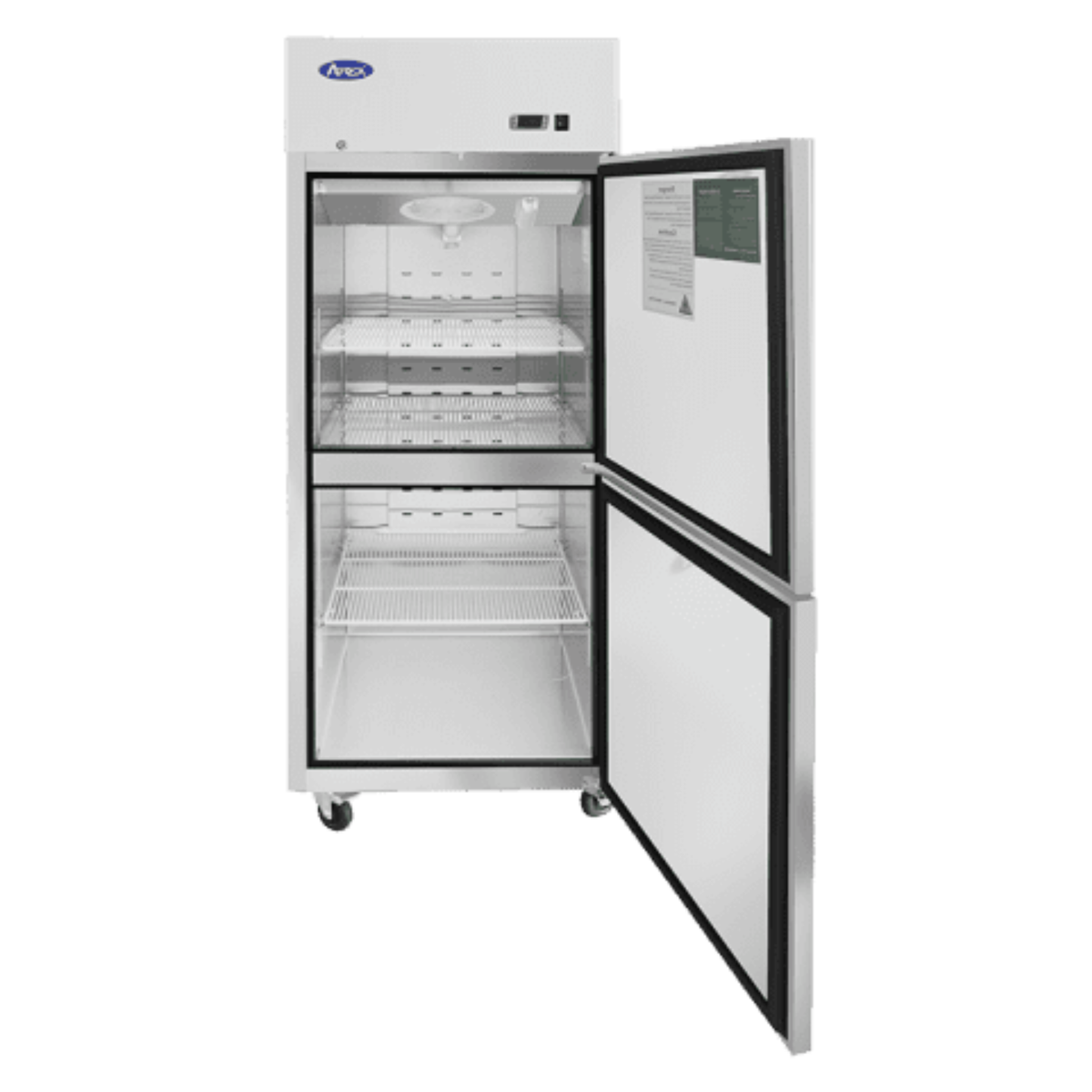

Shelves	3 epoxy-coated, pre-installed; extra shelves are part W0402389
Exterior material	Stainless steel, galvanized steel back
Interior material	Stainless steel
Lighting	LED interior
Door hardware	Recessed handles, locks, magnetic gaskets
Casters	4", pre-installed
Net weight	254 lb
Shipping weight	271 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation, ENERGY STAR
Warranty	3 years parts and labor, 5 years compressor

Frequently asked questions

What electrical connection does the Atosa MBF8010GR need?

It needs a standard 115V, 60 Hz, single-phase outlet that accepts its NEMA 5-15P plug (15 A, 125 V). Its rated current is 2.1 A. Plug it directly into the wall outlet. Atosa's warranty does not cover damage caused by extension cords, low voltage, voltage drops or power failures.

Will it fit through a standard doorway?

Yes, it fits through the width of a standard 36" doorway: the cabinet is 28.7" wide and 31.7" deep. It is 81.3" tall, though, which is taller than a standard 80" door opening, so plan to tilt it to move it through.

Is the MBF8010GR a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. Its electronic controller holds 33°F to 40°F. The freezer with the same half-door layout is the MBF8007GR.

How much does it hold?

It has 21.4 cu. ft. of storage in one section, with three pre-installed epoxy-coated shelves. You can add more shelves (part W0402389, which comes with 4 clips) if you store shorter items and want more levels.

What certifications does it have?

It is cETLus listed, ETL Sanitation listed and ENERGY STAR certified. cETLus means Intertek has tested it to the US and Canadian electrical safety standards for commercial refrigerators (UL 471 and CSA C22.2 No. 120). ETL Sanitation covers food-equipment sanitation, which health inspectors look for. ENERGY STAR means it meets the EPA's efficiency requirements for commercial refrigerators, and that can qualify it for utility rebates in some areas.

What warranty comes with it?

Atosa covers parts and labor for 3 years and the compressor for 5 years. After the first 3 years, the extra 2 years cover only the sealed compressor parts. They do not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical parts. Claims go directly to Atosa and need the model number, serial number, proof of purchase and installation date.

How does it differ from other Atosa top mount models?

The MBF8010GRL is the same refrigerator, but its half doors are hinged on the left instead of the right. The MBF8004GR is a one-section refrigerator with a single full-height solid door. The MBF8007GR is a freezer with the same two half-door layout. The MBF8011GR is a two-section refrigerator with four half doors.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
