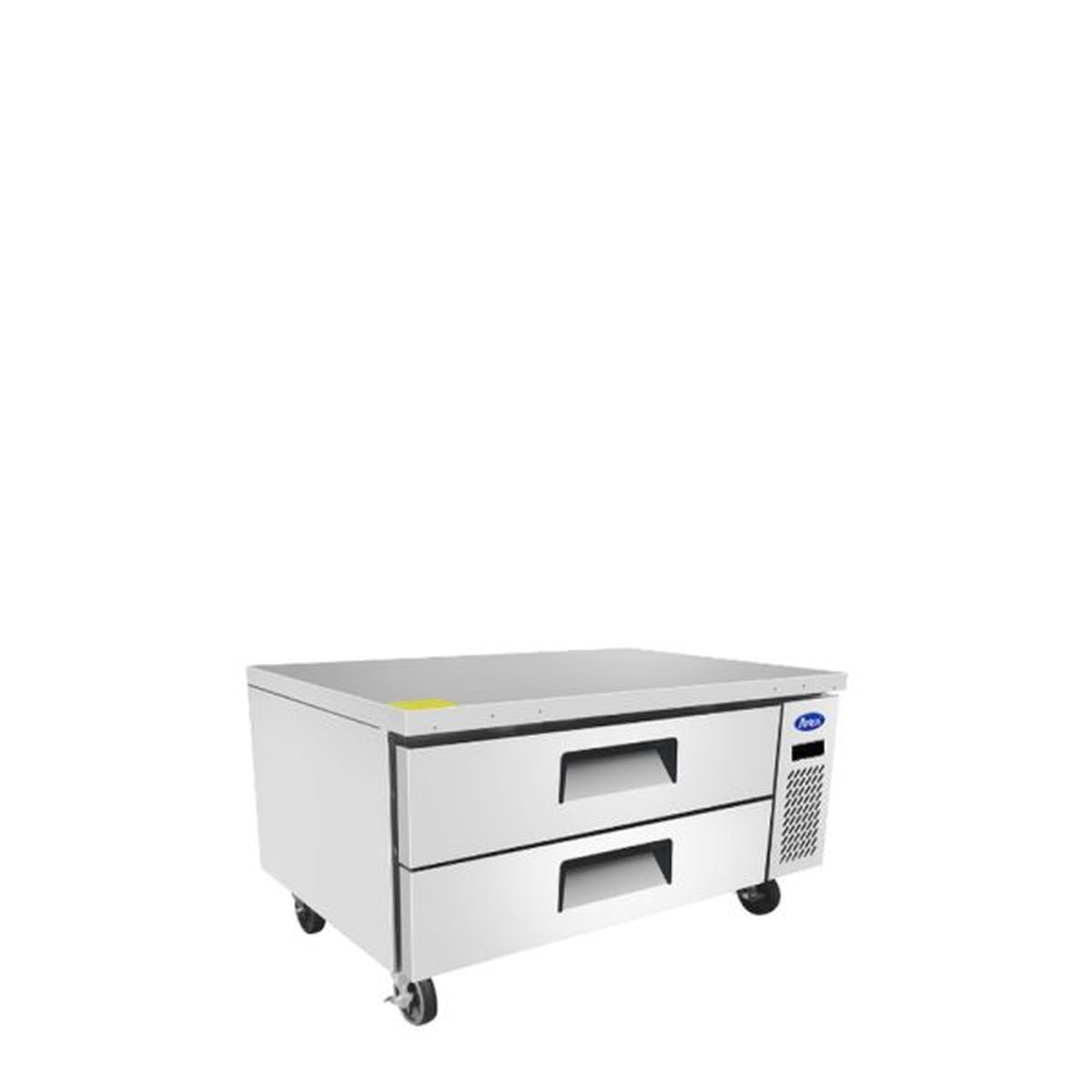

Atosa Stainless Steel Refrigerated Chef Base 36" - 2 Drawers MGF8448GR

The Atosa MGF8448GR is a 36" one-section, two-drawer refrigerated chef base for commercial kitchens that want cold storage right under countertop griddles, charbroilers or hot plates on the cook line. It measures 35-9/16" wide, 33" deep and 26-3/5" high and holds 4.7 cu. ft. Its electronic controller holds 35°F to 38°F. Refrigeration is self-contained and side-mounted, uses R290 refrigerant and a 1/7 HP compressor, and runs on 115V with a NEMA 5-15P plug at 2.3 A. The interior, exterior and the one-piece reinforced top are all stainless steel. East Bay Restaurant Supply ships this model with free shipping.

Key features

• One-piece, heavy-duty, reinforced stainless steel top built to carry countertop cooking equipment
• Two gravity-fed, self-closing drawers on heavy-duty stainless steel slides and rollers
• Comes with two 12" x 20" pans and six 1/6-size pans, all 6" deep stainless steel
• Electronic temperature controller holds 35°F to 38°F
• Self-contained, side-mounted refrigeration with R290 hydrocarbon refrigerant and a 1/7 HP compressor
• Plugs into a standard 115V outlet with a NEMA 5-15P plug and draws 2.3 A
• Magnetic drawer gaskets and recessed handles; pull-out handles included
• Four pre-installed 5" swivel casters with bumpers, brakes on two, each rated for over 250 lb
• Corner guards included
• cETLus listed to UL 471 and CSA C22.2 No. 120, with ETL Sanitation and ENERGY STAR

Atosa MGF8448GR specifications

Brand	Atosa
Model number	MGF8448GR
Product type	Refrigerated chef base (equipment stand)
Sections / drawers	1 section, 2 drawers
Capacity	4.7 cu. ft.
Pans included	(2) 12" x 20" and (6) 1/6-size, 6" deep stainless steel
Exterior width	35-9/16"
Exterior depth	33"
Exterior height	26-3/5" (26.6")
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigeration	Self-contained, side-mounted
Refrigerant	R290
Compressor	1/7 HP
Electrical	115 V / 60 Hz / 1-phase, 2.3 A
Plug	NEMA 5-15P (15 A / 125 V)
Exterior material	Stainless steel
Interior material	Stainless steel
Top	One-piece reinforced stainless steel
Drawer hardware	Stainless steel slides and rollers, magnetic gaskets, recessed handles
Casters	(4) 5" swivel casters with bumpers, brakes on 2, rated over 250 lb each
Net weight	170 lb
Shipping weight	218 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation, ENERGY STAR
Warranty	2 years parts and labor; 3 more years on sealed compressor parts (5 years total)

Frequently asked questions

What outlet does the Atosa MGF8448GR need?

It needs a standard 115V, 15 A grounded outlet (NEMA 5-15R) for its NEMA 5-15P plug, and it draws 2.3 A. Plug it straight into the outlet. Atosa does not cover failures caused by extension cords, low voltage or voltage drops.

Is this a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds 35°F to 38°F, which is the range Atosa recommends for food storage.

How much does it hold?

It holds 4.7 cu. ft. across two drawers. It comes with two 12" x 20" pans and six 1/6-size pans, all 6" deep stainless steel.

Will it fit through a standard doorway?

Yes. At 33" deep it fits through a 36" doorway, and at 26-3/5" high it clears an 80" door opening easily.

What can I put on top of it?

The one-piece, reinforced stainless steel top is built to support countertop cooking equipment such as griddles, charbroilers and hot plates. The 35-9/16" width suits 36" countertop equipment.

What certifications does it have?

It is cETLus listed to UL 471 and CSA C22.2 No. 120 for electrical safety in the US and Canada. It is also ETL Sanitation listed, which means it meets food equipment sanitation standards health inspectors look for, and it is ENERGY STAR rated.

What warranty comes with it?

Atosa covers parts and labor for 2 years from installation, or 27 months from shipment by Atosa if that comes first. The sealed compressor is covered for 3 more years, up to 5 years total. The extra compressor years cover sealed compressor parts only. They do not cover the cabinet, finish, temperature control, refrigerant, metering device, motor starting equipment or fan assembly. Claims go directly to Atosa and need the model number, serial number, proof of purchase and installation date.

How does the MGF8448GR compare to other Atosa chef bases?

The MGF8448GR is the smallest model in the line. The MGF8450GR is 48-2/5" wide with 7.7 cu. ft. and four 12" x 20" plus six 1/6-size pans. The MGF8451GR is 52" wide with 8.4 cu. ft. and six 12" x 20" pans. The four-drawer models are the MGF8452GR (60-1/2" wide), the MGF8453GR (72-1/2") and the MGF8454GR (76").

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
