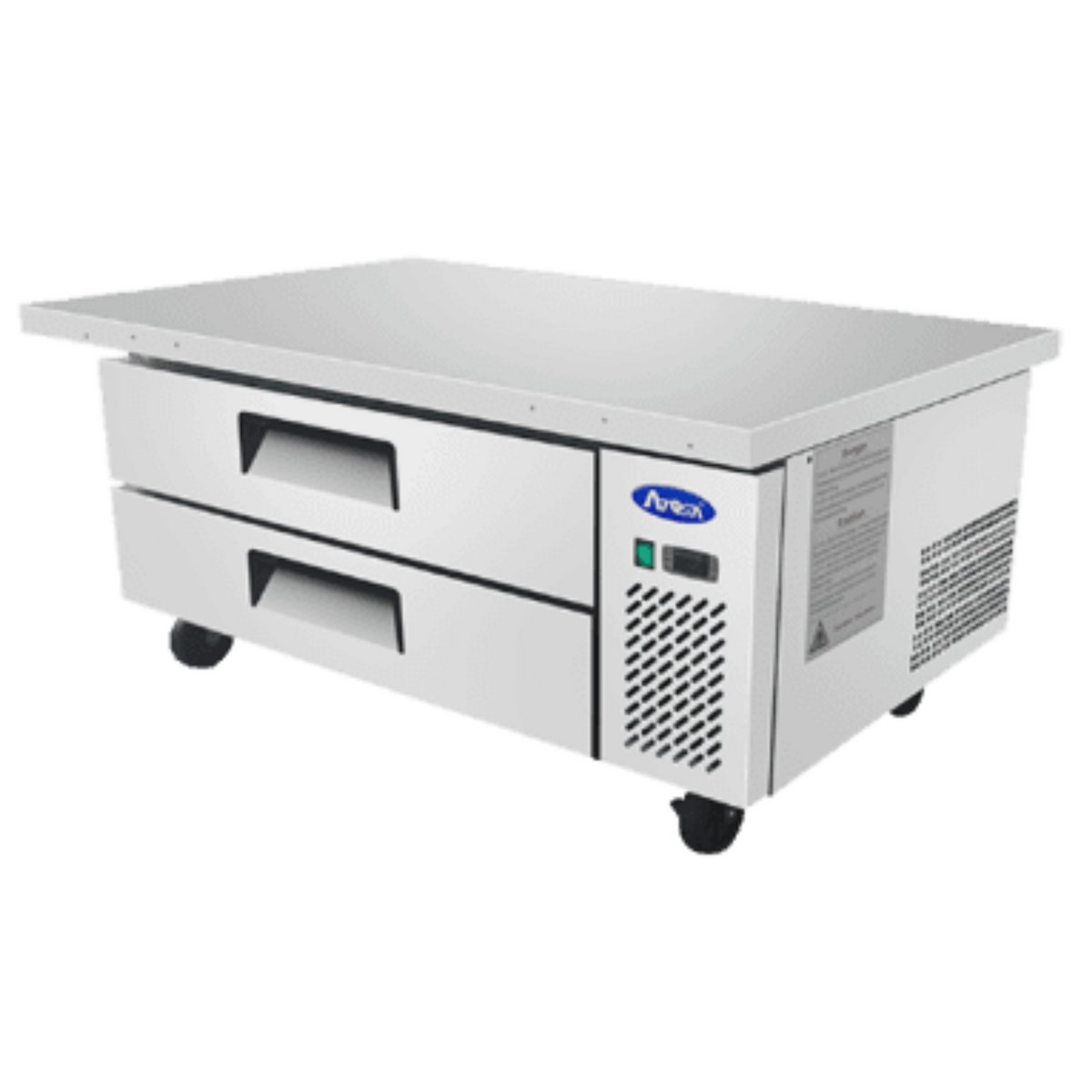

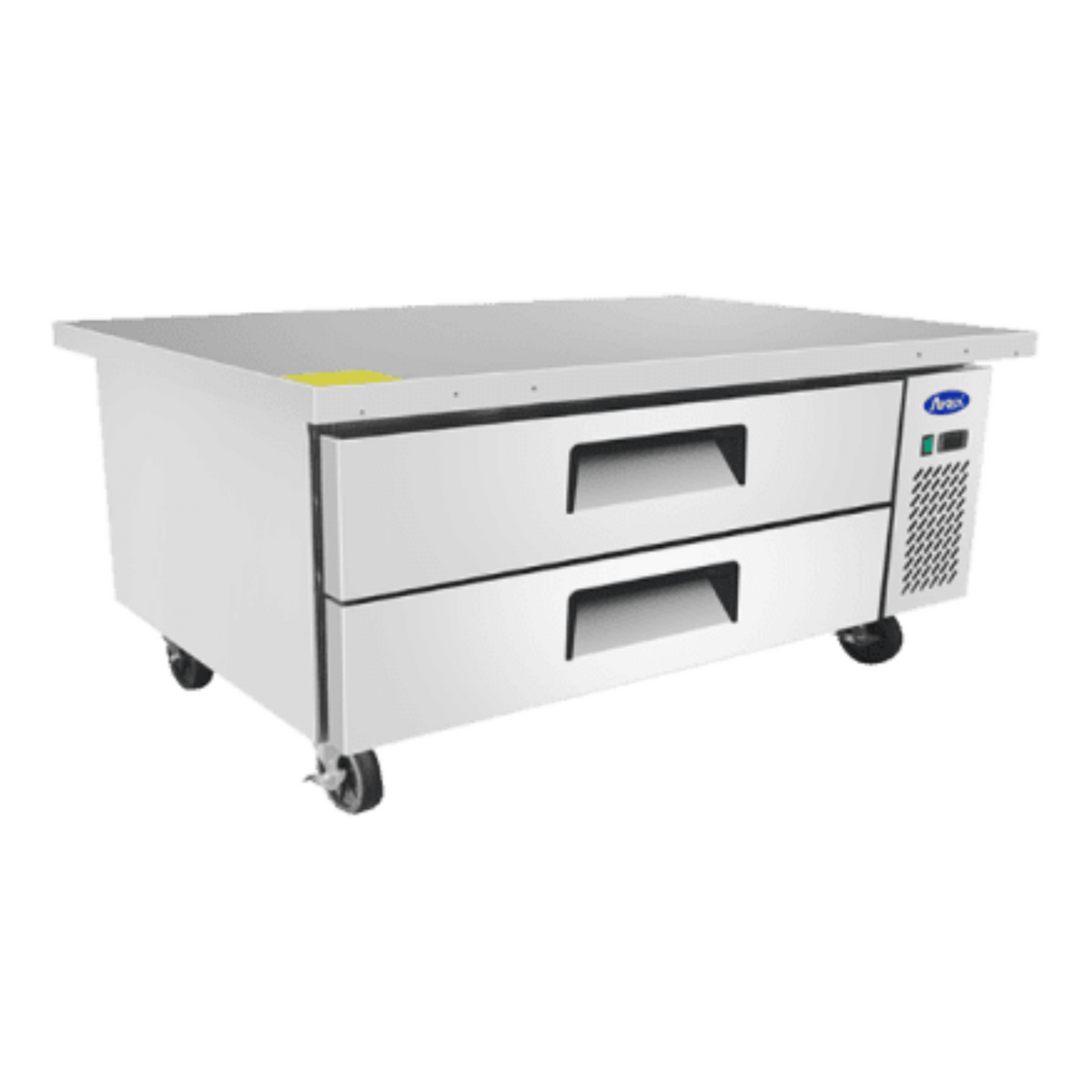

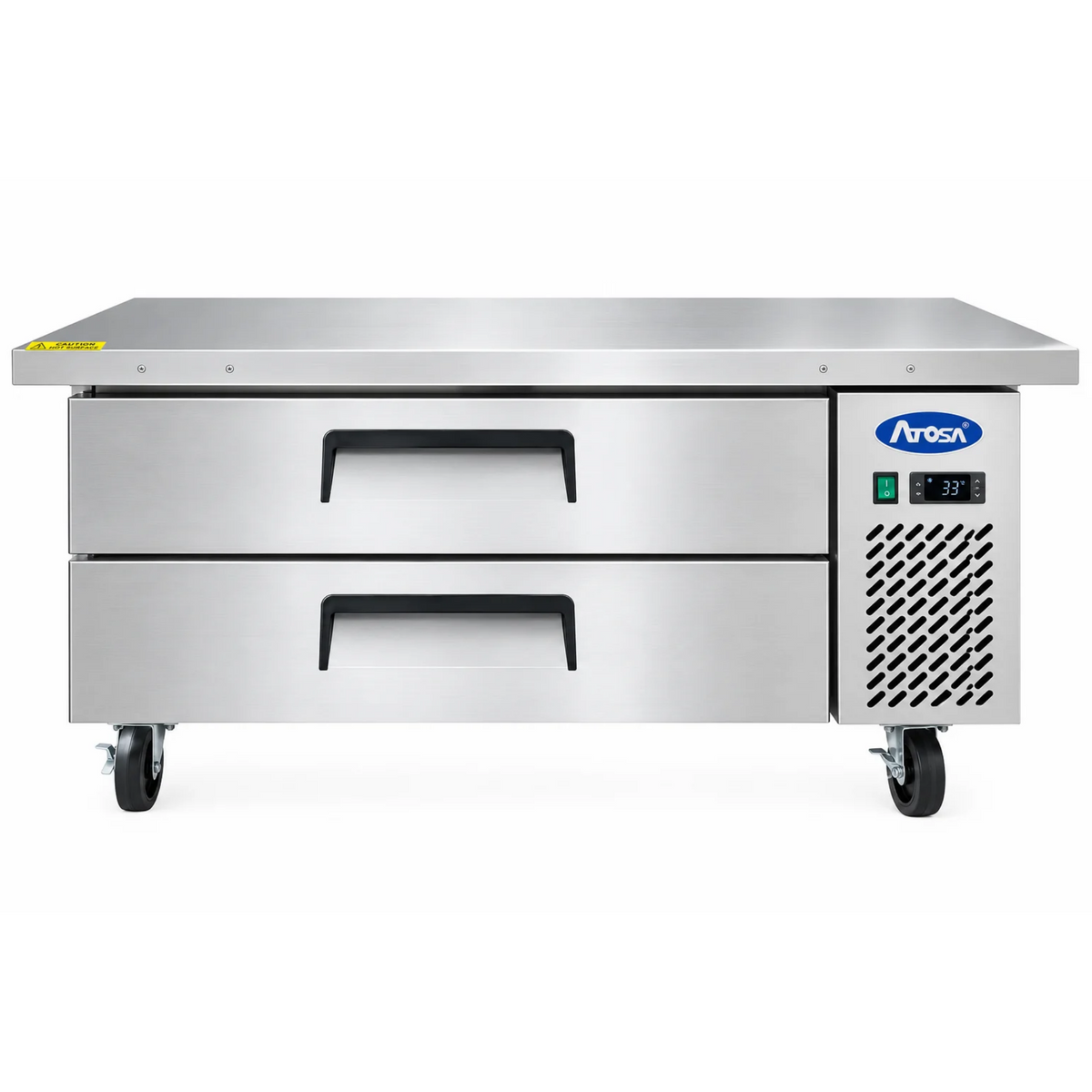

Atosa Refrigerated Chef Base Stainless Steel Extended Top 60.5" - MGF8452GR

The Atosa MGF8452GR is a 60" refrigerated chef base with an extended top. It is built for restaurant cooklines that need chilled ingredient storage directly under countertop griddles, charbroilers and other cooking equipment. The unit measures 60-1/2" wide by 33" deep by 26-3/5" high on its 5" casters. It has 8.4 cu. ft. of refrigerated storage in two self-closing drawers, which come with six full-size 12" x 20" x 6" deep stainless steel pans. An electronic controller holds 35°F to 38°F, and the 1/7 HP R290 refrigeration system runs on 115V at 2.3 A. The exterior, interior and one-piece reinforced top are all stainless steel. East Bay Restaurant Supply ships this model with free shipping.

Key features

• One-piece, heavy-duty reinforced stainless steel top that supports countertop cooking equipment, with an extended overhang for wider equipment

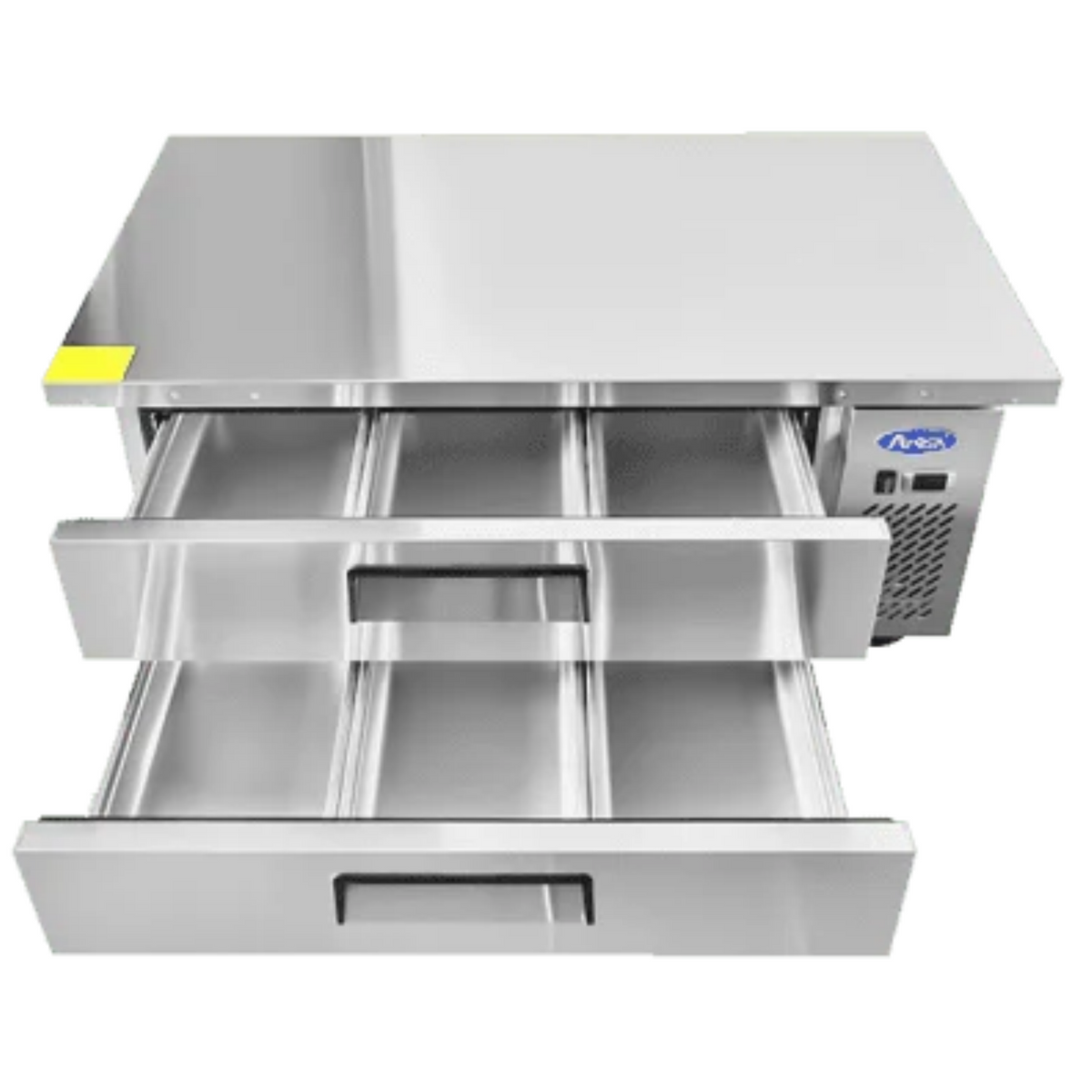

• Two gravity-fed, self-closing drawers with recessed handles
• Six full-size 12" x 20" stainless steel pans, 6" deep, included
• Electronic temperature controller that maintains 35°F to 38°F
• Side-mounted, self-contained refrigeration with a 1/7 HP compressor and R290 hydrocarbon refrigerant
• Heavy-duty stainless steel drawer slides and rollers
• Magnetic drawer gaskets that seal without latches
• Four pre-installed 5" swivel casters with bumpers, two with brakes, each rated for over 250 lb
• Corner guards and pull-out handles included
• ENERGY STAR certified, with a rated energy use of 1.38 kWh per 24 hours

Atosa MGF8452GR specifications

Brand	Atosa
Model number	MGF8452GR
Product type	Refrigerated chef base, extended top
Sections	1
Drawers	2, self-closing
Capacity	8.4 cu. ft.
Pan capacity	(6) full-size 12" x 20" pans, 6" deep, included
Exterior width	60-1/2"
Exterior depth	33"
Exterior height	26-3/5" (26.6") on 5" casters
Temperature range	35°F to 38°F
Refrigeration	Self-contained, side-mounted
Refrigerant	R290
Compressor	1/7 HP
Electrical	115 V / 60 Hz / 1-phase, 2.3 A
Plug	NEMA 5-15P, cord included
Energy use	1.38 kWh per 24 hours
Controller	Electronic
Exterior material	Stainless steel
Interior material	Stainless steel
Top	One-piece reinforced stainless steel, extended overhang
Casters	(4) 5" swivel casters with bumpers, 2 with brakes
Net weight	234 lb
Shipping weight	282 lb
Carton dimensions	62.99" wide x 33.66" deep x 38.19" high
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation, ENERGY STAR
Warranty	3 years parts and labor; 5 years compressor parts

Frequently asked questions

What electrical connection does the Atosa MGF8452GR need?

It plugs into a standard 115V, 15 A grounded outlet (NEMA 5-15R) using the included cord with a NEMA 5-15P plug. It draws 2.3 A on 115 V / 60 Hz / single phase, so no dedicated high-voltage circuit is needed.

Is the MGF8452GR a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds the drawers between 35°F and 38°F, which is the right range for proteins, sauces and prepped ingredients on the line. Atosa sells chef base freezers as separate models.

How much does it hold?

It holds six full-size 12" x 20" pans, 6" deep, which are included, for a total refrigerated capacity of 8.4 cu. ft. across two drawers.

Will it fit through a standard doorway?

Yes. At 33" deep and 26-3/5" high, it passes through a standard 36" doorway when moved width-first, with plenty of clearance under an 80" door opening.

What certifications does it have?

It is cETLus listed for electrical safety in the US and Canada (UL 471 and CSA C22.2 No. 120), ETL Sanitation listed for foodservice use, and ENERGY STAR certified at 1.38 kWh per 24 hours. Health inspectors and building officials generally look for these listings on commercial refrigeration.

What warranty comes with it?

Atosa covers parts and labor for 3 years. On top of that, it covers the sealed compressor for 2 more years, for 5 years of compressor coverage in total. The extra compressor years cover the sealed compressor only. They do not cover the cabinet, temperature control, refrigerant, fan assembly or labor. As with Atosa's other warranties, claims go directly to Atosa with the model number, serial number, proof of purchase and installation date.

How does the MGF8452GR differ from other Atosa chef bases?

The MGF8451GR is the 52" wide model without the extended top. It has the same 8.4 cu. ft., two-drawer, six-pan layout. The MGF8453GR is a 72-1/2" wide, four-drawer model with 12.1 cu. ft. and eight 12" x 20" pans. The MGF8454GR is a 76" four-drawer model with an extended top. The MGF8450GR is a smaller 48" two-drawer model.

Can the unit be moved for cleaning?

Yes. It sits on four pre-installed 5" swivel casters, and two of them lock, so you can roll it out to clean behind and under the cookline.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
