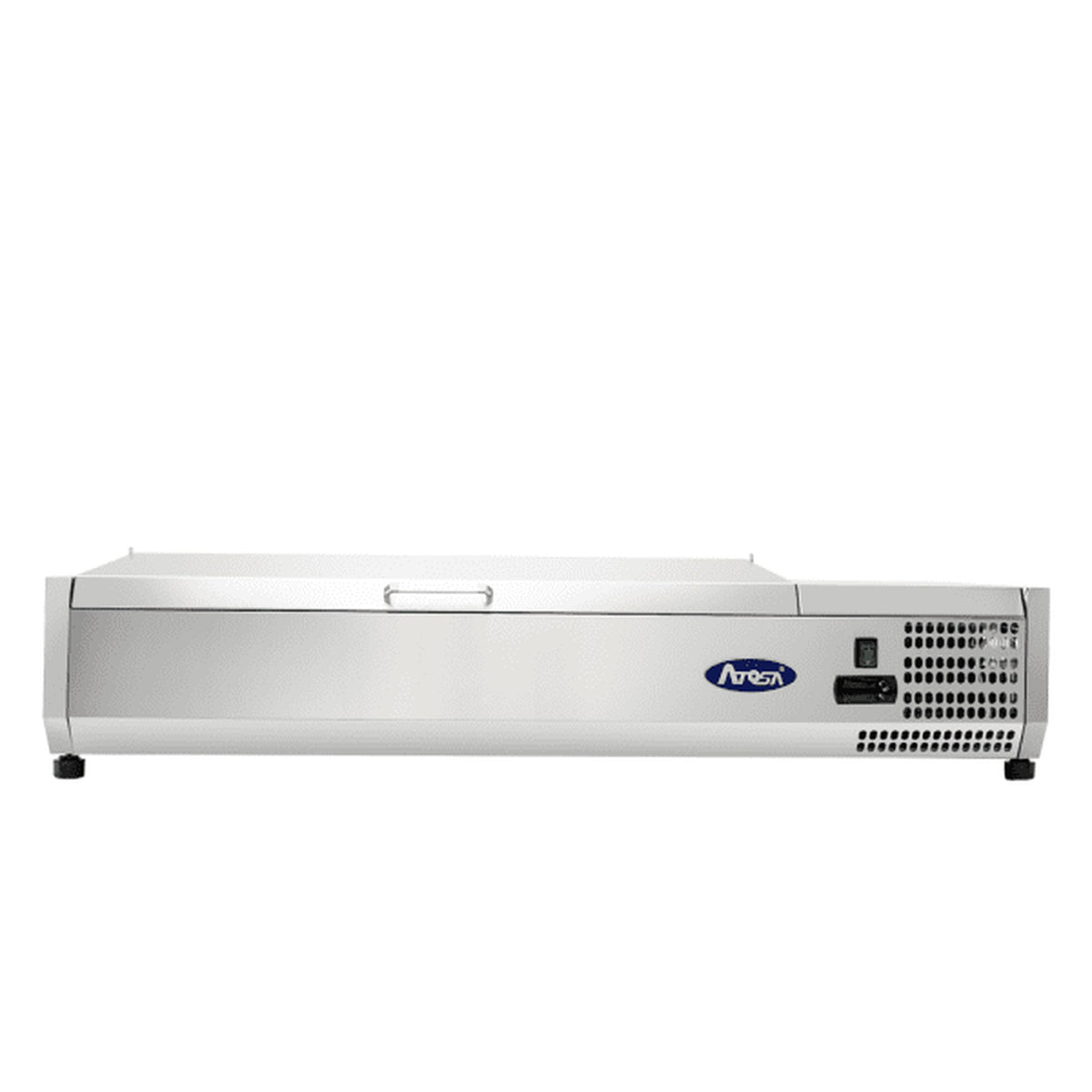

Atosa Refrigerated Countertop Prep Station 48" - 10 1/6 Pans MSCT-48-10

The Atosa MSCT-48-10 is a refrigerated countertop prep station for sandwich, salad, pizza and deli lines that need cold toppings at the counter without giving up floor space. It measures 50.1" wide, 15.6" deep and 11.8" high and holds ten 1/6 size, 6" deep pans, which are included. An electronic controller holds 35°F to 38°F. The side-mounted, self-contained 1/7 HP R290 system runs on 115V and plugs into a standard NEMA 5-15 outlet, and the interior and exterior are stainless steel. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Countertop design: sits on an existing counter or worktop and uses no floor space
• Holds ten 1/6 size pans, and ten 6" deep poly pans are included
• The electronic temperature controller holds 35°F to 38°F
• Side-mounted, self-contained compressor
• R290 hydrocarbon refrigerant, which is natural and has low global warming potential
• Stainless steel interior and exterior that wipe clean
• 1/7 HP, 115V, 1.7 A, 180 W, with a cord and NEMA 5-15P plug
• Rated energy use of 0.51 kWh per 24 hours
• cETLus listed for electrical safety and ETL-Sanitation listed

Atosa MSCT-48-10 specifications

Brand	Atosa
Model number	MSCT-48-10
Product type	Refrigerated countertop prep station
Pan capacity	(10) 1/6 size pans
Pans included	(10) 1/6 size, 6" deep poly pans
Capacity	1.5 cu. ft.
Doors	1
Exterior width	50.1" (50-1/10")
Exterior depth	15.6" (15-3/5")
Exterior height	11.8" (11-4/5")
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigeration system	Self-contained, side-mounted compressor
Refrigerant	R290 hydrocarbon
Compressor	1/7 HP
Electrical	115V / 60 Hz / 1-phase, 1.7 A, 180 W
Plug	NEMA 5-15P, cord included
Energy consumption	0.51 kWh per 24 hours
Exterior material	Stainless steel
Interior material	Stainless steel
Net weight	61.7 lb
Shipping weight	108 lb
Certifications	cETLus, ETL-Sanitation
Warranty	2 years parts and labor, plus 3 more years on the sealed compressor (5 years total)

Frequently asked questions

What outlet does the Atosa MSCT-48-10 need?

It needs a standard 115V, 60 Hz, single-phase grounded outlet that accepts a NEMA 5-15P plug. The unit draws 1.7 A (180 W) and comes with its cord and plug, so no hardwiring is needed.

What temperature does it hold, and is it a refrigerator or a freezer?

It is a refrigerator. The electronic controller holds the pans at 35°F to 38°F, which keeps cold-held toppings and ingredients at or below 41°F. It is not built to freeze food.

How many pans does it hold, and are they included?

It holds ten 1/6 size pans, and ten 6" deep poly pans come with the unit. The rated capacity is 1.5 cu. ft.

Is this a 48" or a 50" unit?

The model number refers to the 48" class, but the unit is 50.1" wide. Plan for 50.1" of counter length, a 15.6" deep counter and 11.8" of height.

How much counter space and support does it need?

It needs a flat counter at least 50.1" long and 15.6" deep that can hold 61.7 lb plus the weight of the filled pans. Leave space beside the side-mounted compressor so it can breathe.

What certifications does it have?

It is cETLus listed and ETL-Sanitation listed. cETLus means Intertek tested it to US and Canadian electrical safety standards. ETL-Sanitation means it meets the food equipment sanitation standards that health inspectors check for in commercial kitchens.

What warranty comes with it?

Atosa covers parts and labor for 2 years against defects in materials and workmanship. It covers the sealed compressor for 3 more years, up to 5 years from installation. The extra compressor coverage applies to the sealed compressor parts only. It does not cover the cabinet, finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical parts. Claims go directly to Atosa and need the model number, serial number, proof of purchase and installation date.

What refrigerant does it use, and how much energy?

It uses R290, a natural hydrocarbon refrigerant, and is rated at 0.51 kWh per 24 hours with a 1/7 HP compressor.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
