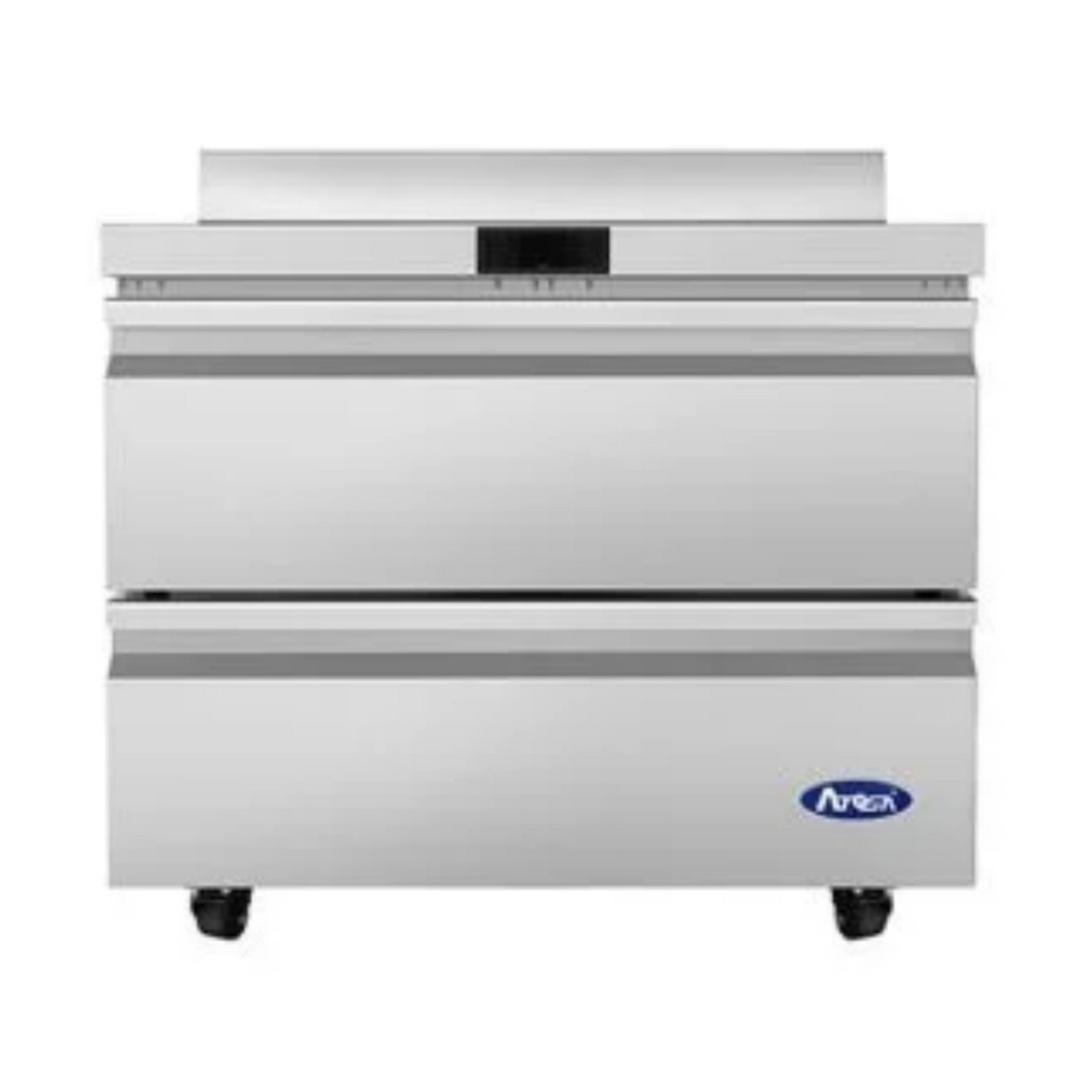

Atosa Worktop Freezer Stainless Steel w/ Backsplash 36" - 2 Drawers AWF36D2

The Atosa AWF36D2 is a 36" two-drawer worktop freezer with a backsplash. It is built for restaurants, cafes, sandwich shops and institutional kitchens that want frozen product stored right under a prep surface. The cabinet measures 36-3/8" wide, 30" deep and 38-7/8" high and holds 8.97 cu. ft. at -8°F to 1°F. It plugs into a standard 115V outlet with a NEMA 5-15P plug and draws 4.8 A, using a 1/4+ HP compressor that runs on R290 refrigerant. The interior and exterior are stainless steel, with a reinforced stainless steel worktop and backsplash, and the unit stands on 5" swivel stem casters. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Two freezer drawers with 8.97 cu. ft. of total storage.
• Holds -8°F to 1°F, set with an electronic temperature controller.
• Each drawer comes with one full-size (12" x 20") pan, 6" deep.
• Each drawer also takes six 1/6-size pans.
• Reinforced stainless steel worktop with backsplash gives you a prep surface above the drawers.
• Stainless steel interior and exterior.
• Magnetic drawer gaskets seal each drawer.
• Recessed drawer handles stay out of the way in tight lines.
• Comes with 5" swivel stem casters, two with brakes and two without.
• Uses R290 hydrocarbon refrigerant.
• Runs on 115V, 4.8 A, with a NEMA 5-15P plug.

Atosa AWF36D2 specifications

Brand	Atosa
Model number	AWF36D2
Product type	Worktop freezer with drawers and backsplash
Drawers	2
Capacity	8.97 cu. ft.
Exterior width	36-3/8"
Exterior depth	30"
Exterior height	38-7/8"
Temperature range	-8°F to 1°F
Temperature control	Electronic controller
Pan capacity	1 full-size (12" x 20") 6" deep pan per drawer included; each drawer takes six 1/6-size pans
Refrigerant	R290
Compressor	1/4+ HP
Electrical	115 V / 60 Hz / 1 phase, 4.8 A
Plug	NEMA 5-15P
Exterior material	Stainless steel, reinforced stainless steel top with backsplash
Interior material	Stainless steel
Drawer seal	Magnetic gaskets
Handles	Recessed
Casters	5" swivel stem, set of 4 (2 with brake)
Net weight	172 lb
Shipping weight	236 lb
Certifications	cETLus, ETL Sanitation
Warranty	2 years parts and labor; additional 3 years on sealed compressor parts (5 years total on compressor)

Frequently asked questions

Is the Atosa AWF36D2 a freezer or a refrigerator?

The AWF36D2 is a freezer that holds -8°F to 1°F. The refrigerator version with the same cabinet is the Atosa AWR36D2, which holds 35°F to 38°F.

What outlet does the AWF36D2 need?

It needs a standard 115V, 60 Hz, single-phase NEMA 5-15R outlet. It comes with a NEMA 5-15P plug and draws 4.8 A.

Will the AWF36D2 fit through a standard doorway?

Yes. The cabinet is 30" deep, so it fits through a 36" doorway, and at 38-7/8" high it is far below an 80" door opening.

How many food pans does the AWF36D2 hold?

Each drawer comes with one full-size 12" x 20" pan, 6" deep. Each drawer can also hold six 1/6-size pans, so the unit takes up to twelve 1/6-size pans across both drawers.

What certifications does the AWF36D2 have?

It is cETLus listed and ETL Sanitation listed. cETLus means it meets U.S. and Canadian electrical safety standards. ETL Sanitation means it meets the food equipment sanitation standards that health inspectors look for in commercial kitchens.

What warranty comes with the AWF36D2?

Atosa covers parts and labor for 2 years from the original installation date or 27 months from the date Atosa shipped the unit, whichever comes first. The sealed compressor is covered for 3 more years, up to 5 years in total. That extra compressor coverage applies only to the compressor's sealed parts. It does not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical components. Covered labor is paid at standard straight-time rates only. Warranty claims go directly to Atosa and must include the model number, serial number, proof of purchase and installation date.

What caster options are available for the AWF36D2?

It comes with 5" swivel stem casters: part B0604007 with brake and B0604006 without. Atosa also offers 1.2", 1.5" and 2" low-profile swivel plate casters and 4" swivel stem casters. Extended warranty coverage up to 5 years is available as well.

How does the AWF36D2 compare with other Atosa drawer models?

The AWF48D4 is the 48-1/4" wide version, with four drawers and 12.22 cu. ft. of capacity. It uses the same 1/4+ HP compressor and 4.8 A draw. The AWR36D2 is the refrigerator version of the AWF36D2, with the same footprint and a 1/7+ HP compressor that draws 3.4 A. The AUF36D2 is a two-drawer undercounter freezer with no backsplash. It has a lower cabinet and comes with 2" plate casters, so it fits under an existing counter.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
