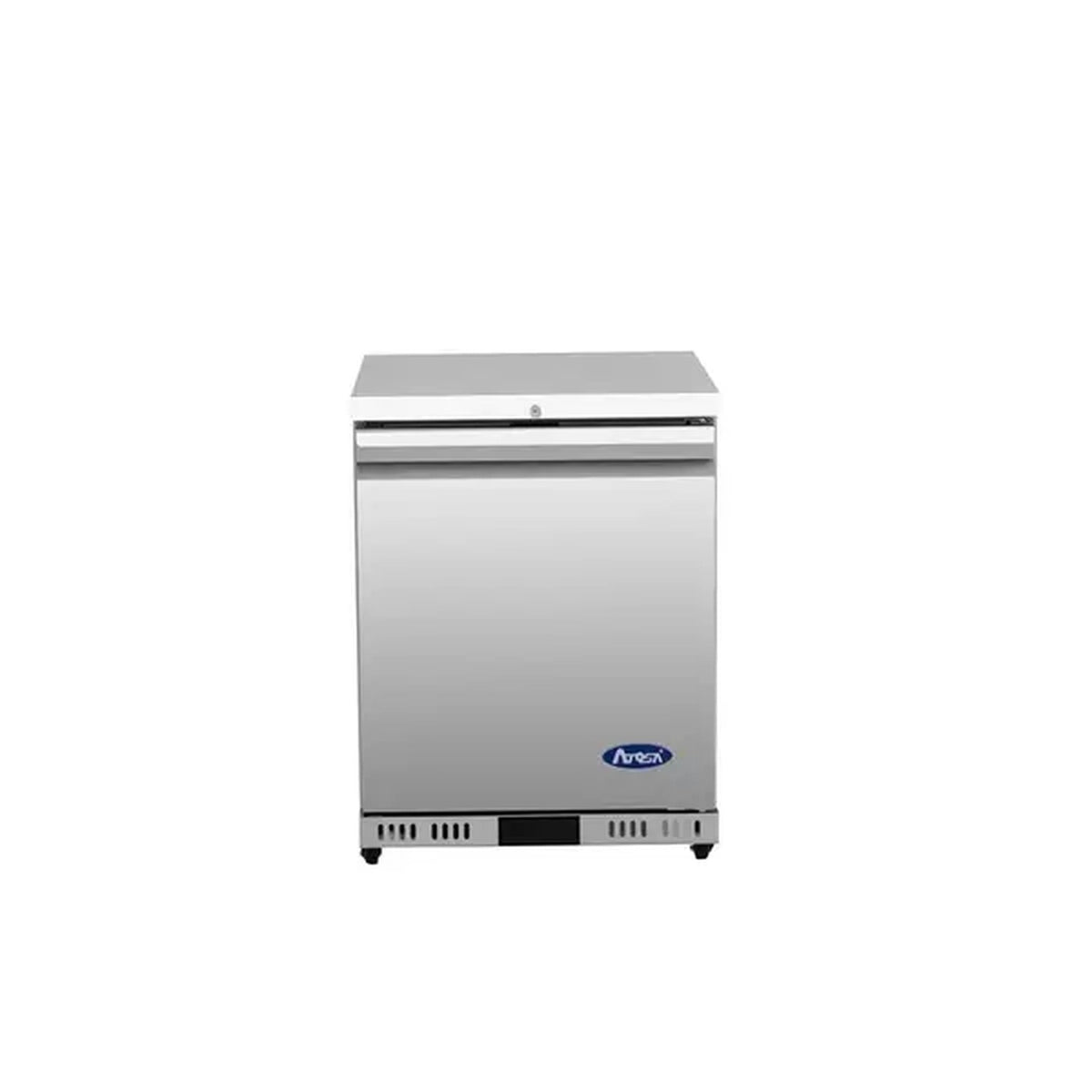

Atosa Undercounter Refrigerator Stainless Steel 24" 3.7 Cu. Ft. - 1 Door - AUR24SD

The Atosa AUR24SD is a one-door, 24-inch shallow depth commercial undercounter refrigerator for bars, coffee stations, food trucks and compact prep lines where a standard 30-inch-deep cabinet sticks out too far. It measures 23-7/8" wide, 26" deep and 32-1/2" high, and gives you 3.7 cu. ft. of storage. An electronic controller holds 35°F to 38°F, using a rear-mounted, self-contained R290 system rated at 1/7 HP. It runs on 115V and draws 2.4 A, with stainless steel inside and out. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Shallow 26" depth, 4" shallower than the 30"-deep AUR27SD and the larger AUR models.
• Electronic temperature controller with a 35°F to 38°F holding range.
• Environmentally friendly R290 hydrocarbon refrigerant.
• Stainless steel exterior and interior, with a galvanized steel back.
• Field reversible door, so the hinge side can be changed on site.
• Self-closing door with a stay-open feature.
• Magnetic door gasket for a positive seal without a latch.
• Pre-installed epoxy-coated shelving that resists rust and corrosion in humid conditions.
• Pre-installed 2" heavy-duty swivel plate casters, including braking casters.
• Automatic condensate evaporation, so no floor drain is needed.
• Plugs into a standard 115V outlet with a NEMA 5-15P plug.

Atosa AUR24SD specifications

Brand	Atosa
Model number	AUR24SD
Product type	Undercounter refrigerator, reach-in, shallow depth
Sections / doors	1 section, 1 hinged solid door, field reversible
Capacity	3.7 cu. ft.
Exterior width	23-7/8"
Exterior depth	26"
Exterior height	32-1/2"
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigeration	Self-contained, rear-mounted
Refrigerant	R290
Compressor	1/7 HP
Electrical	115 V / 60 Hz / 1 phase, 2.4 A
Plug	NEMA 5-15P
Shelves	Epoxy-coated, pre-installed
Exterior material	Stainless steel, galvanized steel back
Interior material	Stainless steel
Door gasket	Magnetic
Condensate	Automatic evaporation
Casters	2" heavy-duty swivel plate casters, pre-installed
Net weight	108 lb
Shipping weight	138 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation
Warranty	2 years parts and labor, 5 years compressor parts

Frequently asked questions

Is the Atosa AUR24SD a refrigerator or a freezer?

It is a refrigerator that holds 35°F to 38°F. The matching freezer in the same cabinet size is the Atosa AUF24SD, which holds -8°F to 0°F.

What outlet does the AUR24SD need?

It needs a standard 115V, 60 Hz, single-phase outlet that accepts a NEMA 5-15P plug, and it draws 2.4 A. Plug it straight into the wall. Atosa's warranty does not cover damage caused by extension cords, low voltage or voltage drops.

Will it fit through a standard doorway?

Yes. At 23-7/8" wide and 26" deep, it fits through a 36" doorway either way. At 32-1/2" high, it is far below an 80" door opening.

How is the AUR24SD different from the AUR27SD?

The AUR24SD is the shallow-depth model: 23-7/8" wide by 26" deep, with 3.7 cu. ft. of storage. The AUR27SD is 27-1/2" wide by 30" deep and holds 6.4 cu. ft. Choose the AUR24SD when depth or width is limited, and the AUR27SD when you need more space and have room for it. Both are 32-1/2" high.

What certifications does it have?

It is cETLus listed to UL 471 and CSA C22.2 No. 120, so it meets US and Canadian electrical safety standards for commercial refrigerators. It is also ETL Sanitation listed, which health inspectors accept as proof of compliance with foodservice sanitation standards.

What warranty comes with it?

Atosa covers parts and labor for 2 years and the sealed compressor for 5 years. After year 2, the compressor coverage applies only to the sealed parts of the compressor. It does not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical parts. Claims go through Atosa and need the model number, serial number, proof of purchase and installation date.

What factory options are available?

Atosa offers field-installable drawer cartridges, 1.2" and 1.5" low-profile swivel plate casters, 4" and 5" swivel stem casters, and an extended warranty of up to 5 years.

Does it need a drain?

No. Condensate is evaporated automatically, so the unit does not need a floor drain or a drain line.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
