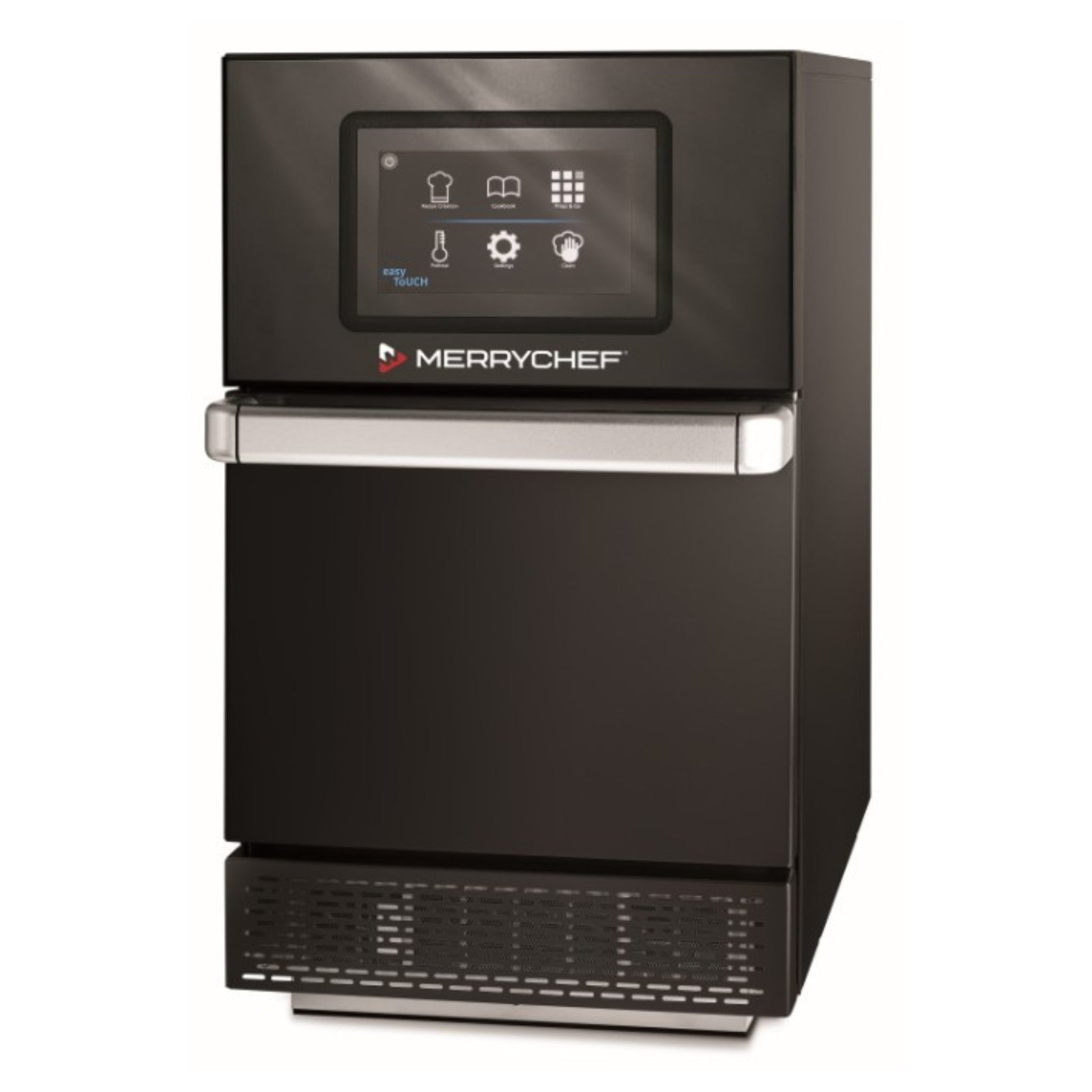

Merrychef conneX 12 Ventless High-Speed Convection/Impingement Oven - CONNEX12HIGHPOWERBLACK-CBTL

The Merrychef conneX 12 High Power (model CONNEX12HIGHPOWERBLACK) is a commercial ventless countertop convection/impingement oven combining microwave, convection, and tuned impingement technologies in a carbon black finish, built for quick-service restaurants, cafes, kiosks, concession stands, and any foodservice operation that needs rapid, consistent cooking without a hood exhaust requirement.

• Countertop high-speed commercial oven using tri-plex technology — microwave, convection, and tuned impingement — suited for toasting, grilling, reheating, and cooking fresh or frozen items to order
• Stainless steel cooking cavity and exterior construction with a carbon black finish; large rounded interior corners and sealed cavity edges for ease of cleaning and long-term durability
• 12" x 12" cooking cavity (approximately 1 cu. ft.) inside a 14" wide unit, fitting on a standard 24" countertop with no side clearance required; only 2" clearance needed above the unit
• Operates at 208-240V/60/1-ph, draws 30 amps, and ships with a 6-foot cord and NEMA 6-30P plug; ventless operation uses built-in catalytic converters, eliminating the need for an external exhaust hood — confirm ventless compliance with your local authority having jurisdiction before installation
• Stainless steel cavity with sealed rounded edges wipes down easily; patented front-mounted monitored air filter is accessible without tools; cool-to-touch exterior allows placement without spacing requirements on sides; quiet operation below 48 dBa makes the unit suitable for front-of-house use
• Includes EasyTouch 2.0 icon-driven 7" HD color touchscreen with 100+ pre-programmed recipes; multi-stage cooking profiles with up to 6 stages per program; Wi-Fi and ethernet connectivity with Welbilt KitchenConnect cloud platform for remote menu updates and oven monitoring; accessories included: cook plate (DB0739), paddle (SR318), solid bottom basket (32Z4165), cool down pan (32Z4079), non-stick cooking liner (32Z4088), and oven cleaner/protector pack (32Z4148)
• cULus certified and UL EPH Classified
• EPA 202 tested (8-hour) for grease and odor emissions via internal catalytic filtration
• Ventless certified

Dimensions: Approximately 20" W x 24" D x 16" H (exterior); 12" W x 12" D x 6-11/16" H (interior cavity)
