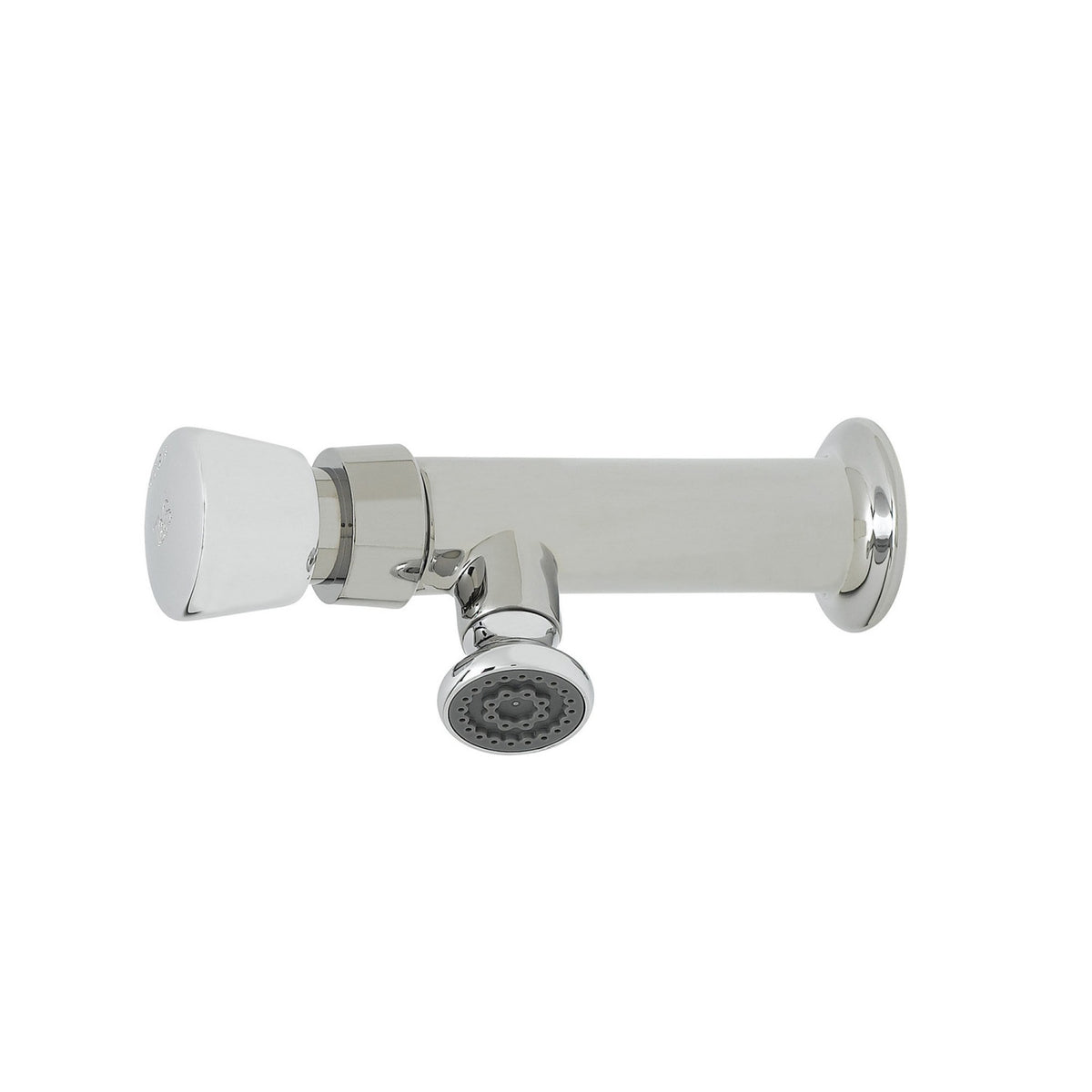

T&S Brass Chrome Brass Wall Mount Metering Faucet NSF, 1/2" NPT - B-0800

The T&S Brass B-0800 is a commercial wall mount metering faucet designed for single-temperature handwashing stations in restaurants, institutional kitchens, and high-traffic foodservice facilities. It delivers timed, self-closing water flow through a push button mechanism, helping control water usage without requiring manual shutoff.

• Single-hole, single-temperature wall mount configuration with a slow self-closing metering cartridge and push button activation; the adjustable metering cycle runs 10 to 30 seconds per activation
• Polished chrome plated brass body with a chrome plated metal push button cap; the push button cap includes a vandal-resistant screw for high-traffic installations
• 6-1/2" overall length with a 4" projection from wall to outlet center and a 1-1/4" diameter rosespray spray head; shipping weight approximately 2.4 lbs
• Connects via 1/2" NPT female inlet to standard plumbing supply lines; single-hole wall mount installation; rated for water pressure between 20 and 125 psi and temperatures from 40°F to 140°F
• Non-aerated rosespray outlet delivers 2.2 GPM; vandal-resistant construction and external flow adjustment allow on-site tuning without removing the faucet from the wall
• Made in America; well-suited for commercial handwashing sinks, mop sinks, restroom lavatory applications, and institutional or medical facilities where timed shutoff is required

• Certified to ASME A112.18.1/CSA B125.1
• Certified to NSF 61-Section 9 and NSF 372 (low lead)
• Meets ADA ANSI/ICC A117.1 requirements; requires less than 5 lbs. of operating force to activate

Dimensions: 6-1/2" overall length; 4" wall to outlet projection; 1-1/4" spray head diameter
