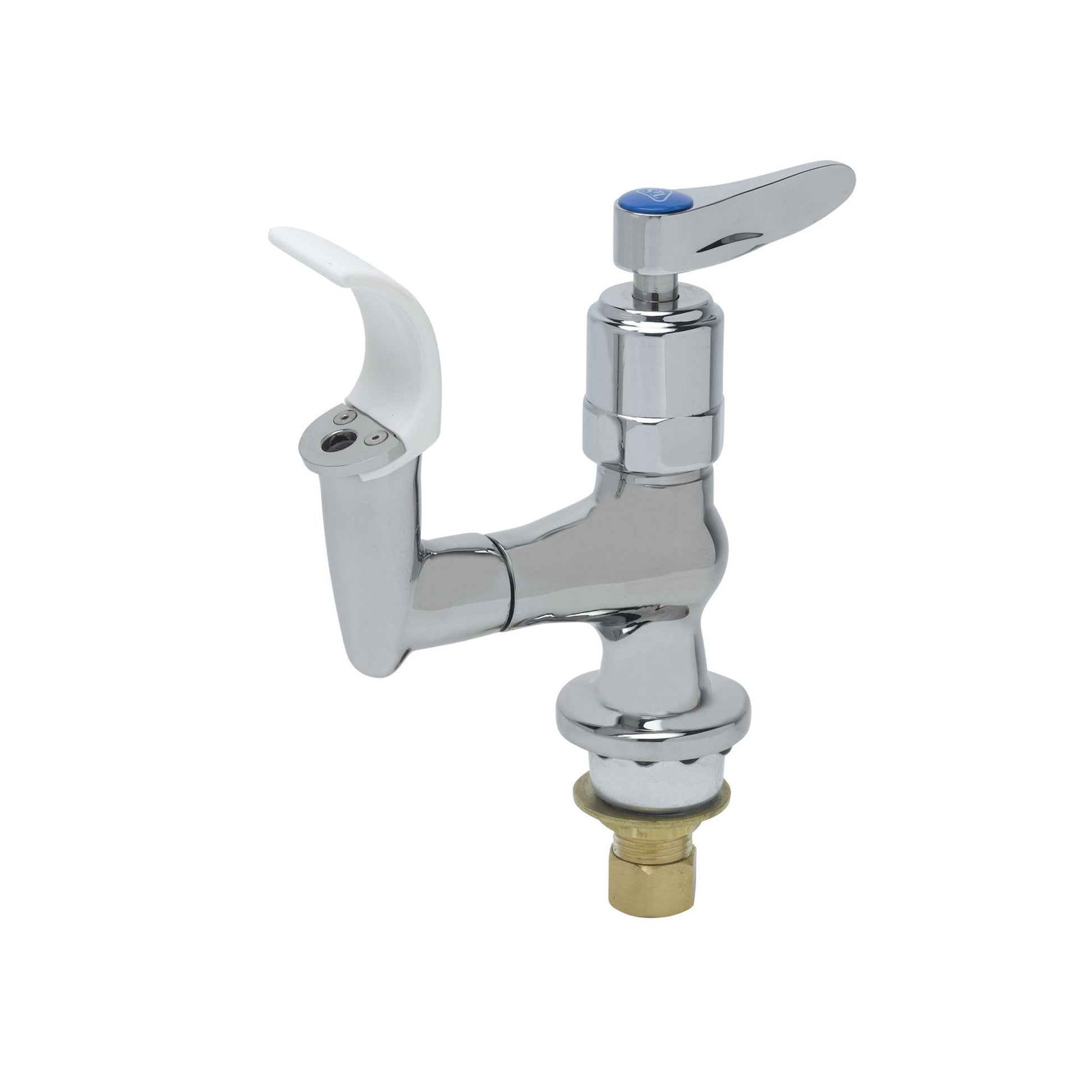

T&S Brass Deck Mount Bubbler Chrome Brass Flexible Mouth Guard NSF - B-2360

The T&S Brass B-2360 is a deck mount drinking fountain bubbler designed for commercial and institutional installations where reliable, hands-operable hydration access is required. It suits foodservice facilities, schools, healthcare environments, and similar high-traffic settings that need a durable, code-compliant bubbler with field-adjustable flow.

• Deck mount bubbler intended for commercial drinking fountain applications, featuring a fast self-closing cartridge and a lever handle with vandal resistant screw.

• Constructed with a polished chrome plated brass body, flexible rubber mouth guard, and chrome plated metal handle.

• Nozzle flow rate is 0.32 GPM (1.21 L/min); operates within a pressure range of 20 to 125 psi and a temperature range of 40°F to 140°F.

• Connects via a 1/2" NPSM male inlet with coupling nut for straightforward deck installation.

• A hidden flow control screw provides adjustable outlet flow, allowing installers to fine-tune water arc on-site without replacing components.

• The mounting flange supports an anti-rotation feature with optional set screws, adding installation stability on decks subject to frequent use.

Certifications:

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372.
• Meets ADA ANSI/ICC A117.1 requirements.
