T&S Brass Double Knee Pedal Valve Ledge-Mount NSF Brass w/ 1.2 - B-0509-D127XV12

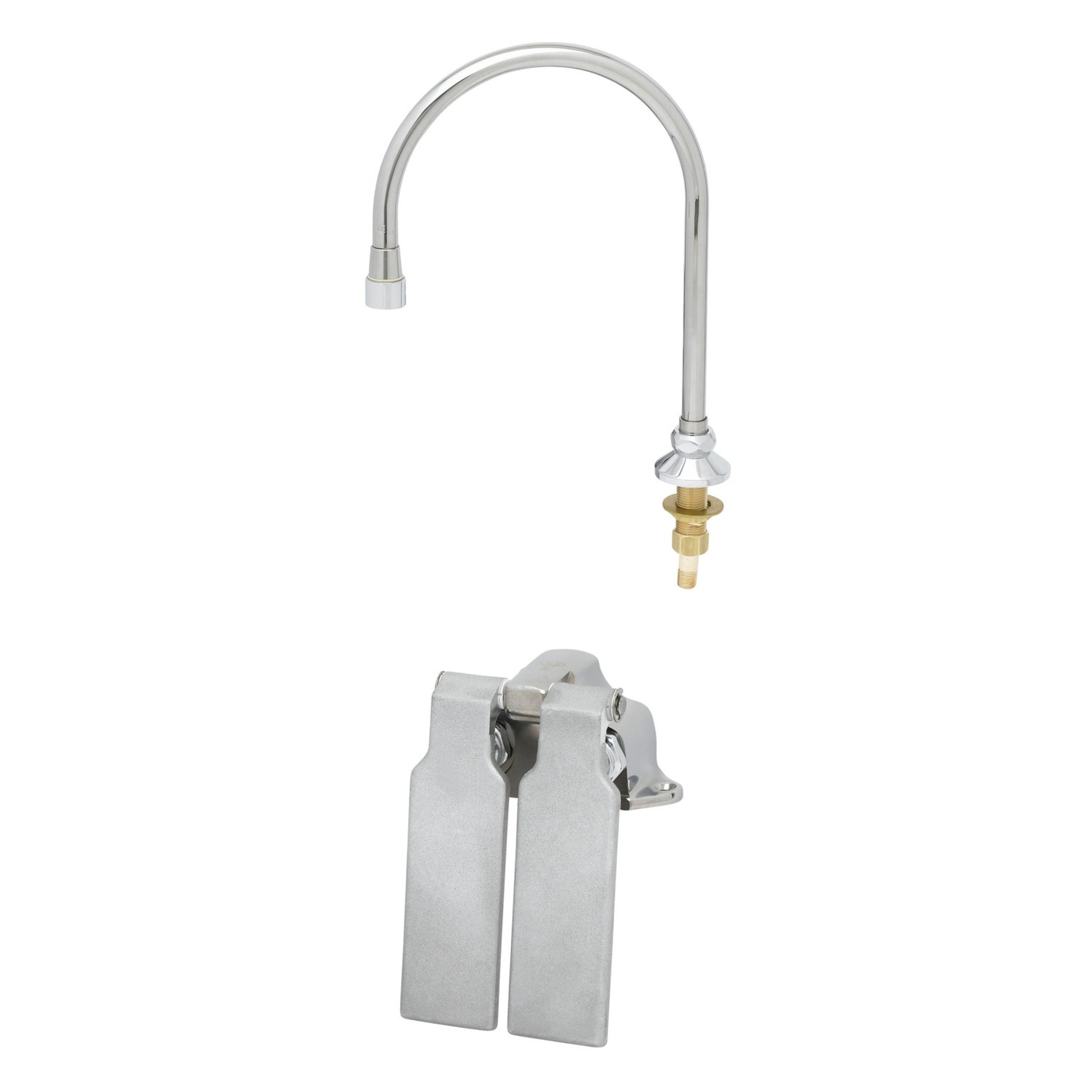

The T&S Brass B-0509-D127XV12 is a ledge-mount double knee pedal valve designed for hands-free water control at commercial sinks in restaurants, cafeterias, and foodservice facilities. It ships as a complete assembly including the dual pedal valve body and a deck-mount 7 13/16" dummy rigid/swivel gooseneck nozzle with a 1.2 GPM vandal-resistant aerator.

• Hands-free pedal valve for commercial foodservice use, including prep sinks, dishwashing stations, pot scrub sinks, and handwashing applications where touchless water activation is required
• Polished chrome-plated solid brass body with aluminum knee pedals; self-closing valves return to the off position automatically when pressure is released
• Double pedal configuration with inlets spaced on 2-1/2" centers; valve base sits approximately 24" from the floor; pedals measure 6-1/4" in length; includes a 7 13/16" deck-mount rigid/swivel gooseneck with 1/2" NPSM male base flange
• Connects via 1/2" NPT female inlets and outlet; ledge-mount installation with mounting screws included; gooseneck swivels for flexible water delivery positioning
• Aluminum pedals flip up for access during cleaning; low-lead construction (0.25% max lead content); rated for 20 to 125 psi and 40 to 140°F operating conditions
• Carries a 1-year limited manufacturer warranty; cCSAus listed; made in the USA

• Certified to ASME A112.18.1/CSA B125.1
• NSF 61-Section 9 and NSF 372 certified for low-lead compliance

Dimensions: Valve body approximately 3-9/16" L x 5-5/16" W; gooseneck 7 13/16" deck mount; approximately 24" floor to valve base
