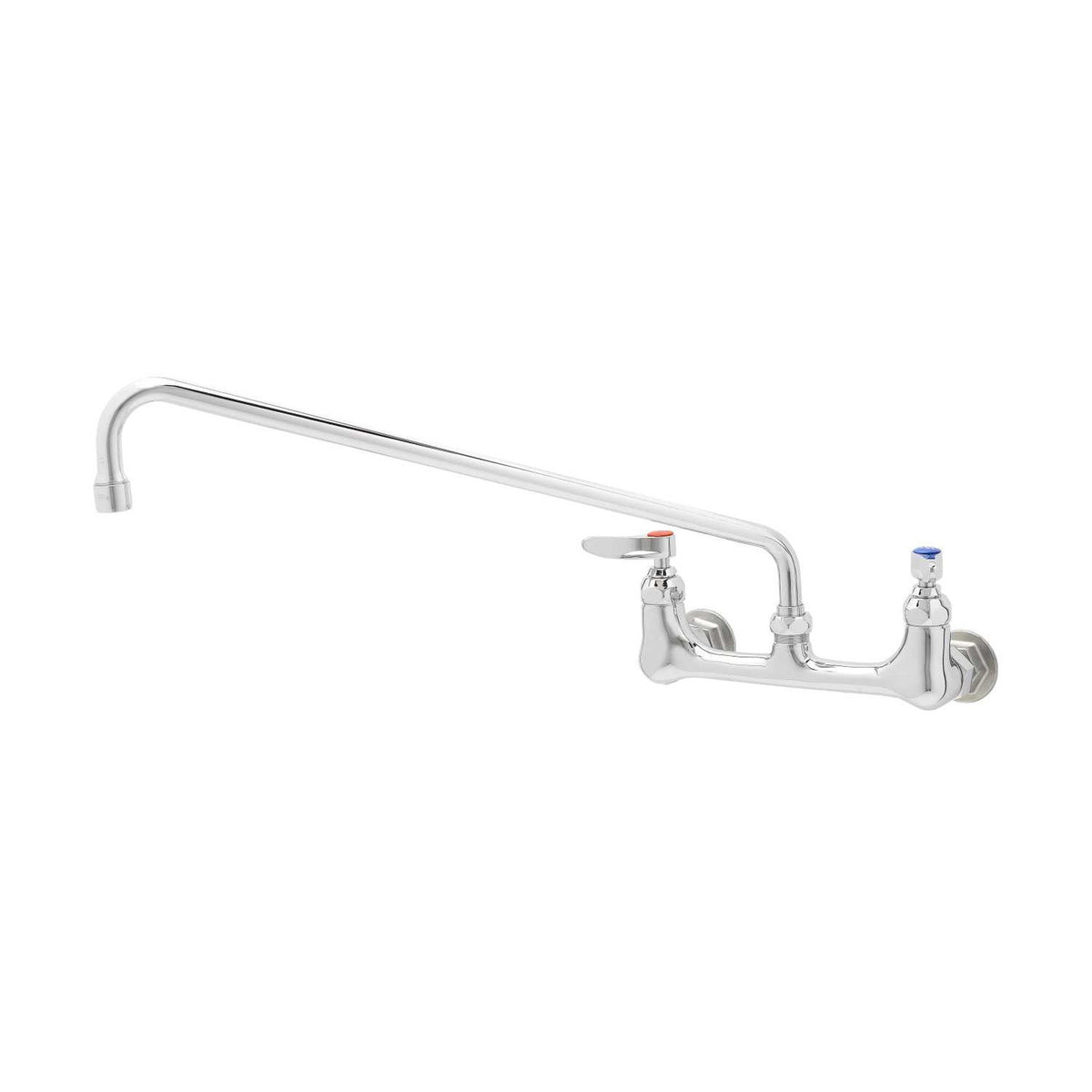

T&S Brass Double Pantry Faucet Wall Mount Chrome 8" Centers 18" Swing - B-0230

The T&S Brass B-0230 is a commercial wall mount double pantry faucet built for three-compartment sinks, prep sinks, and utility areas in foodservice operations where a durable, code-compliant mixing faucet is required. It ships complete with an 18" swing nozzle, making it ready to install without purchasing a nozzle separately.

• Double pantry wall mount mixing faucet designed for commercial kitchen, janitorial, and foodservice sink applications requiring hot and cold water mixing at a single fixture
• Body constructed from polished chrome plated brass with chrome plated metal lever handles; includes a lock washer to convert the swivel outlet to a rigid application when needed
• Mounts at 8" centers with adjustable spread from 7-3/4" to 8-1/4"; connects via 1/2" NPT female eccentric inlets with 2" flanges to accommodate minor supply line offset
• Includes a 065X 18" swing nozzle with a Series 1 stream regulator outlet to direct flow and reduce backsplash; the swivel base also accepts other T&S swing nozzles if a different reach is needed
• Quarter-turn Eterna compression cartridges with spring checks prevent cross-flow of hot and cold water and are engineered to hold up in water supplies containing sand or grit with minimal maintenance
• Manufactured in the USA; lever handles include color-coded indexes for hot/cold identification; operating range is 20-125 psi and 40-140 degrees F

• Certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, and NSF 372 (low lead)
• Meets ADA ANSI/ICC A117.1 requirements

Dimensions: Spout Length: 18" | Faucet Height: 9-9/16" | Faucet Width: 12-5/8"
