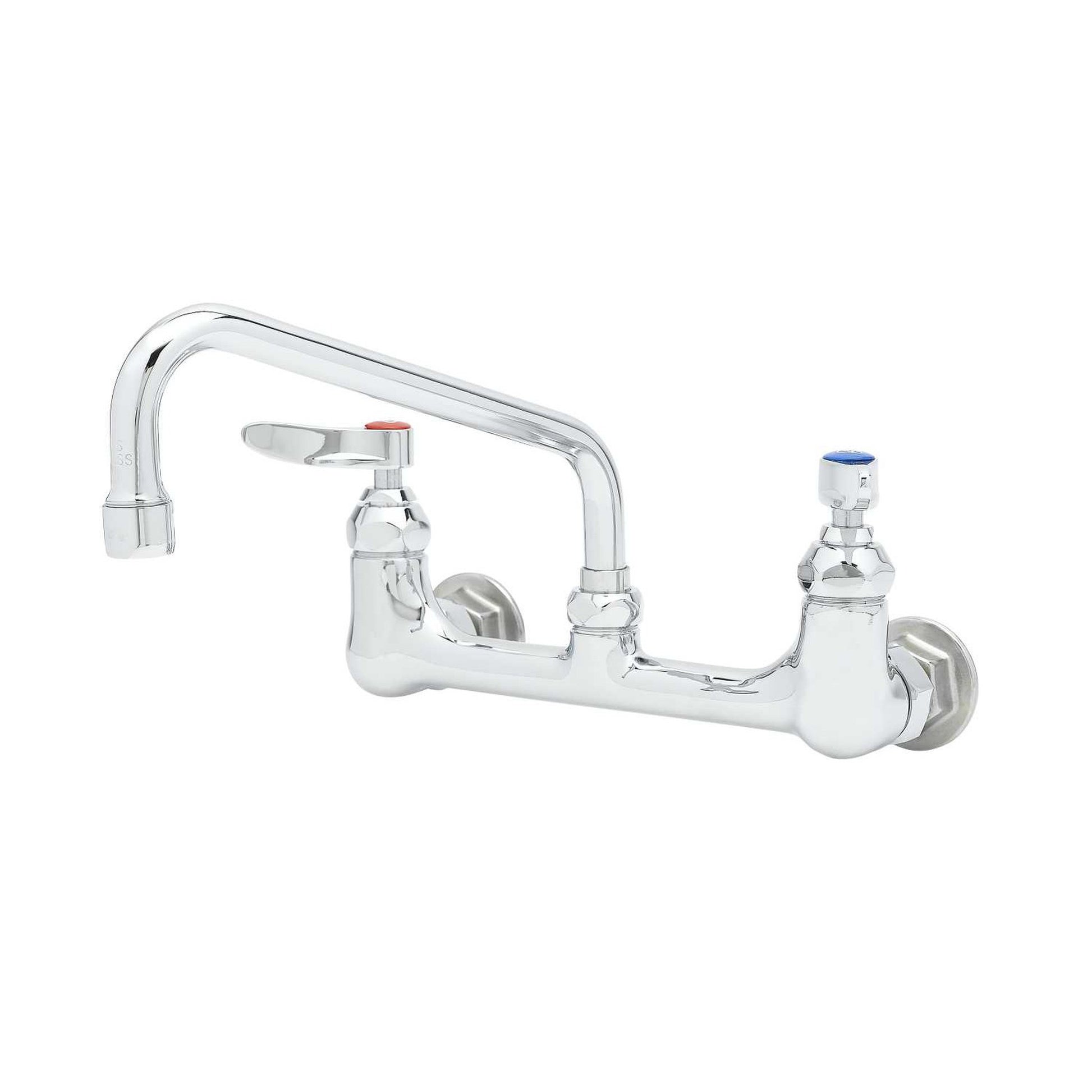

T&S Brass Double Pantry Faucet Wall Mount NSF 8" Centers 8" Swing Nozzle - B-2414

The T&S Brass B-2414 is a commercial wall mount double pantry faucet built for food prep sinks, handwashing stations, and sanitation areas in commercial kitchens, institutional foodservice operations, and restaurants. It mounts to the wall with 8" adjustable centers and delivers reliable hot and cold water mixing through a single 8" swing nozzle with a stream regulator outlet.

• Commercial wall mount double pantry faucet designed for foodservice sink applications including food prep, handwashing, and sanitation stations
• Polished chrome plated brass body construction with Eterna quarter-turn compression cartridges and lever handles with color-coded indexes for hot and cold identification
• 8" adjustable center spacing, 8" swing nozzle reach, 6-1/8" faucet height, and 12-5/8" overall width; flow rate of 9.73 GPM at 60 psi; rated for water temperatures between 40°F and 140°F at 20-125 psi
• Installs wall mount with 1/2" NPT female inlets; a lock washer is included for rigid nozzle application when swing is not needed
• Spring checks on cartridges prevent cross-flow between hot and cold lines; stream regulator outlet maintains a consistent laminar flow; low lead construction meets water safety requirements
• Made in the USA; weighs 4.66 lbs; cross-references to model numbers 2414 and B-0230-LN060X

• NSF listed (NSF 61 Section 9 and NSF 372)
• Certified to ASME A112.18.1/CSA B125.1
• ADA compliant per ANSI/ICC A117.1

Dimensions: Spout Length: 8" | Faucet Height: 6-1/8" | Faucet Width: 12-5/8"
