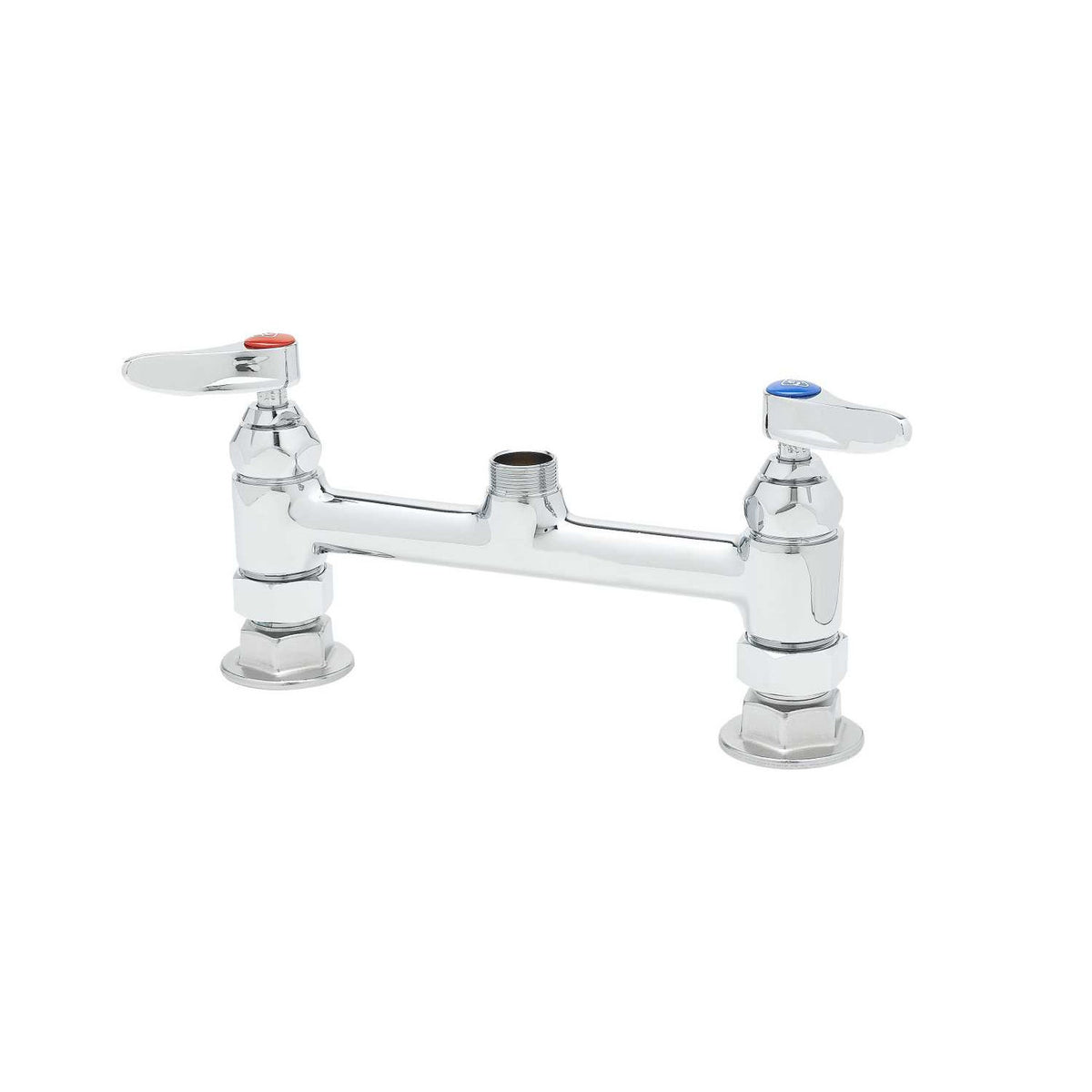

T&S Brass Double Pantry Swivel Base Faucet Deck Mount NSF 8" Centers - B-0220-LN

The T&S Brass B-0220-LN is a commercial deck mount double pantry swivel base faucet designed for foodservice prep sinks, pot-filling stations, and utility areas where a separate nozzle will be specified or already exists. It ships without a nozzle, giving operators and contractors the flexibility to pair it with any standard T&S swing nozzle for the application.

• Double pantry mixing faucet for commercial foodservice, laboratory, and industrial plumbing applications; deck mount configuration with a swivel outlet base that accepts T&S swing nozzles
• Polished chrome plated brass body and polished chrome plated metal handles; quarter-turn Eterna compression cartridges with spring checks to prevent cross-flow between hot and cold supply lines
• Installs on 8" centers (203 mm) with adjustable centers from 7-3/4" to 8-1/4"; overall product dimensions are approximately 3.5" x 8.5" x 13.25"
• Connects via 1/2" NPT female eccentric inlets with 2" flanges; a lock washer is included for rigid (non-swivel) installation if needed; rated for 20-125 psi and 40°F-140°F water temperature
• Less nozzle configuration keeps nozzle selection open; swivel outlet base is compatible with the full line of T&S swing nozzles, making this a practical base unit for new installations or direct replacements
• Made in the USA; lever handles include color-coded indexes for hot and cold identification; low lead content at 0.25% maximum

• Certified to NSF/ANSI 61 (Section 9) and NSF/ANSI 372
• Certified to ASME A112.18.1 / CSA B125.1
• Meets ADA ANSI/ICC A117.1 requirements
• Approved for City of Los Angeles and Commonwealth of Massachusetts plumbing codes
• Buy American Act / American Recovery and Reinvestment Act (BAA/ARRA) compliant

Dimensions: 3.5" W x 8.5" D x 13.25" H
