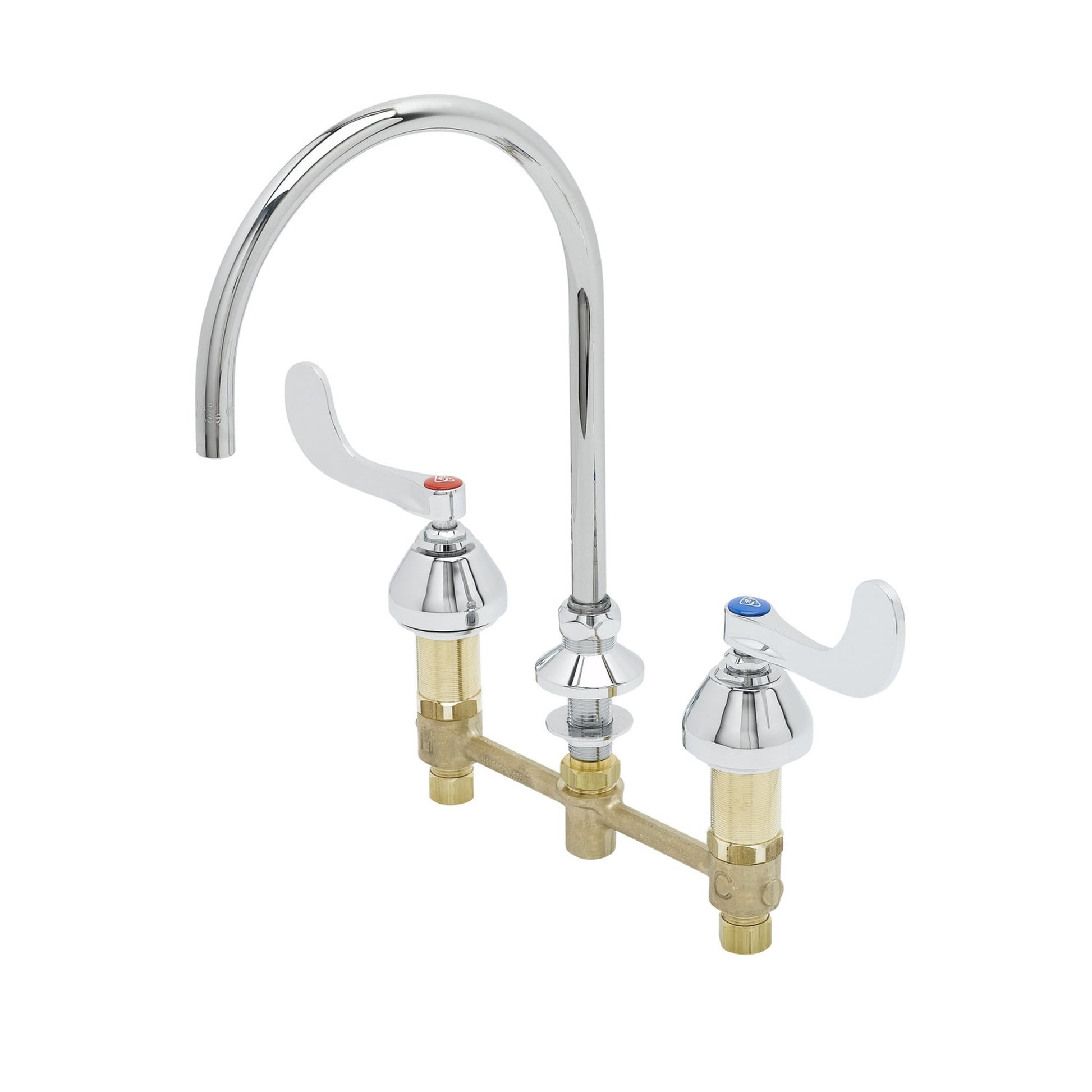

T&S Brass EasyInstall CWS Medical Faucet NSF Brass 8" Centers - B-2866-134XPF15

The T&S Brass B-2866-134XPF15 EasyInstall CWS medical faucet is a concealed deck-mount mixing faucet designed for commercial hand-washing applications in restaurants, healthcare facilities, and institutional environments requiring NSF-certified plumbing fixtures. With 8" centers and a straightforward installation configuration, it fits standard 3-hole widespread sink setups without the need for extensive labor or modification.

• Concealed deck-mount commercial medical faucet intended for hand-washing stations; the EasyInstall design reduces on-site installation time and labor compared to conventional widespread configurations
• Forged brass body with polished chrome-plated brass tubular spout and chrome-plated metal handles and escutcheons for corrosion resistance in commercial use
• 8" faucet centers with a 7 11/16" swivel/rigid 134XP gooseneck; overall height 11-1/2" deck to top, spout height 6-3/8" deck to outlet, and spout reach 7 11/16" base to outlet
• Fits 3-hole widespread sink decks with 8" centers; connects via 1/2" NPT male inlets with coupling nuts included; gooseneck can be locked rigid or used in swivel mode with plain end outlet
• Quarter-turn Eterna compression cartridges with spring checks prevent cross-flow; cartridges are individual-piece replaceable to simplify maintenance without pulling the full faucet
• Ships at approximately 6.4 lbs.; 4" wrist-action handles with color-coded indexes; flow rate controlled by 1.5 GPM disc in swivel piece

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372
• Meets ADA ANSI/ICC A117.1 requirements

Dimensions: Height: 11-1/2" (deck to top) | Spout Height: 6-3/8" (deck to outlet) | Spout Reach: 7-11/16" | Faucet Centers: 8"
