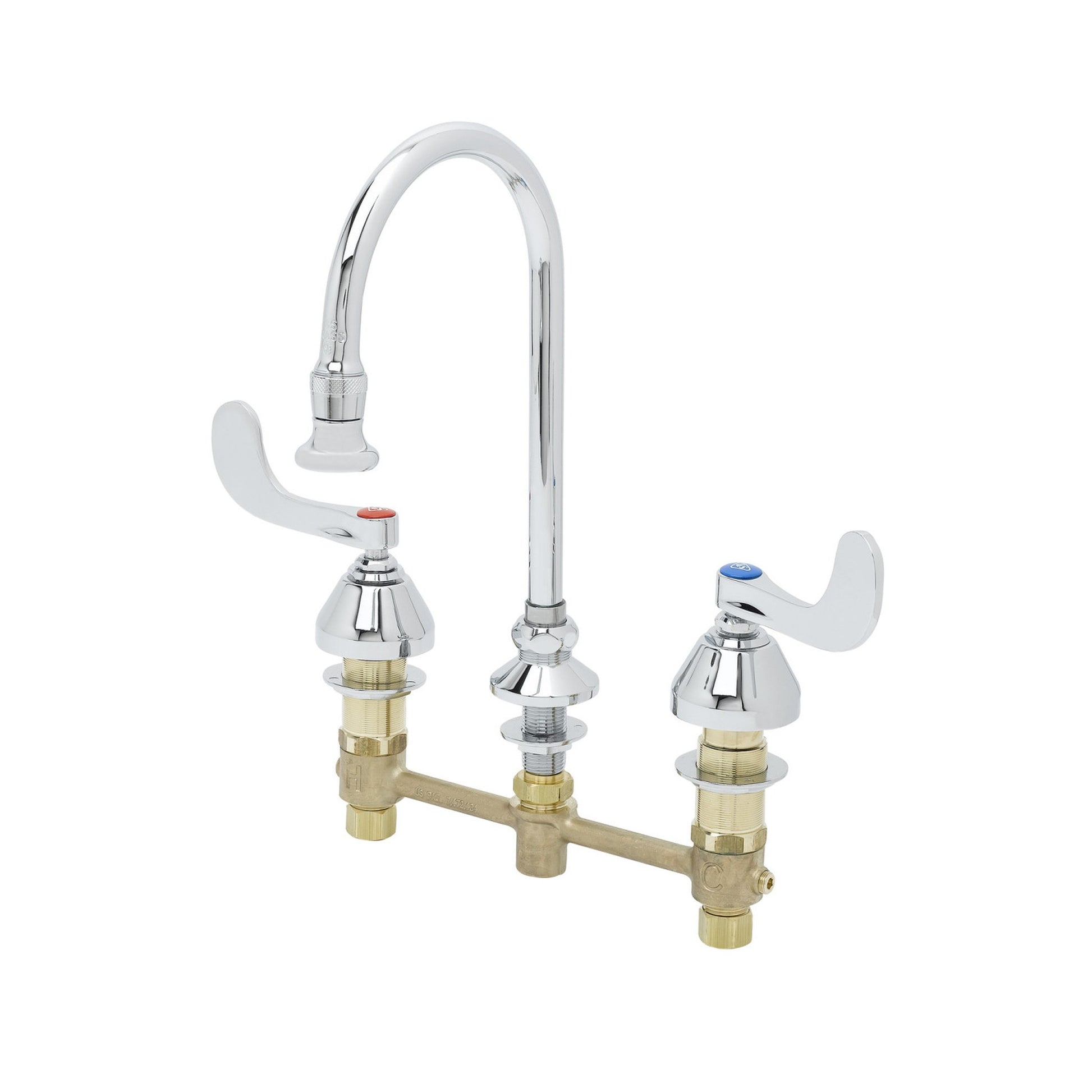

T&S Brass Medical Faucet Forged Brass Deck Mount NSF 8" Centers - Each - B-2865-04

The T&S Brass B-2865-04 is a commercial-grade medical lavatory faucet designed for hand-washing stations in foodservice, healthcare, and institutional settings where hands-free or wrist-operated controls are required by code or facility policy. It mounts on standard 8" centers with concealed deck installation, making it a direct fit for most commercial hand sink configurations.

• Concealed deck mount mixing faucet with 8" EasyInstall centers, designed for commercial hand sinks in restaurants, healthcare facilities, and institutional kitchens
• Body constructed of forged brass with a polished chrome-plated brass tubular spout and chrome-plated metal handles and escutcheons
• Spout reach is 5-13/16" with a gooseneck clearance of 5-1/16" from deck to spray face; overall faucet dimensions are 16" W x 5-13/16" D x 10-5/8" H
• Connects via 1/2" NPT male inlets with coupling nuts included; a lock washer is provided for rigid gooseneck applications, and the gooseneck can also be configured to swivel
• Quarter-turn Eterna compression cartridges with spring checks prevent cross-flow of hot and cold water; rated for 20-125 PSI operating pressure and 40-140 degrees F temperature range, with a 2.2 GPM rosespray outlet
• Includes 4" wrist action handles with color-coded indexes, allowing hands-free operation without hand contact on the handle surfaces, and ships pre-assembled for faster installation
• Certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, and NSF 372
• Meets ADA ANSI/ICC A117.1 requirements
• BAA/ARRA compliant

Dimensions: 16" W x 5-13/16" D x 10-5/8" H
