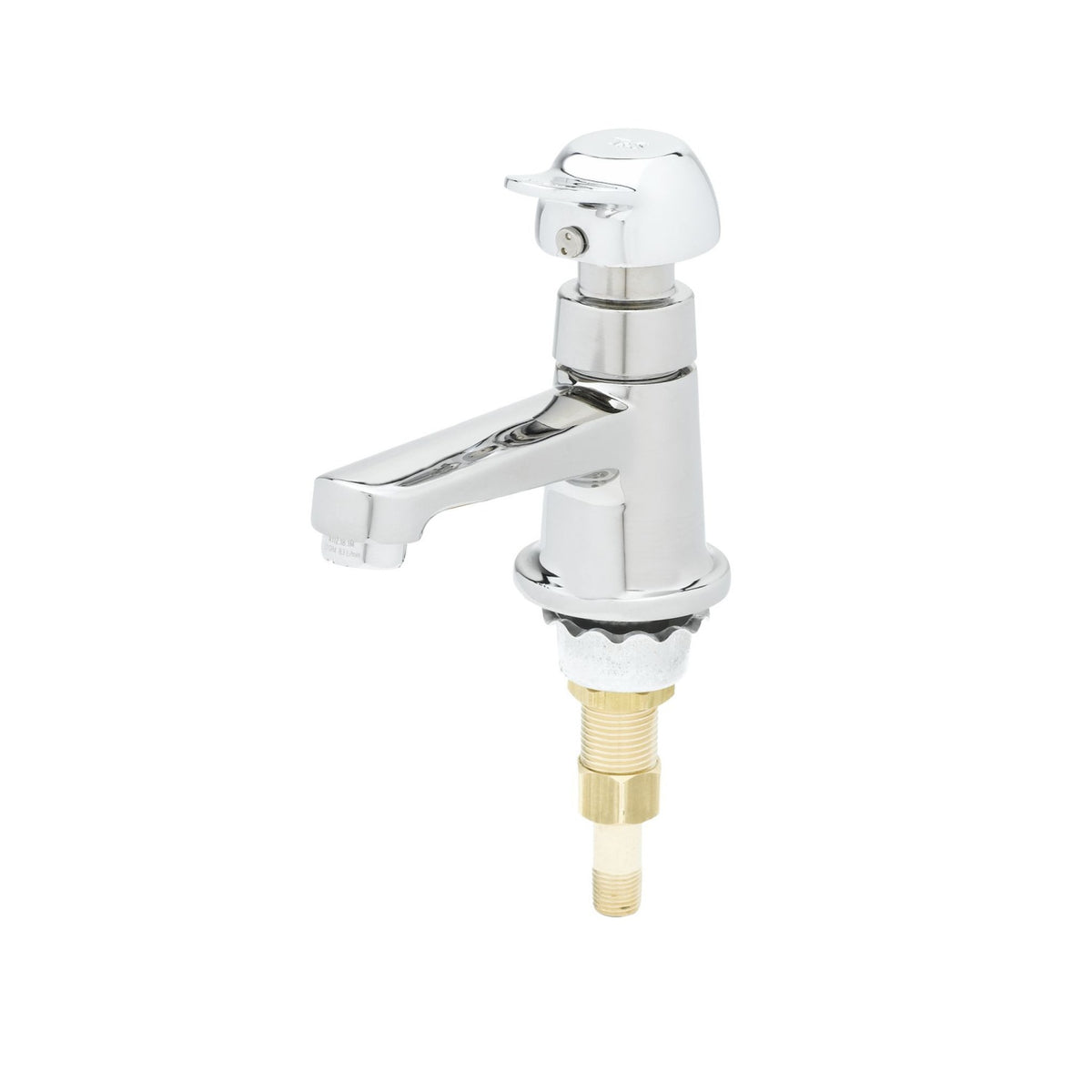

T&S Brass Metering Sill Faucet Chrome Brass Pivot Action 2.2 GPM - B-0712-PA

The T&S Brass B-0712-PA is a commercial deck-mount metering sill faucet designed for single-temperature water delivery in restaurants, schools, hospitals, and other public or institutional facilities where water conservation and controlled dispensing are a priority. The pivot action handle and self-closing metering cartridge make it a practical choice for high-traffic hand-washing or utility sink applications.

• Self-closing metering faucet with an adjustable metering cycle that releases water for 10 to 30 seconds, reducing water waste in commercial and institutional settings.

• Polished chrome plated brass body construction with a 2.2 GPM aerator and blank pivot action handle on a 1/2" NPSM male inlet; single hole, single temperature, deck mount configuration.

• Overall dimensions: 2-1/4 in. W x 4-1/16 in. D x 4-5/8 in. H.
• Spout reach is 4-1/8 inches; operating pressure range is 20 to 125 psi.

• Installs in a single deck hole with a 1/2" NPSM or 1/4" NPT connection; includes an optional 150A tailpiece and nut for 1/4" NPT hook-up.

• Fitted with an aerator that modifies water flow to reduce the volume being dispensed, supporting utility savings over time.

• Push button cap includes a vandal resistant screw, making this faucet suitable for public-access or high-traffic environments. Manufactured in the USA and covered under a 1-year limited manufacturer warranty.

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372.

• Meets ADA ANSI/ICC A117.1 requirements.

Dimensions: 2-1/4 in. W x 4-1/16 in. D x 4-5/8 in. H
