T&S Brass NSF Chrome Wall Mount Glass Filler 3/8" NPT - B-1200

The T&S Brass B-1200 is a commercial wall mount glass filler designed for restaurant beverage stations, bars, and high-volume service areas where fast, hands-free water dispensing is needed. The push-back actuation arm with instantaneous shut-off makes it a practical, operator-friendly choice for busy front-of-house and back-of-house installations.

• Wall mount glass filler built for commercial foodservice use, dispensing water into glasses, pitchers, or other containers at beverage stations and bar areas

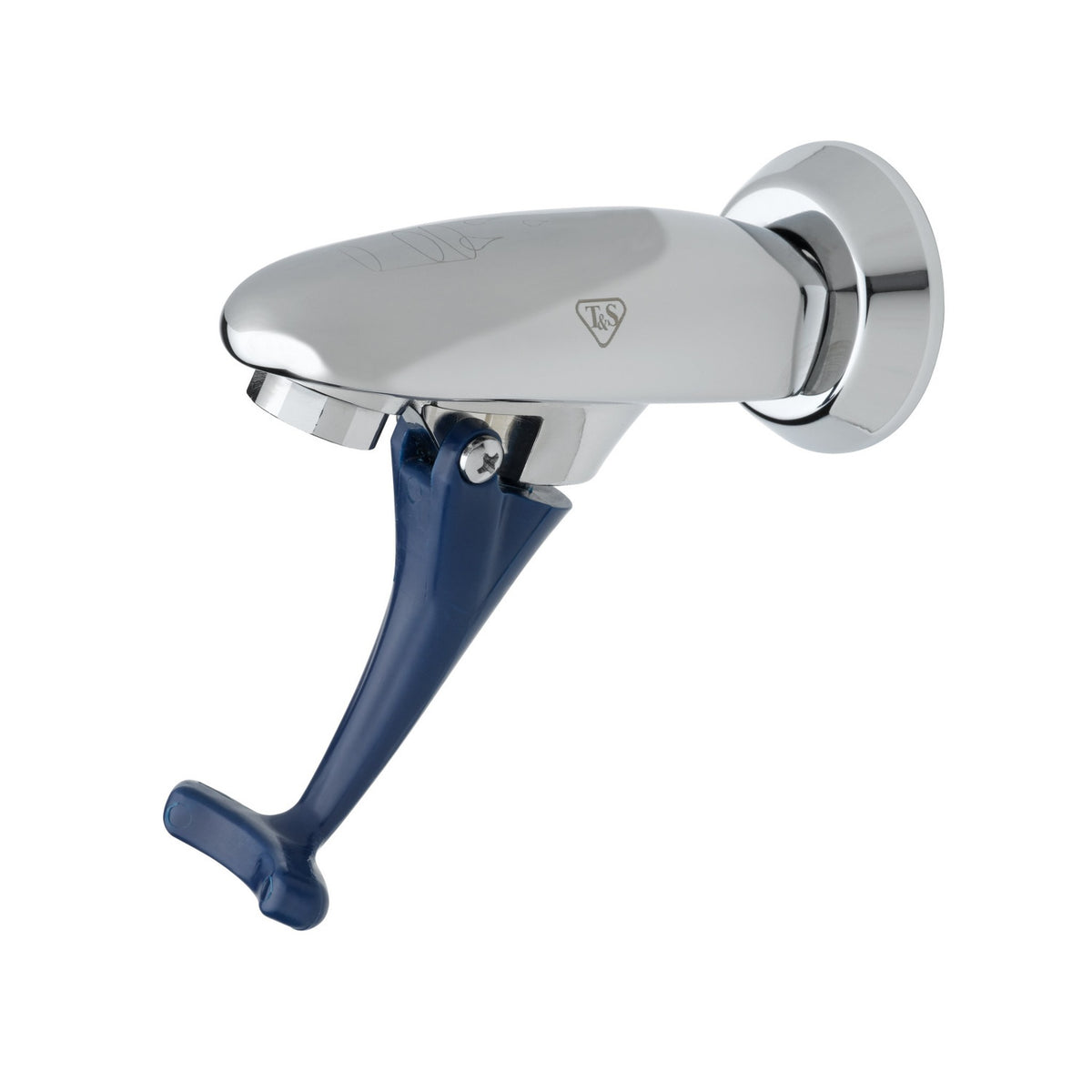

• Polished chrome plated brass body with a chrome plated metal flange and dark blue thermoplastic push-back actuation arm
• Spout length 5-3/16", faucet height 4-9/16", faucet width 2", with 3-1/16" spout clearance; flow rate adjustable from 0.25 to 2.25 GPM at 60 PSI
• Connects via 3/8" NPT female inlet; includes an adjustable 2" diameter wall flange to accommodate variable pipe-to-wall positions during installation
• Torx wrench adjustable flow outlet (wrench included) allows volume control to be set to the operation's needs; instantaneous shut-off stops flow the moment the glass is removed from the arm
• Rated for water temperatures of 40 to 140 degrees F and operating pressures of 20 to 125 PSI; lead-free construction; one year limited warranty from T&S Brass

• NSF 61 Section 9 and NSF 372 certified
• Certified to ASME A112.18.1/CSA B125.1
• Meets ADA ANSI/ICC A117.1 requirements

Dimensions: Spout Length: 5-3/16" | Faucet Height: 4-9/16" | Faucet Width: 2" | Spout Clearance: 3-1/16"
