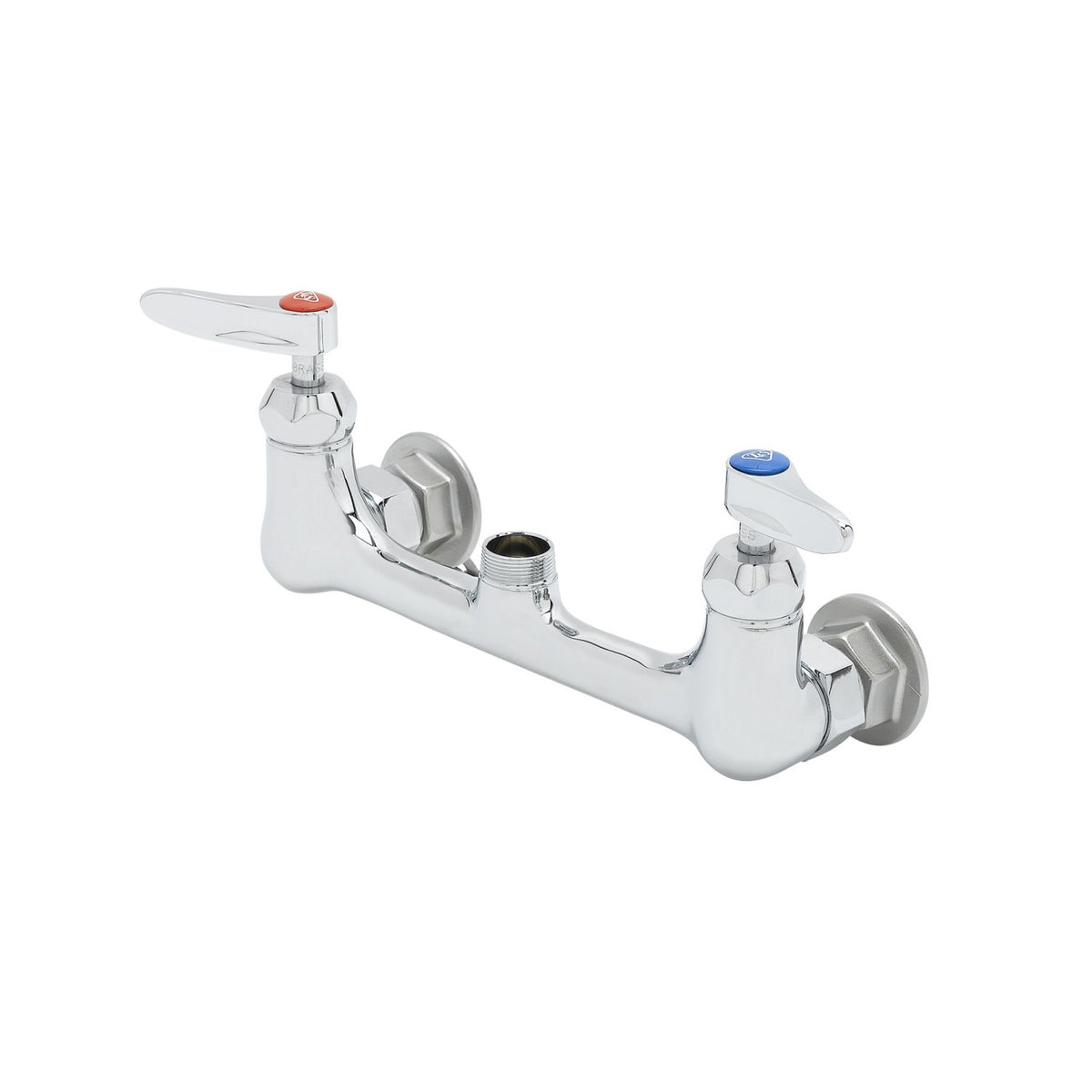

T&S Brass Wall Mount Mixing Faucet Chrome Brass NSF 8" - Less - B-0230-CR-LN

The T&S Brass B-0230-CR-LN is a commercial wall mount mixing faucet designed for pantry sinks, scullery stations, and prep areas where operators need a reliable faucet base with the flexibility to select their own nozzle. Sold less nozzle, this unit works with T&S swing nozzles purchased separately, making it a practical choice for facilities specifying custom spout reach or configurations.

• Wall mount mixing faucet for commercial foodservice and institutional sink applications, mounting on standard 8" centers with adjustable range from 7-3/4" to 8-1/4"
• Polished chrome plated brass body with chrome plated metal lever handles and color-coded indexes for hot and cold identification
• Features quarter-turn SC-Cerama ceramic cartridges with check valves to prevent cross-flow of water, an upgrade over standard compression cartridges
• Swivel outlet accepts T&S swing nozzles sold separately; a lock washer is included for rigid non-swivel installation when required
• Inlets are 1/2" NPT female eccentric with 2" flanges, accommodating standard wall supply connections and minor misalignment during installation
• Sold as a faucet base only with no spout included; operators must order a compatible T&S nozzle separately to complete the assembly

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372
• Meets ADA requirements per ANSI/ICC A117.1
• AB1953 compliant (low lead)
• Covered under T&S Brass 1-year limited warranty

Dimensions: 8" centers (adjustable 7-3/4" to 8-1/4"); Weight: approx. 4 lbs
