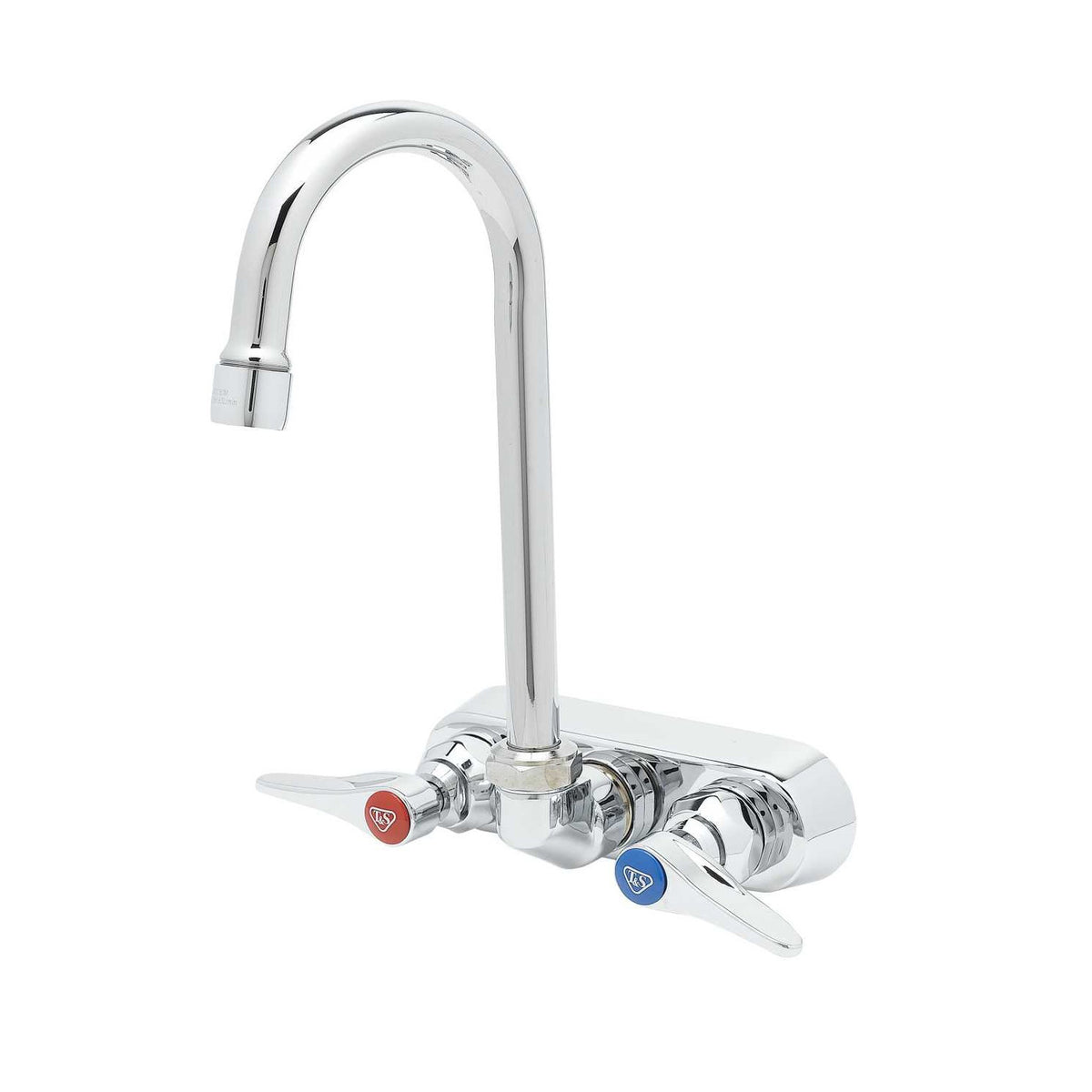

T&S Brass Workboard Faucet Chrome Brass 4" Wall Mount ADA - B-1146-02A

The T&S Brass B-1146-02A is a commercial wall mount workboard faucet built for foodservice prep stations, bar sinks, and warewashing areas where a reliable, two-handle mixing faucet with 4" centers is required. Made in the USA, it ships with an escutcheon, aerator, and tailpieces included.

• Commercial wall mount workboard faucet designed for use at prep sinks, bar sinks, and dish stations in restaurant and foodservice environments.
• Chrome-plated brass body construction with a polished finish; includes a chrome-plated escutcheon that covers and protects the wall opening around the inlets.
• 4" faucet centers with 1/2" NPT male inlets; overall dimensions are 6-1/2" W x 4-3/8" D x 9-9/16" H; faucet height with gooseneck reaches 9-9/16".
• 4-3/8" swivel gooseneck spout with a lock washer included to convert to rigid; swivel action allows the spout to serve multiple sink bowls; included tailpieces allow conversion to 1/4" NPT connection.
• Quarter-turn Eterna compression cartridges with spring checks prevent cross-flow of water; cartridge-based design allows single-component replacement without disassembling the full valve body; rated for water temperatures from 40 to 180 degrees F and pressures from 20 to 125 PSI.
• Lever handles with color-coded indexes distinguish hot and cold; 2.2 GPM aerator regulates flow rate; shipped as a complete assembly ready for installation.
• ADA compliant per ANSI/ICC A117.1; certified to ASME A112.18.1/CSA B125.1; NSF 61-Section 9 and NSF 372 certified.

Dimensions: 6-1/2" W x 4-3/8" D x 9-9/16" H
