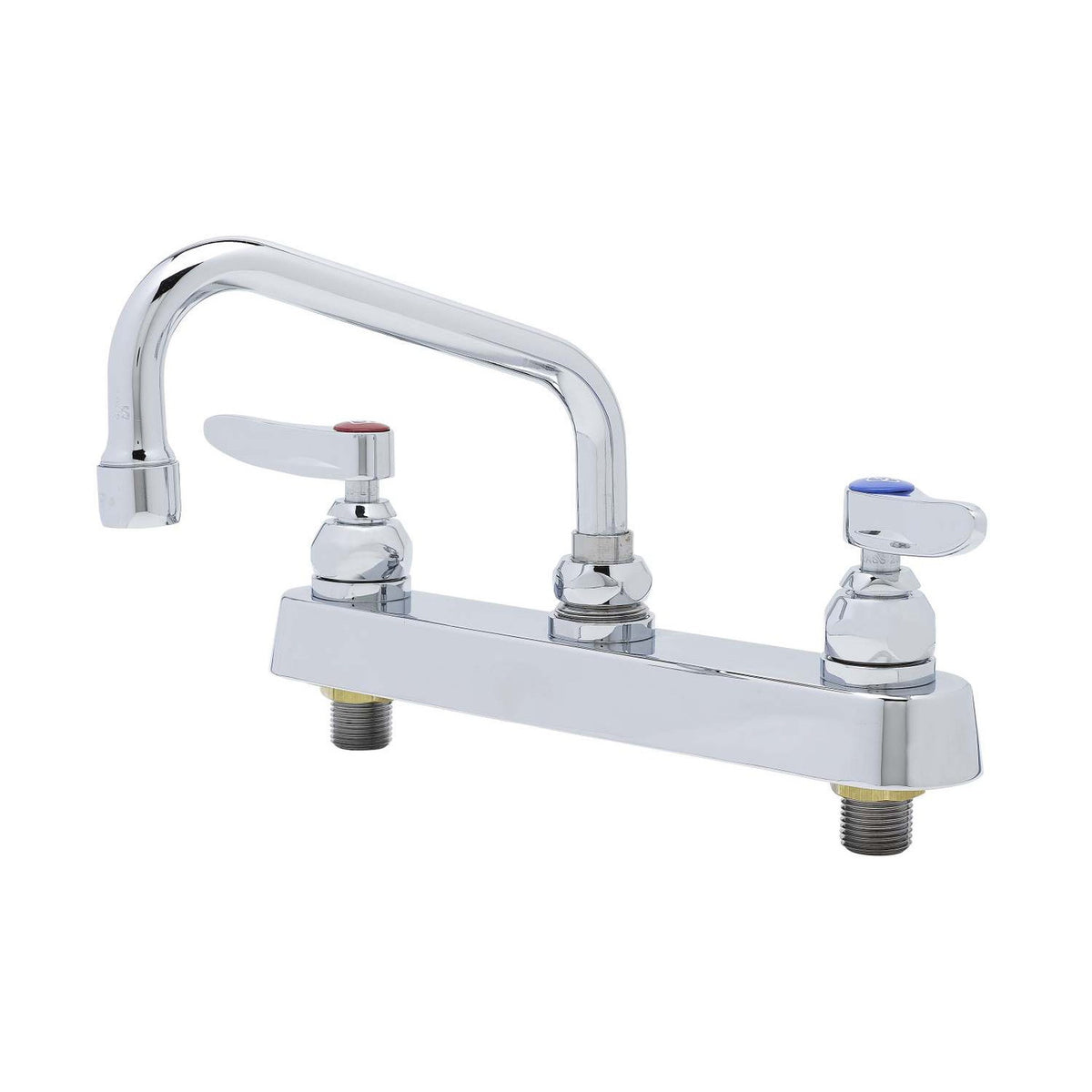

T&S Brass Workboard Faucet Chrome Brass Deck Mount 8" Centers 6" Swing - B-1120

The T&S Brass B-1120 is a commercial deck mount workboard faucet built for hand sinks, bar sinks, and prep station work surfaces in foodservice operations. It mounts on 8" centers and ships with a 6" swing nozzle, making it a direct, ready-to-install solution for operators who need a reliable, code-compliant faucet.

• Deck mount mixing faucet designed for commercial workboard and bar sink applications, with a chrome-plated brass body, lever handles, and a chrome-plated escutcheon.

• Body is chrome-plated brass with compression cartridges and spring checks to prevent cross-flow between hot and cold supply lines.

• Requires holes punched on 8" centers for installation; overall faucet width is 12-5/8" with a 6" swing spout length.

• Includes 1/2" NPT male inlets with two 150A optional tailpieces and nuts for an optional 1/4" NPT connection; swivel outlet accepts T&S swing nozzles.

• Features a 10-1/2" long x 2" wide chrome-plated escutcheon with removable seats and 1-1/2" long shanks.

• Manufactured in the USA.

Backed by a 1-year limited warranty from T&S Brass.

Certifications:

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372.

• Meets ADA ANSI/ICC A117.1 requirements.

Dimensions: Faucet Width: 12-5/8" | Spout Length: 6" | Centers: 8" | Escutcheon: 10-1/2" L x 2" W
