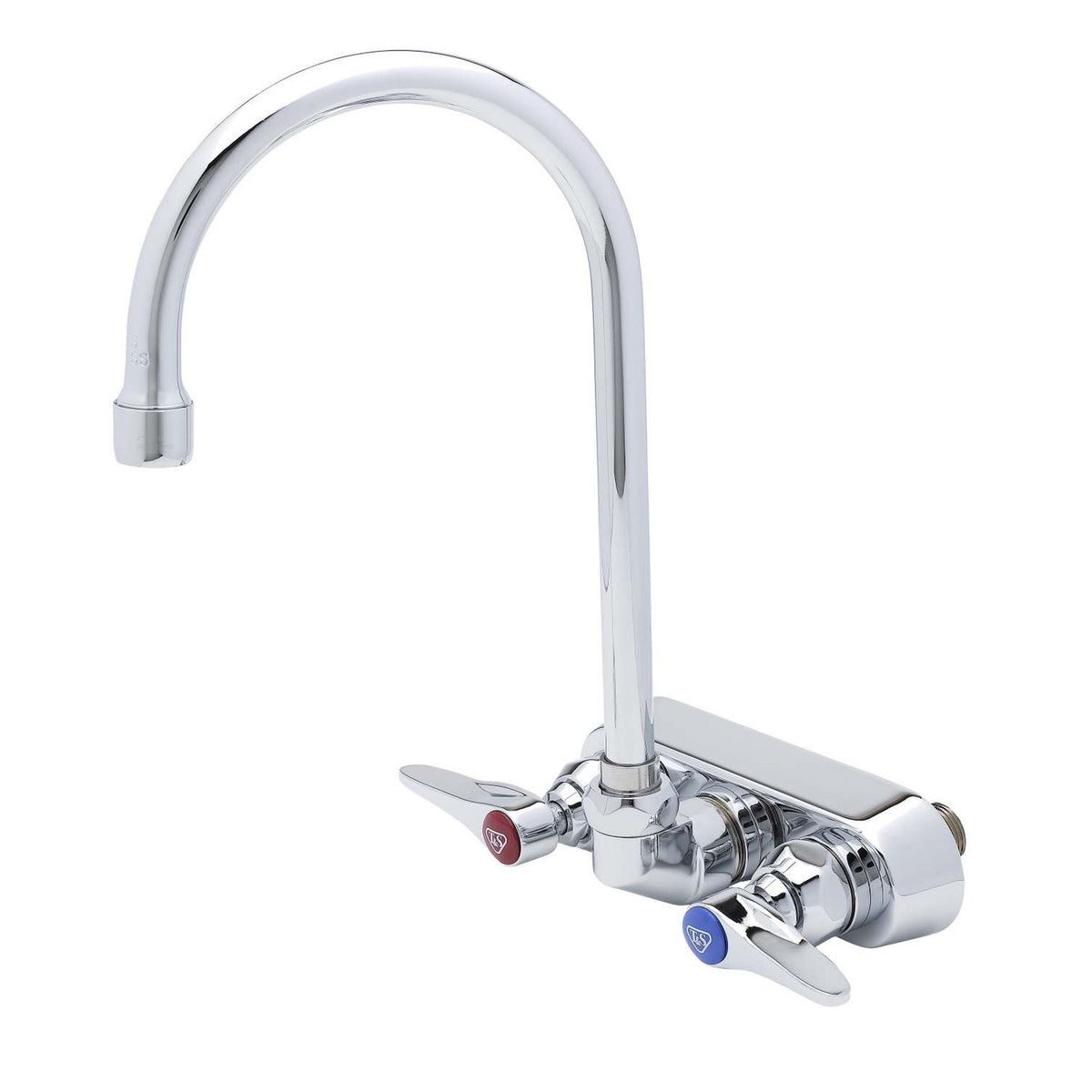

T&S Brass Workboard Faucet Chrome Brass Wall Mount 4" Centers NSF ADA - B-1146

The T&S Brass B-1146 is a commercial wall mount workboard faucet designed for bar sinks, prep sinks, and workboard applications in foodservice operations where a compact, code-compliant mixing faucet is required. Built on 4" centers with a chrome-plated brass body, it delivers reliable hot and cold water mixing with ADA-compliant controls and NSF-listed construction.

• Wall mount mixing faucet intended for commercial workboard and bar sink use, configured on 4" centers with chrome-plated brass body and chrome-plated escutcheon.

• Body, tubular spout, metal handles, and escutcheon are all chrome-plated brass; quarter-turn Eterna compression cartridges with spring checks prevent cross-flow of water.

• Faucet width is 8-5/8" with a spout reach of 5-3/4" and a spout height of 6-1/4"; weighs 4 lbs.

• Connects via 1/2" NPT male inlets; includes tailpieces and nuts to convert to 1/4" NPT male connections.

Installation requires two 1" mounting holes.

• Flow rate is 2.2 GPM at standard pressure; operating pressure range is 20-125 psi and temperature range is 40-140°F.

The gooseneck swivels to accommodate buckets and larger vessels and converts to rigid with an included lock washer.

• Manufactured in the USA and covered under a 1-year limited warranty.

Certifications:

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372.

• Meets ADA ANSI/ICC A117.1 requirements.

• Also holds City of Los Angeles approval and Commonwealth of Massachusetts BAA/ARRA certification.

Dimensions: 8-5/8" W x 5-3/4" spout reach x 6-1/4" spout height
